Chapter 30 Congenital and Developmental Anomalies of the Orbit MICHAEL T. YEN, PATRICK M. FLAHARTY and RICHARD L. ANDERSON Table Of Contents |
LOCALIZED ORBITAL ANOMALIES CRANIOSYNOSTOSIS FACIAL CLEFTS OTHER ANOMALIES OF THE ORBIT REFERENCES |
The various patterns of congenital facial and orbital anomalies have been
recognized for many years. However, recent advances in gene mapping
and surgical technique have dramatically changed our understanding as
well as our approach to the management of these problems. Many congenital
anomalies of the orbit are associated with more extensive defects
that involve other structures of the face and skull. Although the orbital
surgeon is well equipped to handle many localized problems of the
orbit, more extensive anomalies require a multidisciplinary team, including
craniofacial surgeons, neurosurgeons, pediatricians, orthodontists, ocularists, and
others. Congenital anomalies can affect the orbit in two ways. First, there can be a primary defect in the structural architecture of the bony orbit. This type includes defects of the anterior cranial base and facial skeleton. Alternatively, defects in the development of the globe and orbital soft tissues can induce secondary changes in the bony orbit. Moss and Salentijn's theory of the functional matrix proposes an ongoing interdependence between the growth and development of orbital soft tissues and the surrounding bone.1 Most congenital and developmental anomalies of the orbit can be classified in one of three categories: localized anomalies of the orbit; craniosynostosis, or deformities of premature cranial suture closure; and facial clefting syndromes. Several other congenital anomalies, which do not fit into any of these categories, are discussed separately. |
LOCALIZED ORBITAL ANOMALIES | ||||
Localized anomalies of the orbit and periorbital adnexa are the most common
congenital defects seen in the routine practice of ophthalmology. These
defects may affect other facial and intracranial structures, and
it is extremely important for the ophthalmologist to identify the full
extent of what may initially appear to be an isolated problem prior
to any surgical intervention. MICROPHTHALMOS AND ANOPHTHALMOS True anophthalmos is a rare condition that results from failure of development or complete regression of the optic vesicle. This condition may be clinically indistinguishable from severe microphthalmos, which results from incomplete invagination of the optic vesicle or closure of the embryonic fissure. The term clinical anophthalmos has been used to describe patients who have no clinical or radiographic evidence of any ocular remnant, although true anophthalmos can only be verified after careful histologic sectioning of the orbital tissues. Anophthalmos and microphthalmos are usually unilateral and may be associated with a variety of craniofacial and systemic anomalies, including orbital hypoplasia, facial clefts, basal encephalocele, hemifacial microsomia, mandibulofacial dysostosis, cardiac anomalies, polydactyly, and mental retardation. When they occur unilaterally, they also can be associated with anomalies of the contralateral “normal” eye, including cataract, cornea1 opacities, microphthalmos, coloboma, epibulbar dermoids, and nystagmus. Anophthalmos and severe microphthalmos frequently are associated with contracted conjunctival fornices, phimotic eyelids, and generalized hypoplasia of the periocular soft tissues (Fig. 1). When soft tissue contractures occur, the early use of conformers is essential to expand these tissues.2 This treatment should be instituted in the first month of life, with progressive enlargement of the conformer over time to achieve maximum expansion of the conjunctival fornix. Unfortunately, this treatment usually does not stimulate adequate orbital bone growth, and unilateral microphthalmos and anophthalmos may be associated with secondary orbital hypoplasia (Fig. 2). Serial implantation of progressively larger orbital implants or placement of expansile orbital implants has been advocated to stimulate bony orbital development.3,4
CYSTIC ANOMALIES OF THE ORBIT Many congenital cystic structures may arise from or involve the orbit. Some cystic structures, such as meningoencephaloceles or mucoceles, result from defects in the bony sutures of the cranial skeleton, allowing herniation of adjacent structures into the orbit. Other cystic structures, such as dermoid cysts, teratomas, and epithelial cysts, result from developmental anomalies of the orbital soft tissues. Most isolated orbital cysts have a subtle clinical presentation at birth, although some may present with extreme proptosis (Fig. 3). Ultrasonography can aid in the prenatal detection and monitoring of large orbital cysts.5
Dermoid cysts are the most common congenital orbital anomalies and represent developmental choristomas that are believed to arise from ectodermal nests pinched off by the fusion of bony sutures around the orbit. These cysts often originate from the frontozygomatic suture temporally but can also be seen nasally, arising from the frontonasal and frontolacrimal sutures; they rarely occur deep in the orbit.6 They commonly present during the first decade of life as a well-circumscribed, firm, rubbery subcutaneous mass just below the temporal eyebrow. Deeper dermoids can remain asymptomatic for many years, often presenting later in life as a slowly expanding orbital mass. Complete excision of these encapsulated lesions is the preferred treatment. Rupture of the cyst from trauma or during surgery may result in severe orbital inflammation (Fig. 4).
|
CRANIOSYNOSTOSIS | |||
Craniosynostosis implies premature fusion of the bony sutures of the skull. These
craniofacial anomalies usually display a sporadic inheritance
pattern, although several well-recognized syndromes have distinct
inheritance patterns, such as the autosomal dominant pattern of
Crouzon's disease. Although premature suture fusion was believed
to be the primary pathologic process, genetic mapping and molecular studies
suggest that this early fusion may be a result of altered cytokine

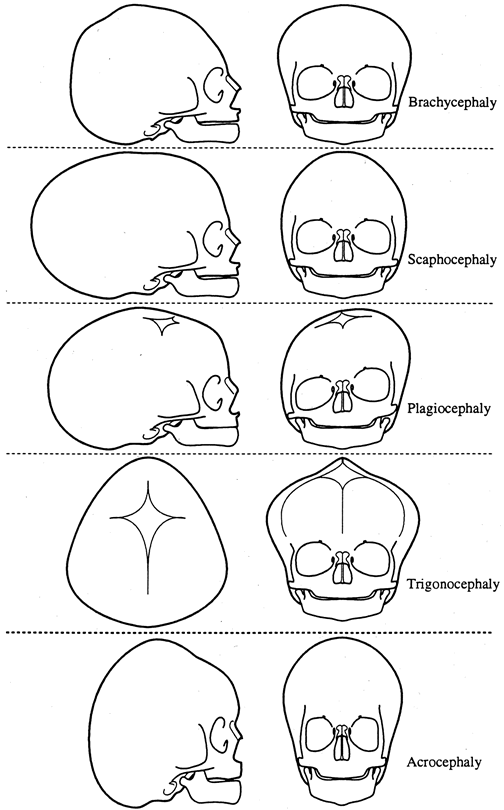

and extracellular matrix component expression.7 The phenotypic pattern of deformity is a direct result of the sutures involved (Fig. 5). Scaphocephaly is an elongated, narrow cranium associated with premature fusion of the sagittal suture. Brachycephaly is a short, wide cranial vault associated with bilateral coronal synostosis. Plagiocephaly results from premature closure of one coronal suture, leading to prominent orbital asymmetry (Fig. 6). A flattened, recessed forehead occurs on the affected side, and persistent growth of the contralateral side results in frontal bossing, inferolateral orbital dystopia, and a prominent occiput. This deformity is reminiscent of hemifacial microsomia. Trigonocephaly is a triangular deformity of the anterior cranial fossa that results in medial displacement of the orbits (hypotelorism) (Fig. 7). Acrocephaly results from multiple suture closure, including bicoronal synostosis. Typically, there is excessive skull height and a pointed head.
|
CROUZON'S DISEASE | |
In 1912, Crouzon described the froglike facies characteristic of this distinct
anomaly, and his name has been associated with this syndrome ever
since (Fig. 8). Most cases of this autosomal dominant disease have been mapped
to the fibroblast growth factor receptor 2 gene located on chromosome 10.8 Ocular findings include exophthalmos, hypertelorism, strabismus, extraocular
muscle agenesis or anomaly, nystagmus, papilledema, and optic atrophy. A
variable pattern of suture closure is seen, including coronal, sagittal, and
lambdoid sutures. The deformities of the orbit and cranial
vault are in part a result of the compensatory expansion of the
cranium from increased intracranial pressure. Forward displacement of
the greater wing of the sphenoid bone results in a shortening of the lateral
orbital wall and a dramatic reduction in orbital volume. To compound
the problem, there is also inferior displacement of the orbital
roof from anterior cranial fossa expansion and shortening of the orbital
floor from maxillary hypoplasia. Tessier estimated that these defects
account for a 6-cc reduction in orbital volume, or approximately 20% to 25% of the total volume of the orbit.9
|
APERT'S SYNDROME | |
Apert's syndrome is similar to Crouzon's disease, although the
craniofacial deformities are usually more severe. The genetic defect
has also been localized to the fibroblast growth factor receptor 2 gene.7 Ocular findings may include brachycephaly, exophthalmos, hypertelorism, strabismus, extraocular
muscle agenesis or anomaly, and maxillary hypoplasia. The
distinguishing feature of Apert's syndrome is syndactyly
of the hands and feet (Fig. 9). Ptosis, an antimongoloid slant to the intrapalpebral fissure, and
oculomotor palsies also can be seen in Apert's syndrome.9
|
TREATMENT | |
Early intervention in craniosynostosis is necessary not only to reduce
the intracranial pressure and permit normal visual and mental development, but
also to achieve a satisfactory cosmetic result. The techniques
employed include a variety of frontal and facial bone advancements designed
to expand the intracranial volume and improve the cosmesis of
the facial skeleton. Traditionally, Le Fort III osteotomies and bone grafting
have been used to achieve midface advancement to address the maxillary
hypoplasia and shallow orbits that develop in craniosynostosis (Fig. 10). More recently, internal distraction devices have allowed for a
more gradual but safer and less morbid technique for midface advancement.10 If detected in the neonatal period (before 6 months of age), many
cases of craniosynostosis can be successfully managed with small-incision
endoscopic craniectomies and external skull molding devices.11
|
FACIAL CLEFTS | |||
The confusing array of skeletal and soft tissue deformities that constitute
the facial clefting syndromes were brought to order in 1976, when
Tessier developed an anatomic classification for this diverse group of

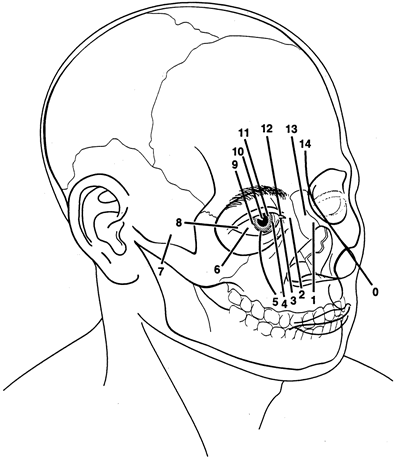

congenital anomalies.12 The Tessier classification numbers the clefts based on their location
in relation to the orbit (Fig. 11). Facial clefts range from small, isolated soft tissue defects to
severe, disfiguring craniofacial deformities (Fig. 12).13
Tessier cleft 0-14, a true median cleft, is associated with orbital hypertelorism and meningoencephalocele (Fig. 13). Clefts 1 and 2 are associated with telecanthus from involvement of the soft tissues of the medial canthus but spare the lacrimal system and eyelids. Clefts 3 and 4 involve the inferomedial orbit and lower eyelid medial to the punctum. Disruption of the nasolacrimal system is associated with bony defects between the orbit, maxillary sinus, and nasal cavities, with inferior displacement of the globe.14 Cleft 5 is associated with a defect in the inferolateral orbital rim and floor, a lateral lower eyelid cleft, and frequently microphthalmia. Features of clefts 6, 7, and 8 are seen in Treacher Collins syndrome, Goldenhar's syndrome, and hemifacial microsomia. Ocular abnormalities may include a cleft or antimongoloid slant of the lateral lower eyelid, hypoplasia of the maxilla with downward slanting of the lateral orbital floor, and hypoplasia or absence of the lateral orbital wall. Cleft 9 is characterized by defects in the superolateral orbital rim and the lateral one-third of the upper eyelid, and distortion of the lateral canthus. A central cleft of the eyebrow, upper eyelid, supraorbital rim, and orbital roof characterize cleft 10. Fronto-orbital meningoencephaloceles are common (Fig. 14). Cleft 11 is characterized by defects in the medial aspect of the upper eyelid and brow, but no bony defect in the supraorbital rim. Cleft 12 is associated with telecanthus, hypertelorism, and a defect at the medial root of the eyebrow. Clefts 13 and 14 are characterized by hypertelorism with sparing of the orbital soft tissues.
|
HYPERTELORISM |
Orbital hypertelorism is defined as an abnormally wide distance between
the orbits. It is not a syndrome but a physical finding that is found
in a variety of craniofacial anomalies, including facial clefts. Hypertelorism
implies an increased interpupillary distance. This condition
should not be confused with telecanthus, which is defined as an increased
distance between the two medial canthal angles with a normal interpupillary
distance. Telecanthus is classically seen with traumatic disinsertion
of the medial canthal tendons. In Waardenburg's syndrome, it
is associated with heterochromia iridis, a white forelock, and
congenital deafness. Hypertelorism is often associated with a variety of facial clefts, craniosynostosis, and meningoencephaloceles. The normal distance between the orbits is roughly 16 mm at birth and increases to 25 to 28 mm in adults.15 A widening of the anterior ethmoid air cells is believed to be the main anatomic defect responsible for primary orbital hypertelorism, resulting in an increase in soft tissue, bone, and cartilage between the medial canthi.16 The posterior ethmoid air cells and the sphenoid bone are usually normal, and as a result, the optic foramina are usually normal as well. The cribriform plate is not widened but can be depressed 10 mm below its usual level, making the extracranial approach to the correction of this defect hazardous. The angle between the central axes of the orbits is normally 45°. In orbital hypertelorism, the axes of the orbits are more divergent, measuring up to 60° in severe cases. Surgical correction of hypertelorism usually entails a combined intracranial and extracranial approach. All four walls of each orbit are osteotomized to free them from the frontal, zygomatic, maxillary, nasal, and sphenoid bones. The excessive intervening tissues are removed, and the orbits are brought closer together in the midline. The resultant bone gaps are filled with bone grafts. |
ORBITAL DYSTOPIA |
Orbital dystopia is defined as a vertical misalignment of the globes. Like hypertelorism, orbital dystopia is a physical finding with a variety of etiologies, not a distinct clinical syndrome. Congenital anomalies of orbital development are the most common cause of orbital dystopia. These anomalies include craniosynostosis, hemifacial microsomia, and orbitofacial clefts. Acquired orbital dystopia may occur as a result of facial and orbital fractures or mass lesions that arise from the orbit, periorbital sinuses, and adjacent structures. Progressive orbital dystopia of unknown etiology requires a thorough evaluation to exclude the presence of mass lesions encroaching on the ocular structures. |
MENINGOENCEPHALOCELE |
Congenital defects in the bony sutures of the cranial skeleton may result in a herniation of brain and meninges into the orbit, known as meningoencephalocele (see Fig. 13). This defect is frequently associated with a variety of facial clefts and usually occurs medially between the sutures of the frontal, ethmoidal, lacrimal, or nasal bones. A soft, pulsatile mass that bulges with coughing and Valsalva maneuvers appears in the upper medial canthal area during the first years of life. Rarely, a congenital dehiscence in the greater wing of the sphenoid bone may also result in a slowly progressive pulsatile exophthalmos that presents later in life. |
HEMIFACIAL MICROSOMIA AND OCULOAURICULAR DYSPLASIA | |
Hemifacial microsomia is a complex disorder of unknown etiology that is
characterized by facial asymmetry with ipsilateral abnormalities of the
middle ear, mandibular ramus, and condyle. Dystopia may result from
hypoplasia of the orbital bones. Associated systemic defects can involve
the heart, kidneys, and limbs. Oculoauriculovertebral dysplasia (Goldenhar's syndrome) is a variant of hemifacial microsomia characterized by unilateral malformations of the eye, ear, and malar and vertebral structures (Fig. 15). Soft tissue findings include epibulbar dermoids, orbital lipodermoids, eyelid colobomas, preauricular appendages, and aural fistulas. Marked facial asymmetry can occur due to unilateral hypoplasia of the zygoma, mandible, and chin.
|
MANDIBULOFACIAL DYSOSTOSIS |
Mandibulofacial dysostosis (Treacher Collins syndrome, Franceschetti syndrome) is a bilateral, autosomal dominant condition that results from abnormal development of structures derived from the first and second branchial arches (Fig. 16). The genetic defect for Treacher Collins syndrome, TCOF1, has been isolated to chromosome 5, and the gene product, treacle, has been identified as a nucleolar protein.17,18 The exact function of treacle, however, has not yet been determined. The craniofacial anomalies include hypoplasia of the maxilla, mandible, and zygoma associated with a variety of soft tissue malformations. These malformations include underdevelopment of the midfacial musculature, lower eyelid colobomas, inferior displacement of the lateral canthi (antimongoloid slant), inferior punctal agenesis, and blepharoptosis. Additional ocular anomalies may include high myopia, dermolipoma, lens subluxation, and secondary glaucoma.19 |
PROGRESSIVE HEMIFACIAL ATROPHY |
Progressive hemifacial atrophy (Romberg's syndrome) is a rare disorder characterized by progressive atrophy of the skin, subcutaneous tissue, muscle, cartilage, and bone, usually involving only one side of the face. The genetic basis of this disorder has not been elucidated. This condition has been associated with a variety of ocular findings, including progressive enophthalmos, heterochromia, uveitis, restrictive strabismus, papillitis, retinal vasculitis, oculomotor nerve palsy, Horner's syndrome, Fuchs's syndrome, and Duane's retraction syndrome.20 Surgical intervention has been aimed at masking the atrophy with the use of various flaps, grafts, and implants.21,22 |
PIERRE ROBIN SEQUENCE |
In 1923, Pierre Robin described a condition characterized by micrognathia, glossoptosis, cleft palate, and respiratory distress from airway obstruction at the level of the tongue. Although the exact genetic defect for this disorder has not yet been identified, recent studies have localized a candidate locus to the long arm of chromosome 2.23 Associated ocular findings may include microphthalmia, congenital glaucoma, and high myopia with associated retinal detachments. |
OTHER ANOMALIES OF THE ORBIT | |||

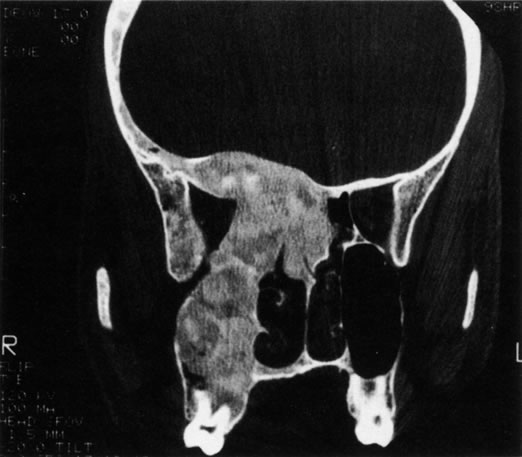

FIBROUS DYSPLASIA Fibrous dysplasia is a benign disorder characterized by an arrest of bone maturation that results in immature bone and osteoid in a cellular fibrous matrix. This congenital disease usually becomes clinically apparent in children and young adults. Fibrous dysplasia can extensively involve the facial bones and skull.24 The maxillary, frontal, and sphenoid bones are most commonly involved. Maxillary bone involvement can cause nasolacrimal duct obstruction. Involvement of the frontal and sphenoid bones may result in orbital asymmetry from contour deformities, vertical dystopia, and exophthalmos (Fig. 17). Radiographically, fibrous dysplasia appears as an expansile bone lesion with a characteristic ground-glass appearance (Fig. 18). Additional ocular complications include compressive optic neuropathy, oculomotor nerve palsy, and trigeminal neuralgia.25 Involvement of the sphenoid bone may result in narrowing of the optic canal, with secondary compressive optic neuropathy. Definitive treatment entails unroofing the optic canal by way of a transcranial approach, although high-dose steroids can be used as a temporizing measure.
Fibrous dysplasia is not a true neoplasm; however, there is a small incidence of malignant degeneration, usually into osteogenic sarcoma. Treatment options range from careful observation to aggressive debulking of the diseased bone, with subsequent reconstruction. Recent advances in craniofacial surgery, including cranial bone grafting with mini- and microplate fixation, have made the latter approach more appealing. ANENCEPHALY Anencephaly, either partial or total absence of the brain, is a severe congenital birth defect incompatible with life. This dramatic deformity results from a failure of forebrain development. The vault of the skull is absent, and the forebrain consists of a degenerated mass of glial tissue. The orbits are shallow and tilted upward. The eyes are fairly well developed, but the optic nerves, when present, taper down to a loose mass of glial tissue at the optic canal. CYCLOPIA/SYNOPHTHALMOS True cyclopia is a rare congenital anomaly characterized by a single eye situated in a single median orbit. Synophthalmos, which is also rare but much more common than true cyclopia, occurs when paired ocular structures are found in a single median orbit (Fig. 19). These disorders result from a failure of lateralization of the midline facial structures. |
