Chapter 2 Molecular Physiology and Pathology of the Retina STEPHEN H. TSANG and PETER GOURAS Table Of Contents |
We have made great progress over the past decade in understanding both the mechanism of phototransduction and the neurocircuitry of the retina. Molecular biology and genetics are revolutionizing the way we study, diagnose, and eventually treat retinal disease by providing important insights into retinal physiology and pathophysiology. |
FUNCTION OF THE RETINA |
The retina performs two major functions: it transduces light into neural signals, and it transmits these signals in a language usable by our visual brain. Patterns of light and darkness on the photoreceptor mosaic are transformed by retinal circuits that lead to repetitive discharges from a two-dimensional array of ganglion cells. There is no feedback from our brain to the retina, making these ganglion cell responses stereotypical, depending only on the retinal image and their presynaptic circuitry. |
PHOTOTRANSDUCTION OF RODS |

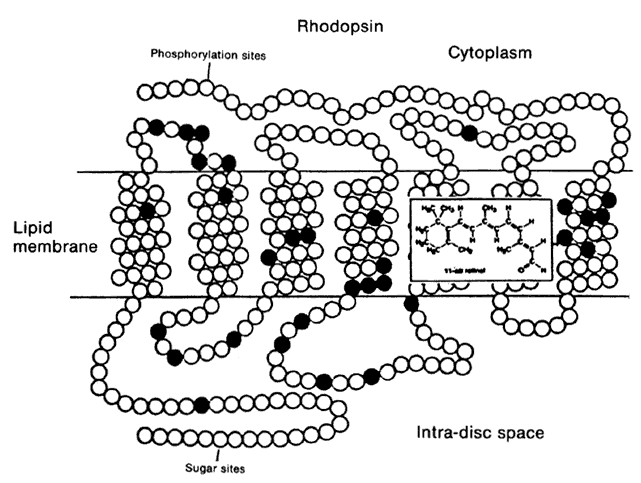

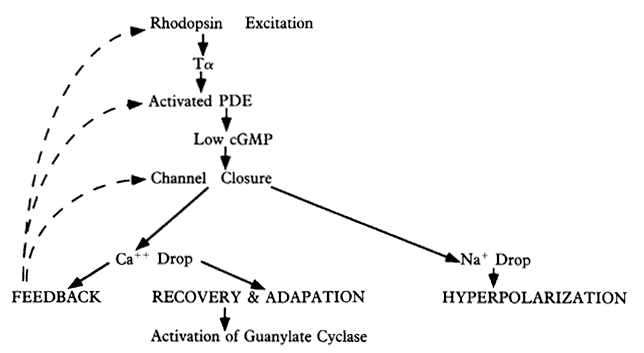

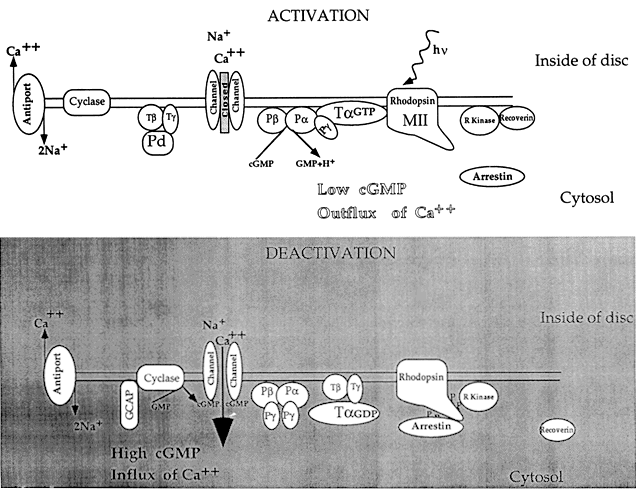

ACTIVATION Since 97% of the photoreceptors in cows and frogs consist of rods, research on the physiology and biochemistry of rods has been more approachable technically than has research on cones. With the advent of molecular cloning, however, the phototransduction components of cones are being isolated as well. In rods, phototransduction1,2 starts with the absorption of light by rhodopsin, a seven-loop transmembrane G-protein-coupled receptor containing an 11-cis chromophore covalently linked to a lysine side chain by a protonated Schiff base (Fig. 1). Isomerization by light of the 11-cis retinal to the all-trans retinal form leads to conformational changes in the opsin, producing the activated form metarhodopsin II. Each metarhodopsin II molecule activates hundreds of transducins (heterotrimeric G-proteins [Tαβγ]),3 to exchange guanosine diphosphate (GDP) for guanosine triphosphate (GTP) (Fig. 2). The transducin (Tα)-GTP molecule dissociates from Tβγ and binds to the inhibitory γ-subunits of a cGMP-phosphodiesterase (PDE; a heterotetrameric protein),4,5 thus removing the inhibition that the two γ-subunits exert on the catalytic α- and β-subunits of PDE.3–7 It is debatable whether Tα actually binds and removes PDEγ subunits from PDEαβ(γ)27 or whether it binds and remains associated with PDEαβ as a complex.6,8 In frog photoreceptors, Tα activation of PDE results in release of PDEγ from the membrane-bound PDE. In bovine photoreceptors, however, PDEγ remains bound to PDEαβ upon Tα activation.9 The resulting activation of PDEαβ is profound: light-activated PDE is nearly 300 times more active than PDE in the basal level.10 Hydrolysis of cGMP by activated PDE lowers the levels of this cyclic nucleotide,11 which leads to closure of cGMP-gated Na+ /Ca+ + channels on the plasma membrane of the outer segment (see Fig. 2; Fig. 3). This reduces the entry of Na+ and Ca+ + into the cytoplasm, causing the entire rod to hyperpolarize, and thus curtails the release of the rod's transmitter, glutamate, at its synaptic terminal; intracytoplasmic reduction of Ca+ + also reduces transmitter release. DEACTIVATION The termination of the photoresponse requires inactivation of the photoexcited rhodopsin and transducin subunit, Tα, as well as reassociation of PDEγ to the PDEαβ catalytic core; it also involves activation of a guanylate cyclase to synthesize more cGMP. Tα possesses intrinsic GTPase activity for its own inactivation, which is accelerated upon binding to PDE.10 Photoactivated rhodopsin is inactivated by phosphorylation of serine and threonine residues at its carboxyl tail by a rhodopsin-specific kinase. Phosphorylated rhodopsin binds arrestin (also known as S-antigen) more efficiently than Tα. Arrestin inhibits the removal of phosphates from rhodopsin by a phosphatase 2A.12 Thus the amount of active (dephosphorylated) rhodopsin available to activate Tα is diminished. In minutes, rhodopsin is regenerated by the replacement with 11-cis retinal, released from arrestin, and dephosphorylated by phosphatase 2A (see Fig. 3). ADAPTATION The light-induced drop in Ca+ + influx also leads to adaptation of the photoreceptor to constant light.13 Intracellular Ca+ + inhibits the guanylate cyclases Ret GC-1 and Ret GC-2.14,15 When Ca+ + is reduced, these two enzymes are stimulated to form more cGMP, thus counteracting the reduction in cGMP by the photoresponse (see Fig. 2). In low Ca+ + concentrations, Ret GC-1 and Ret GC-2 are also stimulated by guanylate cyclase-activating proteins (GCAP-1/p20 and GCAP-2/p24) that possess Ca+ + binding sites. Ca+ + also appears to influence the half-life of photoexcited rhodopsin16 as well as its catalytic action. The rate of rhodopsin phosphorylation is inversely proportional to Ca+ + concentration; this Ca+ + sensitivity of rhodopsin kinase phosphorylation is mediated by recoverin. Prolonged light induces a decrease in cytoplasmic Ca+ + concentration as well as a cessation in recoverin inhibition of rhodopsin kinase. In both cases, the light-induced decrease in intracellular Ca+ + concentration leads to a desensitization and speeding up of the response. In addition, Ca+ + influences the cGMP-gated Na+ /Ca+ + channels, which provide the ionic current of the photoresponse.17 The cGMP-gated Na+ /Ca+ + channel is composed of a functional α-subunit and a structurally similar β-subunit. At high levels of Ca+ + , the β-subunit binds to calmodulin, which then increases the channel affinity for cGMP. Ca+ + may also affect photoreceptor inactivation and recovery through the regulation of Ca+ + -sensitive members of the protein kinase C family, which can phosphorylate rhodopsin, Tα, Tβ, arrestin, and PDEγ. Phosphorylation of PDEγ occurs at threonine 35, and this enhances the inhibitory action of PDE on the catalytic PDEαβ-subunit. When PDEγ remains attached to PDEαβ, the threonine 35 site appears to be less accessible to phosphorylation because free PDEγ is a better substrate for the kinase when separated from PDEαβ(γ)2.18 When light activates the transduction cascade PDEγ complexed with Tα-GTP can dissociate from the catalytic PDEαβ-subunits; after GTP hydrolysis, free PDEγ becomes phosphorylated. The binding of phosphorylated PDEγ to reform the tetrameric PDE holoprotein then results in greater inhibition of the catalytic action. Therefore, light adaptation increases the free pool of PDEγ and consequently the phosphorylated subspecies that can exert greater inhibition of the PDE enzyme. |
PHOTOTRANSDUCTION OF CONES |
Qualitatively, cone phototransduction is similar to that of rods; however, cones
do differ in a number of ways, the most significant of which
is their ability to adapt to the brightest ambient lights (e.g., midday sunlight). The rod system is much more sensitive than that of
the cones, but rods are virtually incapable of adapting: they saturate
at light levels where cones are just beginning to function well. Light adaptation decreases a photoreceptor's sensitivity, which can be an advantage when there is a plethora of photons, but it also speeds up and increases the temporal accuracy of the photoresponse, which is even more of an advantage. Sensitivity and response speed are inversely coupled in the light-adapting retina, and this is especially apparent for cone vision. The most logical explanation for this behavior is negative feedback exerted biochemically in the cone's photoresponse and neurally by horizontal cell feedback inhibition. Several phenomena play a more physical role in light adaptation, influencing sensitivity but not response speed. For example, increasing light levels bleach away photopigments in the photoreceptors, making the latter insensitive. There is also decreased sensitivity in the detection of an additional signal in the presence of an increasing level of background light (“noise”). Negative feedback, however, begins only in the biochemistry of the photoresponse. If the speed at which the light-activated molecules (opsins, transducins, PDEs) of the phototransduction cascade are inactivated is progressively increased with stronger ambient lights, then the time scale and temporal accuracy of the photoresponse would increase correspondingly. This is undoubtedly what happens in the cone photoresponse (see Fig. 2). Molecular cloning of cone transduction components shows that cone op sins,19 transducins,20,21 PDEα,22 PDEγ,23 and arrestin are similar to the rod homologues. |
NEUROCIRCUITRY OF THE RETINA |

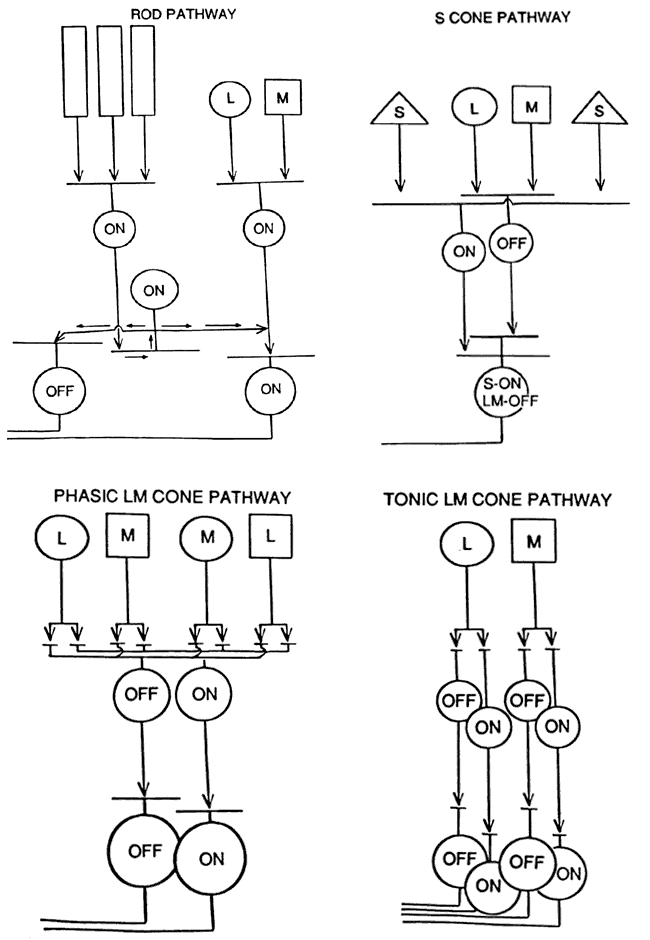

The retina consists of a combination of several quasi-independent retinas: (1) a
rod retina, which participates neither in high resolution nor
in color vision; (2) an S-cone retina, which does not participate in
high resolution, but does participate in color vision; and (3) the dominant
L-M cone retina, which participates in both high resolution and
color vision. THE ROD SYSTEM Although the rods outnumber the cones about 20 fold, they are almost vestigial, being seldom used effectively by members of modern society because of artificial illumination. Defects in the rod system are important to detect, however, because they often herald the subsequent or concomitant destruction of cones, which leads to blindness. The rods transmit their signals to a homogeneous population of rod bipolars called on-bipolars; that is, they are depolarized whenever the rods are hyperpolarized by light (Fig. 4). The rod bipolars synapse on a rod-amacrine interneuron, which subsequently transmits the rod signals to ganglion cells. The ganglion cells are the only retinal structures that rods share directly with cones. The rod system is kept independent of the cones because its signals tend to be out of phase in both space and time with those of cones. It is therefore possible for a person to have major defects in the rod system without there being any significant effects on cone vision (e.g., stationary nyctalopias). Defects that cause rods to degenerate, however, do result in subsequent degeneration of cones. THE S-CONE SYSTEM Like the rods, the S-cones may also have only one system of on-bipolars, although this has not been firmly established.24 The S-cone on-bipolars transmit their signals to a unique bistratified ganglion cell,25 which receives excitatory signals from S-cone on-bipolars on its inner dendritic tree and excitatory signals from L-M cone off-bipolars on its outer dendritic tree (see Fig. 4). Short wavelength light (blue, violet, white, or a combination) excites this ganglion cell; minus short wavelength lights (yellow, red, green) excite this ganglion cell when these lights are turned off. THE L-M CONE SYSTEM The L-M cones are the most important photoreceptor system, undoubtedly reflecting the earliest evolution of cones, which were probably yellow-green-sensitive cones from which rods and S-cones later evolved. Later in evolution the primeval yellow cones are believed to have split into L and M cones in primates to allow trivariant color vision. The L-M cone system has two distinctly different sets of ganglion cell outputs26: the midget (tonic) system and the larger phasic system (see Fig. 4). Both systems have their own system of on- and off-bipolar cells. The midget system, discovered by Polyak, has a one bipolar to one ganglion cell connection to single foveal cones. The midget system mediates the high spatial resolution of the fovea and also participates in trivariant color vision. The phasic system is a fast, alerting system with poorer spatial resolution and a lack of response to color contrast. It is thought to play a role in luminance and movement detection, perhaps global more than local movement. HORIZONTAL AND AMACRINE CELLS The horizontal and amacrine cells tend to be specific for the separate subretinal systems. The horizontal cells provide negative feedback on to the cones. These cells release gamma-aminobutyric acid (GABA), an inhibitory transmitter that hyperpolarizes cones in the dark (i.e., when cones are normally depolarized). With light stimulation, the cones inhibit the horizontal cell, thereby stopping the release of GABA back on themselves. This depolarizes the cones, which counteracts the hyperpolarization of light (negative feedback). This tends to increase spatial and temporal resolution. The amacrine cells also appear to be coupled to specific bipolar and ganglion cell systems, also providing antagonistic interaction at the inner plexiform layer. The rod amacrine cell is a unique interneuron that brings rod signals into the common ganglion cell stream. |
ELECTROPHYSIOLOGIC TESTS |

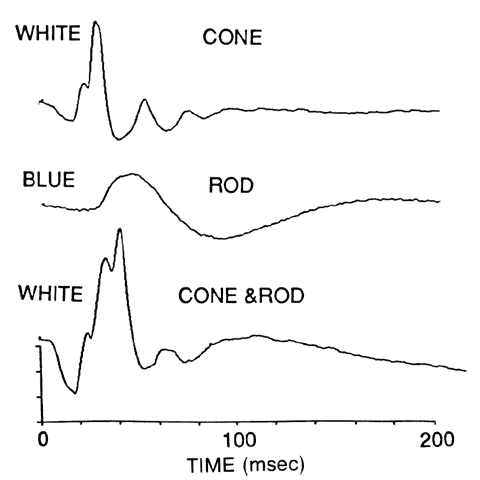

flash electroretinogram.Information about retinal function can be obtained objectively by a number
of electrophysiologic techniques, but the flash electroretinogram (ERG) is
the oldest and most frequently used (Fig. 5). It reveals a corneal negative a-wave and a positive b-wave, the latter
containing oscillations on its rising phase after strong stimulation. The
a-wave provides insights into the outer nuclear layer (i.e., photoreceptor function), but it also appears to reflect some signals
from bipolar and possibly amacrine cells. The b-wave provides information
about the inner nuclear layer, especially bipolar cells. Once the
appropriate stimulus conditions are chosen, the flash ERG can selectively

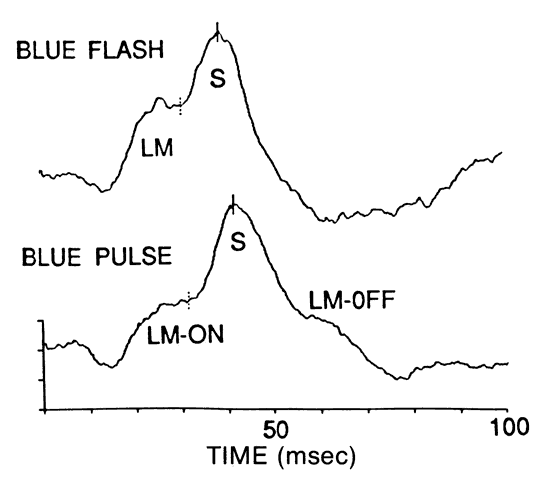

examine each of the subretinal systems (rods, S-cones, and L-M cones) (Fig. 6). The flash ERG obtains a distinct signal from each subretinal system: Rod signals are obtained in virtual isolation by giving dim blue flashes to the dark-adapted retina (see Fig. 5). S-cone signals are obtained by giving strong, blue flashes to the light-adapted retina (see Fig. 6); many of these stimuli must be computer-averaged to detect the relatively faint signals of the S-cone response. L-M cone signals are obtained by giving yellow flashes to the light-adapted retina; these signals are so large compared with those of the S-cones that a white flash also elicits mainly an L-M cone response. A less informative way to isolate the L-M cone ERG is to flicker the stimulus above the fusion frequency of rods. PULSE ELECTRORETINOGRAM. By using stimuli of longer duration than a flash, one can detect corneal positive off-responses,27 which reflect both the turn-off of the L-M cone receptor response and the excitation of cone off-bipolars. THE SCOTOPIC THRESHOLD RESPONSE. By exposing dim flashes to the dark-adapted retina, one can detect a negative wave that appears to reflect amacrine or other inner nuclear layer activity.28 There is evidence that the scotopic threshold response is reduced in glaucoma. FOCAL ELECTRORETINOGRAM. Several new methods are being used to obtain ERGs from local retinal areas, especially the fovea.29,30 One of the most innovative methods uses the simultaneous presentation of random focal stimuli combined with cross-correlation to extract each focal response.31 This greatly shortens the time it usually takes to obtain a record of local retinal function. PATTERN ELECTRORETINOGRAM. In pattern ERG, the retinal response is generated by a shift in a light/dark pattern, which causes no net change in retinal flux. This reduces the flash ERG enormously and exposes responses to spatial contrast. This response may reflect in part the retinal ganglion cell layer. ELECTRO-OCULOGRAM. The response to light by the electro-oculogram (EOG) depends on changes induced in the retinal pigment epithelium (RPE) mainly by photoreceptor activity. It requires the subject to track a small light spot while the patient's ocular saccades “chop” the standing potential of the RPE layer across skin electrodes on either side of the eye. The test takes about 1 hour to perform and is in general superseded by the more rapid and usually even more informative flash ERG. A defect in the EOG in the presence of a normal ERG may be pathognomonic of diseases such as vitelliform macular degeneration, pattern retinal dystrophy, and autosomal-dominant vitreoretinal choroidopathy. EARLY RECEPTOR RESPONSE. This response depends on charge displacement of opsin molecules in the outer segment; it requires an extremely bright flash because it precedes the phototransduction cascade and is therefore not amplified, as is the ERG. It is seldom used because it is prone to artifacts, and equivalent information can usually be obtained by the flash ERG. MODEL OF PHOTORESPONSE. A mathematic model based on the physical and biochemical parameters of rods and the biochemistry of the transduction cascade provides a quantitative description of the electrical response of rods,32 which can be monitored by the early phase of the ERG a-wave. Several attempts have been made to use this approach to study genetically defined retinal degenerations.33,34 The complexity of the degenerative process, however, impedes easy extrapolations. |
ACQUIRED RETINAL DYSTROPHIES |
CANCER-ASSOCIATED RETINOPATHY Recently, Thirkill35 described a syndrome of cancer-associated retinopathy (CAR syndrome), which appears to be due to the formation of autoantibodies induced by the tumor. Recoverin was found to be expressed in the lung tumor of a patient with CAR syndrome, but not in tumors derived from subjects who did not have the syndrome.36 Unauthorized synthesis of recoverin outside the retina may lead to generation of autoantibodies against recoverin in the immune system. The impact on each of the subretinal systems is characterized by striking reductions or changes in the ERG: Rod/Cone: Retinopathy of both the rods and cones was described first; both rods and cones appear to be directly affected because all components of the ERG are lost. This relatively sudden loss of vision in association with a concomitant cancer is strong evidence for CAR syndrome. In some cases, circulating retinal autoantibodies have been identified.35 Rod: A more specific rod-selective retinopathy has been associated with cutaneous melanomas (melanoma-associated retinopathy).37,38 The insult appears to involve mainly the rod b-wave, indicating that it affects the rod bipolars rather than the rods directly; this hypothesis is supported by immunohistochemistry.38 Cone: A CAR that eliminates the cones but preserves rod function as evidenced by the ERG has been reported by three independent groups.39 |
HEREDITARY RETINAL DYSTROPHIES40,41 |
Because there is great genetic and allelic heterogeneity in retinal dystrophies, classifications
based on age of onset as well as on psychophysical
and electrophysiologic studies have generated some ambiguity. Genetic heterogeneity is defined as different genetic mechanisms producing the identical (or
similar) clinical presentation. An example of this is retinitis pigmentosa, which
can be caused by mutant phototransduction enzymes (e.g., rhodopsin, PDEβ-subunit) or alternatively by a mutant rod outer segment
membrane protein (e.g., RDS/peripherin). Conversely, allelic heterogeneity is defined as different mutant alleles at the same locus producing different
phenotypes. For example, different defects in the PDEβ-subunit
gene can lead to either retinitis pigmentosa or congenital stationary
night blindness. Therefore, the most precise classification will
be based on molecular genetic defects. In the future, genetic tests should
be used to complement clinical diagnosis. RETINITIS PIGMENTOSA Retinitis pigmentosa is a term applied to a group of heterogeneous genetic diseases that feature retinal degeneration. This disease is the most common form of inherited blindness,42 affecting 1 in 3000 persons worldwide.43 Retinitis pigmentosa affects approximately 1.5 million persons in the world44 and between 50,000 and 100,000 persons in the United States alone.45 Retinitis pigmentosa has autosomal-dominant, autosomal-recessive, X-linked, and mitochondrial inheritance patterns.46 In a study conducted in Maine, the frequency of these inheritance patterns is as follows: 19% autosomal dominant, 19% autosomal recessive, 8% X-linked, 46% isolated cases, 8% undetermined, and less than 0.5% mitochondrial.47 The majority of isolated cases probably involve autosomal-recessive inheritance. At the onset of retinitis pigmentosa, patients present with night blindness due to progressive loss of rod photoreceptor cells. Subsequently, tunnel vision and eventual loss of sight develops as the cones degenerate as well. Light-evoked responses, generated by the massed electrical activity of the retina and detected on ERG, are abnormal in affected persons before the onset of symptoms.48,49 A loss of rod ERG function in persons with intact photoreceptors is found in families with congenital stationary nyctalopia (night blindness); however, normal full-field ERG functions with loss of foveal function are found in hereditary macular dystrophies. |
GENETIC APPROACHES TO RETINAL DISEASES | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Genetic analyses of rare inherited disorders have shed light into identifying
the molecular mechanisms governing retinal function in health and
disease. Many initial studies of mammalian genetics have been conducted
on the visual system. In 1911, Wilson49a of Columbia University mapped the color-blind locus to the human X-chromosome. This
represents the first gene ever mapped. Principles of mammalian
genetic linkage were first established based on analysis of the

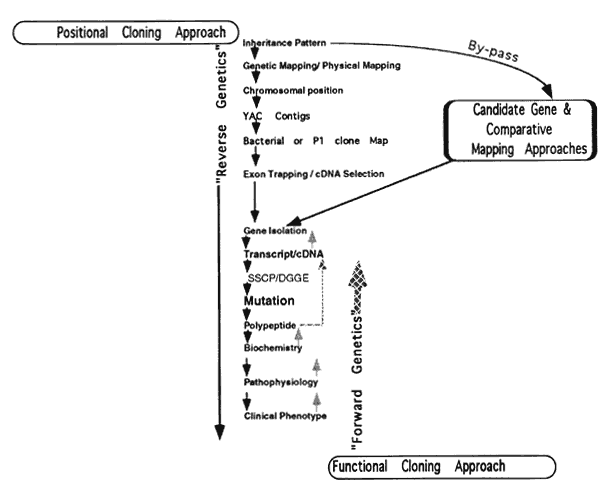

mouse pink-eye dilute and albino loci by Haldane in50 Retinal genetics has been rediscovered recently with the arrival of molecular
tools (Fig. 7). POSITIONAL CLONING Because of the rapid progress in molecular genetic approaches to studying retinal dystrophies, reviews become rapidly outdated. Therefore, we attempt to illustrate some principles of mammalian genetics by studies of specific retinal dystrophies. Knowledge of the chromosomal location of many mutant loci, combined with recombinant DNA technology, has made it possible to elucidate the primary defects of many retinal diseases. Both developments have made it easier to approach the pathophysiology of these defects through a strategy that has become known as “reverse genetics”; the preferred term is now positional cloning. The general scheme of positional cloning is a follows:
Presently, retinal dystrophic genes cloned only by positional strategies include those associated with choroideremia and Norrie's disease (Table 1).41,51,52 This approach is labor intensive, particularly in the identification of disease-causing genes from the genomic fragment. Each YAC clone could contain as many as 20 genes, and each of these genes would have to be individually examined as a possible candidate for a given disease.
TABLE 1. Genetic Analysis of Human Retinal Diseases
ADRP = autosomal-dominant RP; ARRP = autosomal-recessive RP; CNGC = cGMP-gated channel α-subunit gene; CRD = cone-rod dystrophy; CSNB = congenital stationary night blindness gene; DCMD = dominant cystoid macular edema; EVR1 = exudative vitreoretinopathy; GA = gyrate atrophy; Mt = mitochondrial; NARP = neurogenic muscle weakness, ataxia, and retinitis pigmentosa; OAT = ornithine-delta-aminotransferase gene; OCA2 = oculocutaneous albinism type 2; PDEA = phosphodiesterase α-subunit gene; PDEB = phosphodiesterase β-subunit gene; RDS = human retinal degeneration slow gene; RHO = rhodopsin gene; RP = retinitis pigmentosa.
CANDIDATE GENES Another strategy is the candidate gene approach (also known as “position-a-clone approach”) which has been used with great success in retinitis pigmentosa (see Table 1). This involves the co-localization on a chromosomal map of a disease phenotype and a gene for a protein thought to be involved in retinal pathophysiology. This approach allows the testing of hypotheses to examine the cause of a genetic disorder based on a previously described clinical or cellular phenotype. The increasing number of cloned genes in the phototransduction cycle (e.g., rhodopsin, PDE, arrestin) (see Fig. 3) favors a candidate gene approach: a patient and his or her family members can be studied for genetic linkage to the candidate gene(s), or the genes can be sequenced directly from the patient's DNA. COMPARATIVE MAPPING This approach takes advantages of the synteny between human and mouse chromosomes (i.e., evolutionary conservation of the gene order across species). Genes associated with a mutant phenotype in mice become candidate genes for the human disorder that maps to the syntenic genomic region. PRECAUTIONS Both the positional cloning and the candidate gene approaches require sequencing the candidate genes for pathogenic mutations responsible for the disease. It is often difficult, however, to distinguish between pathogenic mutations and neutral polymorphisms. Polymorphisms are variations fixed in at least 1% of the population. Well-known protein polymorphisms include the G6PD and other isozymes described by Harris as well the blood groups (ABO, Duffy and others). These polymorphisms were used extensively in the 1970s by Bias, McKusick, and others for linkage markers of human genetic diseases. Polymorphisms in DNA, first described by Kan in 1978, are highly informative markers for genetic mapping and have revolutionized mammalian genetic analysis. For example, restriction fragment length polymorphisms are common variations in the DNA sequences that are recognized by restriction endonucleases. The frequency of a pathogenic mutation should be the same as the frequency of the disease. The pathogenic mutation should never be found in a control population with normal vision. Furthermore, the mutant allele should always segregate with the disease. In other words, the same pathogenic mutation should cause disease in unrelated persons. More important, a pathogenic mutation should disrupt the protein structure that the gene encodes. In most cases, a pathogenic mutation affects an amino acid residue conserved between different species. Therefore, a functional assay is needed to demonstrate how the pathogenic mutation affects the gene's function. The pathogenic phenotypes of the mutation should also be reproduced in cell culture or animal models. One should keep in mind that many so-called mutations described in the literature may have only loosely met these important criteria. |
RETINAL DEGENERATIONS |
POSITIONAL CLONING During the past few years, clinical, cytogenetic, and molecular analysis of patients with complex phenotypes have led to the identification of syndromes caused by deletions of adjacent disease genes on a single chromosome. Schmickel called these conditions contiguous gene syndromes, and they are well recognized in human genetics. The DNA isolated from patients with these syndromes is useful for the mapping and cloning of disease genes. The presence of a cytogenetic lesion immediately points to the chromosomal location of the disease gene, as in the cases of choroideremia and Norrie's disease. X-LINKED RECESSIVE RP3 (XLRP). Twelve years after the initial location of the RP3 gene, accounting for 70% of X-linked RP, Wright and colleagues isolated a candidate exon from direct sequencing of cosmids mapped within the RP3 locus. The transcript encodes a guanine exchange factor and is mutated in all RP3 patients examined. Guanine exchange factors are recruited to interact with G-proteins in plasma membrane upon growth factor stimulation. The level of G-proteins in the GTP-bound state that is available to activate other effectors, is determined by a balance between the activities of guanine exchange factor and GTPase-activating protein (GAP). Loss of the exchange factor may decrease the activity of G-proteins in photoreceptors and causes degeneration.40 CHOROIDEREMIA. Noting the association of cleft lip and palate, neurosensory deafness, mental retardation, and choroideremia, Nussbaum and colleagues,53 Ledbetter, Ropers, and Cremers and associates54,55 probed the presence of a contiguous gene syndrome in a subject with choroideremia. Cytogenetic analysis revealed a deletion in the Xq21 region. The chromosomal localization of choroideremia had been confirmed earlier by linkage analysis.53 The clinical manifestations of choroideremia are similar to those of retinitis pigmentosa, but choroideremia patients present with more severe involvement of the vascular choroid and the RPE layer, which is known to influence the choriocapillaris. Physical mapping studies of DNA from patients affected with the Xq21 contiguous gene deletion syndrome narrowed the search for the choroideremia gene.54 Subtractive cloning strategies similar to those used in identifying the Duchenne muscular dystrophy locus were used to isolate additional probes around the choroideremia locus. A milestone in the cloning project was the identification of a female choroideremia patient with a t(X;13) translocation. Further studies on other patients with classic presentations of choroideremia identified smaller deletions. Analysis of the translocation breakpoint and the smallest deletion finally localized the choroideremia gene to a 45 kilobase (kb) region. Using conserved DNA within this region as a probe, a candidate transcript, which was found in the choroid and RPE as well as in other nonretinal tissues, was isolated.55 Mutations in this transcript have been found in patients affected with choroideremia.56 The gene codes for RAB geranylgeranyl transferase, subunit A. Lymphoblast cell lines from choroideremia patients have shown deficiency in the activity of component A, but not component B, of RAB geranylgeranyl transferase.57 NORRIE'S DISEASE. Retinopathy, pseudoglioma, iris atrophy and synechiae, cataract, corneal opacities, deafness, microcephaly, mental retardation, and hypogonadism characterize Norrie's disease.41,58 However, only about half of Norrie's disease patients are deaf or mentally retarded. The clinical features of Norrie's disease suggest that the gene product may be involved in neuroectodermal cell fate determination and proliferation. The gene was identified by positional cloning, and its gene product showed similarity to transforming growth factor β with a cystine knot motif being isolated.59,60 Nonsense, missense, insertional, and deletional mutations in this candidate gene have been found in Norrie's disease patients.61 X-linked exudative vitreoretinopathy was later found to be allelic to Norrie's disease.62 EXUDATIVE VITREORETINOPATHY. Autosomal exudative vitreoretinopathy41,63 is characterized by subretinal and intraretinal exudates, peripheral vitreous opacities, retinal traction, congenital retinal folds, and enophthalmos. Interestingly, this disorder maps to the location of autosomal-dominant neovascular inflammatory vitreoretinopathy (11q13)64; however, these disorders are considered nonallelic on the basis of distinct EOG b-wave findings. RETINOSCHISIS. Retinoschisis, characterized by intraretinal splitting, cystic retinal degeneration, retinal detachment, retinal atrophy, cystic retinal degeneration, choroidal sclerosis, cystic mac-u-lo-pathy, and progressive loss of vision, is mapped to Xp22.2-p22.1.41 BARDET-BIEDL SYNDROME. Bardet-Biedl syndrome41 is an autosomal-recessive disorder that features pigmentary retinopathy, obesity, polydactyly, mental retardation, hypogenitalism, hypertension, renal failure, diabetes mellitus, and hepatic fibrosis. Using homozygosity mapping on a large inbred Bedouin family, Stone and co-workers65 localized one Bardet-Biedl syndrome locus to chromosome 16. Genetic heterogeneity is found in Bardet-Biedl syndrome. LEBER'S CONGENITAL AMAUROSIS. Leber's congenital amaurosis comprises a group of autosomal-recessive diseases mapped to six different loci. Subjects frequently present with reduced ERG response, pigmentary retinopathy, central visual loss, fundus atrophy, cataract, keratoconus, photophobia, eye poking, sensory hearing loss, mental retardation, growth arrest, hepatomegaly, hyperthreoninemia, and hyperthreoninuria.41 CONE-ROD DYSTROPHY. Cone-rod dystrophy41 is an autosomal-dominant disease characterized by loss of color vision, visual acuity, and peripheral visual field; night blindness; retinal pigmentation; and chorioretinal degeneration. A patient with contiguous gene syndrome of the 18q21.1-qter deletion was found to have cone-rod dystrophy, central postsynaptic hearing loss, hypogonadism, and mental retardation. Thus, a locus for cone-rod dystrophy may be located in this region.66 Linkage analysis was used to map another form of cone-rod dystrophy to 19q13.1.67 OTHER RETINITIS PIGMENTOSA LOCI. Recently, a new autosomal-recessive retinitis pigmentosa (ARRP) gene locus, provided by Jacobson in the laboratories of Gilliam and Ott, was mapped to 6p in a study of a family from the Dominican Republic. This locus is about 20cM telomeric of the RDS/peripherin gene.68 Both the RDS and GCAPI genes have been excluded as candidates for this disease. Efforts are being made to isolate the gene for ARRP by positional cloning strategies. For the progress of positional cloning of other forms of retinitis pigmentosa, see Table 1. CANDIDATE GENES autosomal-dominant retinitis pigmentosa. Identification of the gene responsible for one of the autosomal-dominant retinitis pigmentosa (ADRP) forms exemplifies the use of the candidate gene approach. In 1989, Humphries' group mapped an ADRP form in a large Irish pedigree to 3q, which is the locus of the human opsin gene.69 With this hint, Dryja and colleagues70 and Berson's groups discovered the first point mutation, P23H, in the rhodopsin gene in a form of ADRP in 17 of 148 unrelated affected families.70 The P23H mutation was never found in any of the controls tested. The P23H allele accounts for 10% of all American retinitis pigmentosa cases52 based on haplotype (i.e., pattern of polymorphisms within a gene) analysis, and this mutant allele was found to originate from a single founder. Farrar and associates did not detect this mutation in 91 European pedigrees.71,72 Generally, mutations affecting the intradiscal domain or amino terminal of rhodopsin (see Fig. 1) predict a more favorable clinical outcome than mutations in the cytoplasmic domain or carboxyl terminus. Alteration in the transmembrane region or the middle of the gene generates a phenotype of intermediate severity.73 The demonstration that rhodopsin mutations are responsible for retinitis pigmentosa indicates that it is a genetic disease affecting photoreceptor-specific genes. Previously, investigators were uncertain whether retinitis pigmentosa was a disease caused by defects in photoreceptors or by other cells in the retina (e.g., RPE cells). This finding was a breakthrough in the study of retinitis pigmentosa; it also demonstrated the power of the candidate gene approach in human genetic analysis. AUTOSOMAL-RECESSIVE RETINITIS PIGMENTOSA. In one study,74 a patient with ARRP was found to be a compound heterozygote for the K139TER allele (results in early truncation of the channel) and the S316F allele. In another study,74 a patient with ARRP carried a homozygous truncation of the last 32 amino acids from the carboxyl terminus of the retinal cGMP-gated channel. The retinal cGMP-gated channel belongs to a family of cyclic nucleotide-activated cationic channels found also in the olfactory epithelium, heart, kidney, and testis.75 The rod channel is 50 times more sensitive to cGMP than to cAMP. The olfactory channel, however, is activated by both cAMP and cGMP. The transmembrane topology of the cyclic nucleotide-gated cationic channel is also related to voltage-gated channels, but it does not undergo desensitization. The channel allows the passage of both monovalent Na+ and divalent Ca+ + . Because of its relatively low affinity for cGMP, the channel closes rapidly in response to the decrease in cGMP level after a flash. The channel is composed of an α-subunit, which is functional as a homo-oligomer. The β-subunit can form a hetero-oligomer with the α-subunit and modulate the channel's sensitivity to Ca+ + . Removal of the last 32 amino acids from the carboxyl tail or a missense mutation (S316F) prevents the expressed channel from being exported to the membrane, leaving it retained inside the Xenopus oocyte test system.74 GYRATE ATROPHY. Gyrate atrophy is an autosomal-recessive genetic disease with a higher prevalence in the Finnish population. Simell and Takki75a found that patients with gyrate atrophy have a 10- to 20-fold higher systemic level of ornithine in plasma, urine, spinal fluid, and aqueous humor.76 A manifestation of the disease includes night blindness in the early teens. Many also develop subcapsular cataracts in their 20s. The fundus shows delineated circular or scalloped edges of chorioretinal degeneration progressing toward the posterior poles. In some patients, tubular aggregates in type II fibers of skeletal muscle can also be found. In 1977, Valle and others found that subjects with gyrate atrophy exhibit a deficiency of ornithine-delta-aminotransferase (OAT), a pyridoxal-dependent enzyme for ornithine. There are B6-responsive and B6-nonresponsive forms of the disease. The research groups of Ramesh and co-workers,77 Mitchell and associates,78 and Inana and colleagues79 independently isolated the cDNA and genomic locus for OAT. The OAT locus was assigned to human chromosome 10 and mouse chromosome 7. OAT pseudogenes are found on human Xp21.1-p11.1. The coding sequence of OAT includes 11 exons in a 21-kb genomic sequence. Different OAT mutations have been found in subjects with gyrate atrophy.80,81 Population studies on gyrate atrophy illustrate the principles of genetic drift. Allelic frequency of a population may drift from the parent population because of geographic isolation or immigration. The L402P mutation was found in the homologous form in 78% of unrelated probands of gyrate atrophy in Finnish cases, but never in non-Finnish cases. Why a systemic rise in ornithine leads to a selective degeneration of the retina is not known. To provide a better understanding of the natural history of gyrate atrophy, however, Valle and colleagues generated a mouse model with a null mutation of the Oat gene.82 Unexpectedly, hypo-ornithinemia and hyperammonemia were found in the newborn OAT-deficient mice, but the lethality of these conditions was able to be counteracted with dietary arginine supplementation. A human infant with OAT deficiency was also later found to have hypo-ornithinemia. This supports the finding that OAT plays different roles in neonates and adult subjects: Once the mutant mice that were “rescued” with arginine supplementation reached about 3 weeks of age, hyperornithinemia developed; when the same mice reached adulthood, retinal degeneration of photoreceptors and RPE developed. COMPARATIVE MAPPING The identification of molecular defects in classic mouse mutants immediately provides candidate genes for human genetic disease with similar phenotypic manifestations. AUTOSOMAL-RECESSIVE RETINITIS PIGMENTOSA. For more than 70 years, mice homozygous for the retinal degeneration (rd1) mutation have been studied as a model for human retinitis pigmentosa. In 1924, Keeler83 first reported that a developmental defect in photoreceptor differentiation led to a rodless retina in r (rodless) mice. However, Keeler's stocks were destroyed at the end of World War II. In the early 1950s, mice with a similar phenotype were also found in Basel. Recent studies have revealed that r/r mice are genetically identical to rd1/rd1 mice. Pittler and colleagues84 performed polymerase chain reaction (PCR) testing on DNA recovered from a 70-year-old paraffin block of r/r eyes, and identical mutations and intronic polymorphisms were found in both the r/r and rd1/rd1 mice. Sidman and Green85 found that rd1/rd1 is present in many inbred stocks (e.g., Bub/J, ST/bJ, PL/J, NFS/N, BUB/BnJ, WB/ReJ-W, SJL/J, CBA/J, BDP/J, C3H/HeJ, C3H/St, C3HeB/Fe, SWR/J, FVB/N). The rd1 locus was mapped to chromosome 5. The rd1/rd1 phenotype could be detected as early as postnatal day 8, when swelling of the mitochondria and vacuoles in the inner segments was observed. At postnatal day 10, the outer segments became disorganized, and by day 21, only a single row of photoreceptor nuclei was left. The rd1/rd1 retina became largely devoid of photoreceptors when the mice reached adulthood. All other retinal cells, including the RPE cells, survived the disease. Aggregation chimeras between rd1/rd1 and wild-type embryos showed that the rd1 gene defect is intrinsic to photoreceptor cells, rather than RPE cells. The number of granule cells and pyramidal basket cells in the hippocampal dentate gyrus also has been found to be fewer in rd/rd mice than in wild-type mice.86 For unknown reasons, cones also degenerate, but they do so more slowly than rods. The results from the laboratories of Gouras and Zack as well as Simon suggest that rod-specific genes may also be expressed in cone cells. The failure of proper differentiation of rod photoreceptors may signal the removal of rods or cones by programmed cell death.87–89 In the early 1970s, Schmidt and Lolley90 and Farber and Lolley91 found that rising cGMP levels preceded degeneration of photoreceptors and could be correlated with a deficiency of cGMP-PDE activity. Using differential screening between adult rd1/rd1 and normal retinas, Bowes and associates92 isolated a candidate cDNA that mapped to chromosome 5, and sequence analysis revealed that the transcript encoded the PDEβ gene, Pdeb. The PDEβ transcript was depressed before elevation of cGMP levels in the rd1/rd1 retina. Further, segregation analysis showed that no recombination could be detected between Pdeb and rd1 locus.93 Bowes and co-workers92 later found a transcriptionally active MuLV (murine leukemia virus), Xmv28, in reverse orientation in intron 1 of Pdeb. A nonsense mutation in codon 347 that would eliminate the putative catalytic domain was reported by Pittler and Baehr.94 Both mutations are found only in strains of mice that carry rd1/rd1 (i.e., they are absent in all non-rd1 strains). Thus, either the proviral insertion or the nonsense mutation in the Pdeb gene is responsible for the pathology. Farber and associates95 found that the PDE6B RNA was also defective in Irish setter dogs with rod/cone dysplasia (rcd1), leading to the finding of a nonsense mutation at codon 807 of Pdeb gene.96,97 In a Canadian study in which all 22 exons of PDE6B were scanned with single-strand conformation polymorphism analysis, no mutations were detected in 13 unrelated families with ARRP.98 However, McLaughlin and colleagues99,100 found patients with compound heterozygous mutations in families with ARRP. These mutations affected the catalytic domain and were found to decrease PDE activity and to increase cGMP levels, as in the rd1/rd1 mouse model. In an analysis of 19 Spanish families, Bayes and co-workers101 found a homozygous 71-basepair tandem duplication in exon 1 and a subsequent frame shift of the PDE6B in an affected person in a consanguineous pedigree. PDE6B gene defects were ultimately demonstrated to be the most common identified cause of ARRP, accounting for 4% to 5% of cases. The PDE6B gene was also defective in affected members of a family with autosomal-dominant congenital stationary night blindness.102 Recently, Huang and associates103 also found an association between ARRP and a mutation of the gene encoding PDEα-subunit. USHER'S SYNDROME TYPE IB. The classic recessive mouse mutant shaker-1 (sh-1/sh-1) manifests some of the features of Usher's syndrome. Vestibular dysfunction and a progressive degeneration of the organ of Corti, the spiral ganglion, and the stria vascularis in the cochlea, and of the saccular macula and the vestibular ganglion in the vestibular labyrinth, are found in sh-1/sh-1 mice. Retinal degeneration has not been reported in these mice. The sh-1 locus maps to chromosome 7, which is tightly linked to olfactory marker protein (Omp). A YAC was isolated from this region, and one of the exon-trapping products was used to screen a mouse inner-ear cDNA library. A cDNA-encoding myosin VIIA was isolated, and the genomic structure was determined. Two missense mutations and a splice acceptor site mutation in the region encoding the myosin head are found in different alleles in the myosin VIIA locus.104 Myosin VIIA belongs to a family of unconventional myosins involved in phagocytosis, endocytosis, vesicular transport, chemotactic movement, and other motilities associated with actin. This 240-kilodalton (kd) protein is found in RPE cells and cochlear hair cells, as well as in the testes, lungs, and kidneys.105 These findings in the sh-1/sh-1 mice prompted Weil and associates106 to undertake a candidate gene approach to studying Usher's syndrome, an autosomal-recessive disorder that exhibits progressive retinal degeneration, congenital deafness, and areflexia. Types I and II differ in terms of the extent of the vestibular involvement: Type II has no vestibular degeneration and a later onset of RP compared with Type I. Type I Usher's syndrome (USH1) maps to chromosome 14 (USH1A), chromosome 11q (USH1B), and chromosome 11p (USH1C). USH1B, which accounts for approximately 75% of USH1 patients, maps to the 11q13.5 region, which is syntenic to mouse chromosome 7. This is why the human homologue of sh-1/myosin VIIA became a strong candidate gene for USH1B. In one study,105 two different nonsense mutations, a 6-basepair deletion, and two different missense mutations in myosin VIIA caused USH1B in five unrelated families. Other cytoskeletal contractile protein genes in these families may be responsible for other Usher's syndrome types. USH1B is the first form of human retinitis pigmentosa due to an RPE-expressed protein. OCULOCUTANEOUS ALBINISM TYPE IIA. The mouse pink-eye dilute or pink-eye dilution (p) locus is a classic mutant found around the time mice were first used as pets. The genetic linkage between the p locus and the albino (c) locus was the first mammalian linkage, demonstrated by Haldane in 1915.50 The p gene encodes a 12-transmembrane tyrosine transporter that imports tyrosine into melanocytes in the interior of the melanosomes. The melanosomes of the p/p mice have altered morphology: the biosynthesis of the dark eumelanin is more affected than that of phenomelanin. Thus, the coat of the p/p mice develops as yellow in a wild-type gene background and turns gray in a genetic background in which phenomelanin biosynthesis is affected (e.g., C57BL6). Both eye and coat pigmentations are affected. Numerous alleles exist for the p locus, and the p unstable locus (pun) has a high reversion rate to the wild-type phenotype, both somatically and in the germline. The presence of the pun allele allowed application of the genome scanning technique to access the pun locus.107 A 75-kb DNA fragment was found to be duplicated in the pun locus, but this fragment was not found in the revertant. Deletion of the entire paternal P locus, the last coding exon, and the poly A-tail of the maternal P gene was found in a patient with tyrosinase-positive oculocutaneous albinism type 2 (OCA2) and Prader-Willi syndrome.108 Mutations of the P gene have been detected in OCA2 patients with nonpigmented fundi, nystagmus, strabismus, and poor visual acuity.109 In the overall population in the United States, OCA2 occurs in 1 in 36,000; in African-Americans, it occurs in 1 in 10,000. In South Africa, OCA2 occurs in 1 in 3900 blacks. AUTOSOMAL-DOMINANT RETINITIS PIGMENTOSA. Heterozygous mice at the retinal degeneration slow (RDS) locus display abnormal outer segments and a slow rate of photoreceptor degeneration. Homozygosity at this locus leads to retinal degeneration of early onset and slow progression. In the Rds/Rds retina, the specialized outer segment membranes that contain the light-detecting visual pigment and associated neural signaling molecules are never properly assembled. Slowly, the inner segments, nuclei, and synaptic terminals degenerate. Photoreceptors begin to degenerate slowly by 2 weeks of age. The time course of the degeneration takes approximately 1 year, with greater severity in the peripheral compared to the central part of the retina. A null mutation arising from a retrotransposable element is inserted into the Rds gene110 encoding Rds/peripherin. Based on size (approximately 10 kb) and the copy number of the inserted sequences in the mouse genome (10 to 30 copies), this insert represents a retrotransposable element homologous to the t haplotype-specific element in the H-2 complex. The transcript of the mutant locus includes this transposable element.111 No protein is made because the aberrant transcript does not leave the nucleus.111 The research groups of Travis and colleagues,110,112 McInnes, and Molday independently showed that the Rds gene product is a 39-kd integral membrane glycoprotein located on the rim of both rod and cone outer segments.112 Travis and associates113 isolated the human cDNA and showed that there are two transcripts that correspond to 3 and 5.5 kb. The human RDS protein shares about 92% homology with murine rds/peripherin. Using somatic cell hybrids and in situ hybridization, Travis and co-workers mapped RDS to human chromosome 6. Given the phenotype of the rds/rds mice, RDS became a strong candidate gene for human retinal dystrophies. Farrar and associates114 and Kajiwara and co-workers115 independently demonstrated that mutations of the RDS gene caused ADRP. DIGENIC RETINITIS PIGMENTOSA. Using differential screening, McInnes's and Inana's laboratories independently isolated a 1.4-kb human retinal-specific cDNA.116 The transcript encodes a 33-kd transmembrane protein found in the rim of the rod photoreceptor disc. The ROM gene product forms a heterodimer with the RDS gene product. With the use of in situ hybridization, ROM was mapped to 11q13. Recently, Kajiwara and colleagues117 reported on retinitis pigmentosa patients who had double heterozygosity for ROM1 and RDS mutations. The three ROM1 alleles are likely to be null mutations because a different 1-basepair insertion occurred at the 5' end of the gene and created a frame shift downstream. The other RDS allele in these patients bears the P185L. Retinitis pigmentosa does not develop in heterozygous carriers of either ROM1 or RDS. Interaction between distinct mutations at two unlinked genetic loci causes human retinitis pigmentosa of nonmendelian inheritance, known as digenic inheritance. Thus, nonallelic noncomplementation occurs between these two loci. HETEROGENEITY AT THE RDS LOCUS. Great allelic heterogeneity is found at the RDS locus. Mutations in RDS can lead to either central or peripheral dystrophies affecting primarily rods or cones, respectively. RDS gene mutations account for approximately 3% to 5% of ADRP as well as cases of retinitis punctata albescens, macular dystrophy, vitelliform macular dystrophy, butterfly dystrophy, retinitis pigmentosa with bull's eye maculopathy, or adult-onset foveomacular dystrophy with choroidal neovascularization.45,52 Noncovalent linkage occurs between RDS and rod ROM1. A rod ROM1 homologue may also exist in cone disc membranes. If the RDS mutation were to affect the interaction domain with rod ROM1, peripheral rod dystrophies would be a consequence; however, if the mutation were to affect the cone ROM1 homologue interaction domain, central macular dystrophies might be generated.51 The clinical heterogeneity at the RDS locus can also be due to differences in individual response to the same primary defect.52 ANIRIDIA. Although aniridia is considered an anterior segment disorder, the story of the cloning of aniridia illustrates the power of the comparative gene mapping approach. The human-mouse synteny maps have been exploited to clone the Pax3 gene responsible for Waardenburg's syndrome in humans. Similar strategies have been used to clone the murine small eye (Sey) locus after the identification of the molecular defect of human aniridia. The aniridia and Sey genes are flanked by the same genes in homologous regions of human chromosome 11 and mouse chromosome 2.118 Aniridia is a congenital absence of an iris that exhibits an autosomal-dominant mode of inheritance. Aniridia can also occur as part of a contiguous gene deletion syndrome, the WAGR complex: Wilms' tumor, aniridia, genitourinary malformations, and mental retardation. Two unrelated persons with familial aniridia were reported to have conceived a stillborn fetus that lacked eyes, a nose, and the adrenal glands.119 Therefore, homozygosity at the aniridia locus is lethal in early development. Similar to aniridia, the original Sey allele is semidominant and characterized in the heterozygote by malformed lenses and congenital cataracts, in addition to smaller eyes. Homozygous mice are characterized by complete failure of eye and nose development. By molecular cytogenetic analysis of a patient with a contiguous gene syndrome of the 11p13 region and another patient with an intragenic deletion of the aniridia gene, Ton and associates120 were able to isolate a candidate cDNA that is completely or partially deleted in two patients with aniridia. The cDNA encodes the aniridia (PAX6) gene. PAX6 mutations are also found in other anterior segment disorders, such as Peters' anomaly.121 Features of Peters' anomaly also develop in some of the heterozygous small eye mice. A different allele of the PAX6 mutation causes autosomal-dominant keratitis, a disease featuring corneal opacification and foveal hypoplasia.122 Ectopic expression of the Drosophila fly Pax6 gene can induce eye formation in the wings and legs of transgenic Drosophila flies. |
STATIONARY NYCTALOPIAS |
There are diseases that eliminate or greatly reduce rod vision but have
virtually no effect on cone vision. Presumably the rods or rod bipolars
do not degenerate but only lose their function. Hypothetically, the
rod amacrine cell could be the site of such a defect, but there is no
evidence for this so far; it would be detectable by nyctalopia in the
presence of a normal flash ERG. POSITIONAL CLONING CONGENITAL STATIONARY NIGHT BLINDNESS (X-LINKED). X-linked congenital stationary night blindness (CSNB1), mapped to Xp11.3, is characterized by night blindness, myopia, and hemeralopia.41 CONGENITAL STATIONARY NIGHT BLINDNESS (X-LINKED). X-linked congenital stationary night blindness (CSNB2), mapped to Xp21.1, is characterized by night blindness and decreased visual acuity. It is tightly linked to the X-linked RP3 locus.123 CANDIDATE GENES congenital stationary night blindness (dominant). A mutation H258D in the PDEβ-subunit has been found in autosomal-dominant congenital stationary night blindness (CSNB3) in a Danish kindred.102 H258D lies close to the putative PDEβ binding site of PDEγ. The loss of one of the two PDEγ binding sites in the catalytic core may contribute to constitutive PDE hydrolytic activity and a low cGMP level in the dark. Thus, the cGMP-gated channels would always remain closed, and the rod photoreceptor would be constantly hyperpolarized. Failure of the photoreceptor to return to the depolarized state could result in night blindness. The lack of retinal degeneration in this Danish family suggests that only high (not low) levels of cGMP are associated with cell death. CONGENITAL STATIONARY NIGHT BLINDNESS (RHODOPSIN-RELATED). Night blindness was documented at 18 and 34 years of age, as evidenced by loss of rod ERG a- and b-waves, in a 34-year-old man.124 Normal cone ERG b-wave amplitudes and implicit times were recorded in both visits. No change in fundus appearance was noted between the first and second visits, indicating a retinal dystrophy of nonprogressive nature. DNA analysis of this genetically isolated case revealed a heterozygous missense mutation, A292E. In human embryonic kidney cell culture systems, transfected A292E rhodopsin can activate transducin without a chromophore. Based on these observations, the authors proposed that constitutive activation of the photoexcitation cascade generated constantly light-adapted rods in this patient. Sieving and colleagues125 reported cosegregation of G90D as an autosomal trait in affected persons in a large family with mildly progressive congenital night blindness. Defects of rod vision in dim but not in bright light suggested that the affected rod photoreceptor was partially light-adapted. In vitro, G90D is able to activate Tα without light or a chromophore.126 OGUCHI'S DISEASE. Oguchi's disease is a nonprogressive autosomal-recessive congenital stationary night blindness that maps to chromosome 2. A candidate gene in that region is the arrestin gene (also known as S-antigen). Examination of five of six unrelated Japanese patients with Oguchi's disease revealed an identical deletion of nucleotide 1147 in codon 309 of the arrestin gene.127 This 1-basepair deletion created a frame shift and produced early truncation of arrestin. Genetic heterogeneity was determined to exist in Oguchi's disease because the deletion could not be detected in the sixth patient. Oguchi's disease patients have problems with light adaptation. Single rod cell recordings of Chen's mice carrying a targeted disruption of the arrestin gene showed that light adaptation is impaired in these mice (Chen J, personal communication, 1996). Interestingly, severe light-dependent photoreceptor degeneration developed in flies lacking arrestin, whereas mice lacking arrestin showed only a slow light-dependent degeneration of photoreceptors.76 The rod ERG in Oguchi's disease becomes normal after prolonged dark adaptation, but recovery from a single flash is greatly delayed; however, only one case has been studied so far. The cone ERG is entirely normal, although no S-cone ERG has yet been reported. AUTOSOMAL-DOMINANT CONGENITAL STATIONARY NIGHT BLINDNESS. The earliest and most well-documented autosomal-dominant pedigree in human genetics affected the decendents of Nougaret (1637 to 1719), a Southern French butcher with CSNB.40 Using the candidate gene approach the research groups of Maumenee-Hussels, Arnaud, and Dryla, found segregation of G38D in affected family members.40 This mutation is thought to lock transducin in the GTP bound state and become constitutively active. Ablation of the GTPase activity in transducin like G-protein, H-ras, conferred its oncogenic potential with growth factor independent cell proliferation. Constitutively active transduction cascade in affected individuals in the Nougaret kindred may increase the threshold of light activation leading to night blindness. Recently, rod transducin was also found to mediate bitter taste transduction. Affected individuals in the Nougaret kindred may also be defective in taste transduction tolerating bitter substances more than normal individuals. |
MACULAR DEGENERATION | |||||||||||||||||||||||||||||||||
Macular degenerations are localized to the macular region and produce their
main deficit by destroying foveal vision. They are distinguished
from global retinal, and especially cone degenerations, by the presence
of normal full-field ERGs, color vision, and peripheral visual fields. POSITIONAL CLONING north carolina macular dystrophy. North Carolina macular dystrophy (MCDR1) is also known variously as “dominant macular degeneration and aminoaciduria,” “dominant progressive foveal dystrophy,” “central pigment epithelial dystrophy (CAPED),” or “pigment epithelial and choroidal degeneration.” Patients with MCDR1 show progressive foveal dystrophy, macular pigmentary changes, and drusen. A founder effect was observed in a large North Carolina pedigree of more than 5000 descendants of three Irish brothers who became tobacco farmers. Two of these three brothers are affected.128 Unrelated families, however, also have been found in Belize, Spain, France, England, Canada, and Mexico. In 1992, Small and associates mapped MCDR1 to 6q14-q16.2.129 POLYMORPHIC VITELLIFORM MACULAR DYSTROPHY (BEST'S DISEASE). Best's disease, also known as vitelliform macular dystrophy, is a true autosomal-dominant disease in which homozygotes manifest the same features as the heterozygotes. The EOG has been useful in preclinical detection. In Best's disease patients, an egg yolk-appearing mass develops in the macular area from birth. Later the lesion has the appearance of a scrambled egg, becoming irregularly pigmented. The RPE cells accumulate excessive lipofuscin and present as a previtelliform lesion. In 1992, Stone's and Sheffield's groups mapped the Best's disease gene to 11q13, closely linked to the INT2 (FGF3) gene, using a five-generation family with 29 affected persons. A candidate gene in the region is the ROM1 gene; however, Stone's, McInnes', and Sheffield's team were not able to detect any mutation in all the coding exons.130 ATYPICAL VITELLIFORM MACULAR DYSTROPHY. Atypical vitelliform macular dystrophy maps to 8q24.41 STARGARDT'S DISEASE. Stargardt's disease is characterized by bilateral maculopathy with RPE degeneration consisting of one or more of the following: atrophies, dispersion, and granulation. Patients usually present at 6 to 20 years of age with reduced visual acuity. There are currently three known loci for Stargardt's disease: an autosomal-recessive form on 1p, an autosomal-dominant form on 6cen-q14, and another autosomal-dominant form on 13q34.41 CYSTOID MACULAR EDEMA. Cystoid macular edema is an autosomal-dominant disease that features normal ERG, but low visual acuity, hyperopia, strabismus, whitish punctate vitreous deposits, and pericentral retinitis pigmentosa.131,132 Dominant cystoid macular edema (DCMD) was mapped to 7p21-p15 and was found to be closely linked to an RP locus.133 CANDIDATE GENES sorsby's fundus dystrophy. Sorsby's fundus dystrophy is characterized by macular edema, hemorrhage, exudate, and diffuse choroidal atrophy. A diffuse, yellow subretinal material also can be observed in the peripheral retina. Linkage analysis of a large pedigree placed SFD gene on chromosome 22q12.1-qter.134 A strong candidate gene in that region is the gene for tissue inhibitor of metalloproteinase-3 (TIMP3). The TIMP gene families are best known to limit trophoblast invasiveness to the uterine wall during implantation. The TIMPs also play active roles in tissue remodeling in organogenesis. The pseudoinflammatory response of the choroid in Sorsby's fundus dystrophy could be due to a defect in excess proteinase activity. Weber and co-workers135 examined the TIMP3 gene in a family with Sorsby's fundus dystrophy and found a S181C mutation that segregated with all 12 affected persons in the pedigree. Further demonstration of a Y168C mutation in this gene in a different family confirmed that TIMP3 is the gene for Sorsby's fundus dystrophy. Vitamin A therapy appears beneficial in reversing night blindness in the early stages of the disease.136 RDS-RELATED CENTRAL DYSTROPHIES. The RDS gene has been implicated in both macular and generalized retinal degenerations.41,128 Table 2 includes examples of both types where there is evidence for the genetic mutation.137–143
TABLE 2. RDS-Related Central Dystrophies
ERG = electroretinographic; RDS = retinal degeneration slow gene; RPE = retinal pigment epithelium.
|
OTHER GENETIC RETINAL DISEASES |
CONGENITAL HYPERTROPHY OF THE RETINAL PIGMENT EPITHELIUM. Congenital hypertrophy of the RPE is found to be associated with mutations
in the adenomatous polyposis coli gene (APC), which causes the formation of hundreds of polyps in the colon and rectum
that eventually progress to carcinomas. The APC gene, isolated by the laboratories of Vogelstein and White, was found
to bind to β catenin, a calcium dependent adherens junction protein. In
persons with APC mutations located after exon 9, congenital hypertrophy of the RPE develops.144 DUCHENNE'S MUSCULAR DYSTROPHY. Many boys with Duchenne's muscular dystrophy (DMD) have normal ERG a-waves but reduced-amplitude rod-isolated b-waves. A functional retinal or on-bipolar DMD product, dystrophin, may be missing in boys with defective ERG findings; however, no abnormality in night vision has been reported.41 MITOCHONDRIAL PIGMENTARY RETINOPATHIES If there is an error in mitochondrial DNA, then mitochondrial pigmentary retinopathies are maternally inherited. If mutations are found in the nuclear DNA affecting the structure, importation, or assembly of nuclear proteins into the mitochondria, however, then mitochondrial pigmentary retinopathies may have a mendelian inheritance pattern. The expressivity of the phenotype is highly variable because of the phenomenon of heteroplasmy: coexistence of mutant and normal mitochondrial DNA in the same cell. Mitochondria have about five genomes per organelle, and there are approximately thousands of mitochondria per cell. Homoplasmy occurs if all the genomes are identical, whereas heteroplasmy occurs when there is a diversity of mitochondrial genomes. Mitochondrial replication is not in phase with mitosis or cellular division. After a mitochondrion divides, it may not carry along its replicated DNA. Thus, the number of mutant mitochondrial genomes can change over time. The phenotypic expression of a mitochondrial mutation further depends on the oxidative activity of the tissue (threshold effect): retina, brain, and muscle, which have much higher requirements for oxidative energy, have a lower threshold than kidney or liver. In the retina, 80% of mitochondrial mutant genomes will be sufficient to cause a pathologic defect in oxidative metabolism, whereas in kidney or liver, 80% is below threshold. Therefore, mitochondrial disorders are not tissue specific genotypically, but can be phenotypically. KEARNS-SAYRE SYNDROME. In patients with Kearns-Sayre syndrome,145 retinal degeneration, ptosis, ophthalmoplegia (paralysis of extraocular muscles), heart block, and occasionally corneal dystrophy develops. Ragged red fibers are seen when the muscle is stained with Gomori trichrome. The mitochondria are abnormally large and creatine phosphokinase deposits as paracrystalline inclusions in the muscle. Early in oogenesis or embryogenesis, clonal expansion of deleted mitochondrial DNA occurs. At the cellular level, the deletion may not have many phenotypic consequences; however, at the organismic level, such deletions are deleterious. NEUROGENIC MUSCLE WEAKNESS, ATAXIA, AND RETINITIS PIGMENTOSA. The syndrome of neurogenic muscle weakness, ataxia, and retinitis pigmentosa (NARP syndrome) is associated with a missense mutation in the ATPase 6 gene in mitochondrial DNA.146 LEBER'S HEREDITARY OPTIC NEUROPATHY. Wallace and co-workers147 first showed that a pathogenic point mutation in subunit 4 of NADH dehydrogenase (complex I) caused Leber's hereditary optic neuropathy. Patients with this disease typically become blind at about 20 years of age and are more commonly male than female. The blindness may be reversible later in life.148 |
MOLECULAR PATHOGENESIS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DOMINANT ALLELES Persons with dominant diseases have a normal allele on one chromosome and a mutant allele on the other chromosome. Phenotypic consequences of dominant disorders can be attributed either to interruption or gain of function by the mutant allele (dominant negative) or to insufficient levels of the gene product due to inactivation of the mutant allele (haploinsufficiency). The majority of dominant disorders seem to exhibit features of dominant negative function at the cellular level. In contrast to normal rhodopsin, P23H mutant rhodopsin accumulates in the rough endoplasmic reticulum and leads to photoreceptor degeneration. The P23H allele is a gain-of-function mutation because it acquires the new property of being retained in the endoplasmic reticulum. The wild-type allele has no effect on altering cell fate determined by the P23H allele. Therefore, the treatment of dominant diseases requires pharmacologic or genetic disabling of the dominant gain-of-function allele. Simple replacement of the protein product may not have any beneficial effects. RECESSIVE ALLELES In contrast, many recessive alleles are loss-of-function mutations. The protein product translated from a missense or nonsense allele is generally unstable and degraded rapidly. Consequently, the cellular concentration of the protein is decreased and function subsequently lost. The level of protein product of a heterozygous carrier is usually half that of a normal person. Most enzymes are naturally made in vast excess, and therefore most heterozygous carriers do not have any detectable phenotype. In principle, replacement of the wild-type protein product at a sufficient level and at the appropriate time should cure the disease. MOLECULAR CELLULAR MECHANISMS Genetic analysis of Drosophila mutants has revealed that photoreceptor degeneration can be classified into stimulus-independent and stimulus-dependent degenerations. Light-independent degenerations occur in mutants with defects in maintaining a normal level of rhodopsin or other structural components of the photoreceptors. On the contrary, light-dependent degenerations occur in mutants with defects in the regulation of phototransduction. Human genetics in combination with somatic cell genetic analyses has yielded insights into the molecular pathogenesis of rhodopsin mutants. Different rhodopsins carrying different human mutations were transfected into culture cells by Sung and co-workers (see Table 3). The mutants generally can be divided into three major categories:
TABLE 3. Transgenic Mouse Models of Rhodopsin Mutants
ERG = electroretinographic; PDE = phosphodiesterase; RP = retinitis pigmentosa.
Class I: Mutants affecting signaling In class I, deletion of amino acids 68 to 71 leads to failure of binding to 11-cis retinal. Transducin activation is affected in T58R, R137L, and R135W alleles.149 In class II, many rhodopsin defects affect protein folding and subsequent glycosylation. These abnormally processed rhodopsins, such as P23H, accumulate in the rough endoplasmic reticulum and are deleterious to the cell. In class III, the Q344TER mutant fails to be localized to the outer segment, even though protein folding is apparently normal. DEFECTS IN TRANSDUCTION: EQUIVALENT LIGHT HYPOTHESIS Constant exposure to room light is known to produce photoreceptor degeneration in rodents.150 Fain and Lisman151 proposed that photoreceptor degeneration in vitamin A deficiency and some forms of retinitis pigmentosa is a consequence of the uninterrupted photoexcitation cascade. There has been controversy, however, about whether a continuous activation of the phototransduction cascade leads to cell death. Genetic analysis in Drosophila clearly demonstrated that continuous photoexcitation leads to photoreceptor degeneration. Arrestin is necessary for the termination of the light response. A genetic screen of Drosophila mutants based on the loss of arrestin immunoreactivity, yielded several mutations of this gene (arr1 and arr2) mutants. Functional defects in arr2 lead to a rapid light-dependent degeneration.76 The inability to inactivate metarhodopsin suggests that sustained activation of the phototransduction cascade may cause a calcium-dependent excitotoxicity. There is little experimental evidence that such a constitutive activation of phototransduction leads to vertebrate photoreceptor degeneration in vivo. There have been attempts to develop transgenic mouse strains with a continuously active photoexcitation. The K296E rhodopsin mutant becomes phosphorylated and permanently bound to arrestin when it is expressed in the mouse retina.152 In vitro, however, the K296E mutant can constitutively activate transducin and is not phosphorylated by rhodopsin kinase.153,154 Another attempt to lock the mouse photoreceptor in a light-adapted state with expression of a GTPase-deficient cone transducin resulted in downregulation of PDE and guanyl cyclase, but no degeneration.155 Recently, deletion of the carboxyl-terminal 15 amino acids of rhodopsin resulted in a receptor that could exhibit photoexcitation but was resistant to inactivation in the mouse photoreceptors.156 This leads to a slow, progressive loss of photoreceptors in these mice within a year.156 Interestingly, mice lacking arrestin do seem to show slow, progressive light-dependent retinal degeneration (Chen J, personal communication, 1996). TRANSGENIC MODELS Most of the models of diseases of retinal degeneration have been provided by naturally occurring mutations in humans or animals, mostly mice. The further understanding of the roles of defective genes in these diseases will depend on our ability to manipulate the structure of the genes and examine the effects of these manipulations in animal models. One experimental approach to this problem has been to introduce dominant-acting transgenes into normal mice and to determine whether their expression produces retinal degeneration.157,158 There are two drawbacks to this approach: (1) it requires dominantly expressed alleles; and (2) the effect of the transgene is superimposed on the normal gene complement of the transgenic animal, including the endogenous wild-type allele. Table 3 shows what has been uncovered to date by this approach.156–160 Recent advances161,162 in the ability to target exogenous DNA sequences into specific chromosomal locations in mammalian cells via homologous recombination together with manipulation of murine embryos and embryonic stem (ES) cell lines make possible the generation of mouse strains with specific genes inactivated. Genetically altered ES cells can be introduced into preimplantation mouse embryos, where they take part in the formation of all tissues, including the germline, thus generating transgenic offspring. Gene replacement techniques enable the study of the effects of either recessive or dominant transgenes in isolation. Null alleles of retinal genes have now been generated by targeted gene inactivation with mouse ES cell technology. The null mutant provides a perfect genetic background to study the structure and function of retinal proteins or any other proteins in vivo. Animal models with precise human genetic defects are essential not only for understanding the variable expressivity of the disease, but also for designing pharmacologic or genetic therapies. APOPTOSIS Different models of hereditary or induced photoreceptor degenerations all display features of apoptotic photoreceptor death,88,89 characterized by an absence of inflammatory response, chromatin condensation, cytoplasmic blebbing, and nucleosomal DNA fragmentation. The molecular basis of apoptosis has been elucidated through studies of developmental mutants and human cancer genetics. In Caenorhabditis elegans, ced-3 and ced-4 promote but ced-9 prevents apoptosis. Ced-9 is a homologue of the human BCL2 (B-cell lymphoma) gene. Croce's group discovered the BCL2 gene on human chromosome 18 and the immunoglobulin heavy-chain enhancer on chromosome 14 in the t(14;18) translocation. In transgenic mice carrying the BCL2 gene driven by the immunoglobulin heavy-chain enhancer, lymphoid hyperplasia and high-grade malignant lymphomas develop. Transfection of BCL2 into cell lines is able to block growth factor withdrawal, glucocorticoid-induced, or γ-irradiation-induced apoptosis. During embryogenesis, BCL2 is expressed in proliferative zones. BCL2 may prevent the formation of apoptosis by forming heterodimers with BAX. Apoptotic photoreceptor cells in two mouse models (mutant rhodopsin transgenic mice and the rd1/rd1 mice) can be temporarily and partially halted when crossed with transgenic mice that expressed BCL2 under the control of the mouse 4.4-kb opsin promoter.163 The genetic studies of apoptosis may generate new molecular therapeutic strategies to deter retinal degenerations. |
THERAPY |
Isolation of novel genes with the positional cloning approach and examination of known genes with the candidate gene approach should shed light into the mechanisms of retinal dysfunction and degeneration. Further, elucidation of the specific gene defect and the cell system in which these mutants are expressed can suggest strategies for rational therapy, which will evolve with greater rapidity as more and more of the necessary genetic information is obtained. |
