Chapter 72 Pediatric Vitreoretinal Surgery MICHAEL T. TRESE and PHILIP J. FERRONE Table Of Contents |
The pediatric patient presents many challenges to the vitreoretinal surgeon that require special consideration relative to surgical circumstances. |
EXAMINATION AND PATIENT PRESENTATION |
Pediatric vitreoretinal surgical patients are often unable to verbalize
their visual complaint. Therefore the examiner must often rely on physical
examination techniques. The patient is often referred for one of
the following diagnoses: no red reflex, suspected retinal detachment, unexplained
strabismus, leukocoria, history of trauma, a change in visual
function, or unexplained irritability. Like adult patients, pediatric patients require a good clinical examination. Unlike adult patients, however, pediatric patients are often uncooperative during the examination. In pediatric patients (especially those aged 1 to 4 years, who are often unable to understand the need for examination but are strong enough to effectively resist examination), the examination must be very directed and complete, yet brief enough so as not to lose the cooperation of the child, family, or other caretaker. Because children often have a very short attention span, it is necessary for you to begin gathering information as soon as you enter the examining room: your initial observations of the child interacting with his or her environment may be the most important piece of information you get from the child. The physical part of the examination consists of visual acuity assessment. Assessment of vision in preverbal infants is difficult and subjective. Even the Teller and Archer-Droste acuity tests have a subjective component, since the observer must decide whether the infant sees the target.1,2 Given the subjective nature of the testing, it is still necessary to try to judge the presence or absence of light perception. This seems to be most easily assessed by either attraction or aversion to light. As the child gets older, assessment of visual acuity as measured by fixing and following behaviors, followed later by recognition behaviors, becomes possible. After visual acuity assessment, a history of the child and family are necessary. The purpose of the history is to determine whether an examination under anesthesia, other tests (e.g., electrophysiology, blood workup for genetic markers), or surgical intervention is required. Certainly, one of the greatest risks a systemically compromised child can face is anesthesia; therefore, the surgeon must appreciate the child's systemic condition as well as the level of risk associated with general anesthesia. Often the vitreoretinal surgeon is not one who makes that decision. We prefer to leave that to the neonatologist/pediatrician and anesthesiologist. The birth history should include the birth weight, conceptual age (i.e., weeks from conception to the present), gestational age (i.e., weeks from conception to birth), the mother's due date, pregnancy data (e.g., illness, trauma, drug use, HIV status), and familial ocular and systemic diseases. The mother's due date is a useful landmark because it gives a reference point as to retinal vascular maturity and foveal formation. Retinal vascular maturity occurs at around the due date to several weeks (rarely even up to 8 weeks) after the due date. Foveal maturation occurs approximately 3 months after the due date. In addition, if retinal detachment occurs as a result of acute retinopathy of prematurity (ROP), it usually occurs 1 or 2 weeks on either side of the due date (see ahead to the Retinopathy of Prematurity section). EXAMINATION TECHNIQUE The examination technique varies depending on the child's age. A premature newborn may be quite tolerant of being wrapped and undergoing scleral depression. Caution must be used when performing scleral depression in an infant with extraretinal vascularization, since it is possible to cause retinal hemorrhage during the examination.3 For examination, we use an indirect ophthalmoscope and a 20-diopter lens to assess the anterior segment and a 28- or 40-diopter lens to examine the retina. We prefer to use a small-pupil or spectacle-mounted indirect ophthalmoscope because it gives us greater freedom to move around the child during the examination. We generally have the child lie on his back on an adult's lap with the child's head at the adult's knees. This allows the adult “holder” to control the child's arms and feet while the examiner controls the top of the head and eyelids. We prefer not to use a lid speculum, but some children are unable to be examined without one. In the circumstance that a speculum is needed, a topical anesthetic is often used, and one must be aware of the potential of a corneal abrasion. Once the examiner is aware of the information that needs to be obtained from the examination and the child is appropriately positioned, the examination can begin. The examiner must realize that the examination that the child will allow will consist of a randomly organized look at the back of the eye. It is the examiner's job to piece together the sum of these views into a useful montage. As a general rule, the more struggling that is necessary for the examination, the more frustrated the child, examiner, and family will become, and the less information will be derived from the examination. It may be necessary to examine such a child under anesthesia or to have the child return another day so that a more complete examination can be performed. Examination Under Anesthesia Examination under anesthesia should be reserved for the child whose office examination did not answer the clinical questions. This hopefully is a small number of children, but postponement of diagnosis of treatable retinal pathology in children not only makes repair of the retina more difficult, but also may lead to amblyopia, the need for retinal reattachment, and a poor visual result. Therefore, the decision to perform examination under anesthesia should be made as one would with any other clinical test associated with some risk. Examination under anesthesia should be performed if information can be gained that can help with the child's management. |
PEDIATRIC RETINAL DETACHMENT |
GENERAL CONSIDERATIONS All aspects of management of pediatric retinal detachment must be viewed with the realization that all the issues associated with adult retinal detachment are present in the child, but that these circumstances are occurring in an eye that is part of a visual system in the process of learning how to see. Because of the difficulty of examining the signs as well as recognizing the symptoms of retinal detachment in children, the timing of retinal detachment repair is often unavoidably delayed despite appropriate referral. After retinal detachment or detachment repair, the vigor with which reparative tissue grows may lead to severe stages of proliferative vitreoretinopathy. Our clinical impression, which is in agreement with that of other experienced vitreoretinal surgeons, is that pediatric retinal detachments have a worse prognosis for reattachment and therefore vision, perhaps partly due to severe reproliferation rates. In some series, pediatric retinal detachment is often found in association with some congenital retinal changes that may have an associated retinal or, perhaps even more importantly, vitreous abnormality that predisposes the patient to the retinal detachment.4 In a 1972 study of pediatric aphakic patients in whom a small-wound closed-eye technique was used, 1.5% were found to have retinal detachment at a mean follow-up of 5.5 years.5 In two thirds of these cases of retinal detachments, there was a coexistent anomaly. Other series on retinal detachment, especially those involving children or trauma, also have reported continuing cicatrization and late retinal detachment.6,7 The 1.5% incidence of retinal detachment reported in the 1972 study5 is much reduced from earlier series, which have shown a 3% to 10% incidence of retinal detachments.8,9 The mechanical difference of using a vitreous cutting system to remove a child's soft lens versus the older aspiration technique seem to have led to a more controlled cutting of lens and vitreous. This technique is less likely to transmit the cutting and sucking forces from the lens material to the vitreous base, thus avoiding the creation of retinal tears. ANATOMIC CONSIDERATIONS The most obvious anatomic consideration in pediatric retinal surgery is the relatively smaller size of the child's globe and orbit compared with the adult's. There are, however, several other important anatomic considerations in pediatric cataract extraction:
|
RHEGMATOGENOUS RETINAL DETACHMENT |
Although rhegmatogenous idiopathic retinal detachment is less common in
the pediatric population, it is important to consider in the primary
repair of pediatric retinal detachments. Rhegmatogenous retinal detachments
in children are often found accompanying other vitreoretinal pathology
or trauma and has been reported in cases of Marfan's syndrome, Stickler's
syndrome, cataract extraction, and trauma.13–15 SCLERAL BUCKLING A child's eye is prone to more vigorous reproliferation than an adult's. This can be attributed to (1) a biochemistry that supports cell growth more actively or (2) a tendency toward a longer delay between the time of detachment and the determination of a diagnosis and therapy. This has led us to suggest the use of a higher scleral buckle in children than in adults. For primary rhegmatogenous retinal detachments, we use a sculpted 5 × 7 mm sponge with an encircling 2.5-mm solid silicone band. It is often assumed that the child's orbit cannot accommodate a large sponge, but we have found that this type of exoplant is well tolerated. Drainage of subretinal fluid is always controversial. We tend to drain subretinal fluid if the retina is highly detached and minimal retinal traction is present. If fluid is quickly drained while extensive traction remains, other retinal tears can occur. In primary rhegmatogenous detachments, however, drainage is often helpful. Complications Postoperative complications of scleral buckling in children range from limitation of eye growth to development of an amblyopic loss of vision due to cycloplegic use of eyedrops. To avoid these pitfalls as much as possible, approximately 3 months after the scleral buckling operation we divide the encircling band in all children who are less than 2 years of age or whose eye growth is retarded. We choose to divide rather than to remove the element because we believe that continued support is given to the retina by the encapsulated exoplant. To reduce the chance of amblyopia development in the postoperative period, we tend to prescribe 1% atropine drops for 5 days; if both eyes have good visual potential, we often prescribe the drops for use in both eyes. In addition to amblyopia therapy, refractive error, which can usually be pursued leisurely in adults, needs to be aggressively treated. Giant Retinal Tears Giant retinal tears in adults have been discussed widely in the literature.16 Giant tears in children, however, have received less attention. The problems in treating pediatric giant tears often revolve around positioning of the patient for weeks after surgery as well as complicated surgical techniques. Delay in diagnosis and the fact that pediatric giant retinal tears are often concurrent with other ocular problems or trauma make these retinal tears even more challenging in children than they are in adults. Thus children often have lower anatomic and visual success rates.4 Children's level of physical activity and inability to position postoperatively make the consideration of a long-acting tamponade (e.g., silicone oil) very appealing. This may free the child and caretaker from a rigorous positioning regimen. All of the complications of silicone oil must also be considered, such as cataract, glaucoma, corneal decompensation, and reoperation for removal.4,17 We believe that the advantages of silicone oil far outweigh the disadvantages in this population and will usually use it as our first-line tamponade in giant retinal tears in children. |
RETINOPATHY OF PREMATURITY | |||
ROP accounts for a large number of retinal detachments in the pediatric
population. The International Classification of Retinopathy of Prematurity
helped greatly to improve communication about, and consequently
treatment of, ROP. It describes affected eyes in terms of stage, zone, and

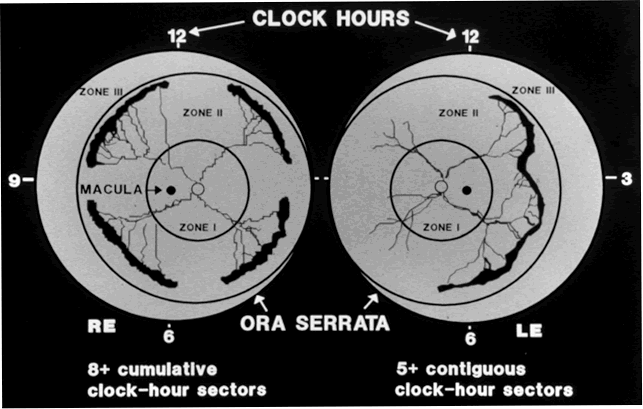

absence or presence of plus disease18 (Figs. 1, 2, and 3). Screening of premature infants is an important feature in the care of
ROP, which is perhaps the most significant and enduring finding of the
Cryotherapy for Retinopathy of Prematurity Study (Cryo-ROP Study).19
Although several screening protocols have been suggested, we have found that children whose birth weight was 1500 g or less should be screened initially at 4 to 6 weeks after birth, and then every 2 weeks until they reach retinal vascular maturity, which is when nasal vessels in the horizontal meridian have grown to within 1 disc diameter of the ora serrata. During that time, if a child shows threshold disease as defined by the Cryo-ROP Study, namely five clock-hours of contiguous or eight clock-hours of discontiguous neovascularization (stage 3 ROP with plus disease), it is recommended that the child have peripheral ablation with either cryotherapy or laser treatment.19 Newer studies have suggested that zone 1 children may require earlier peripheral ablation.20 The child who fails to respond to peripheral ablation may require further surgical intervention. Two large series reported that scleral buckling for stages 4A and 4B retinal detachments resulted in a retinal reattachment rate of approximately 70%.21,22 These studies were both retrospective; however, they did show a strong trend toward a higher reattachment rate with scleral buckling than the natural history of these detachments, which have a 55% chance of progression of retinal detachment from stage 4 to stage 5 ROP.23 When first assessing a child's retinal detachment, one must judge the amount of effusive versus tractional detachment (Figs. 4 and 5). Scleral buckling would be considered for the child who shows a predominately effusive stage 4B detachment as opposed to a stage 4 predominately tractional detachment, for which lens-sparing vitrectomy may be recommended.24 For a child who has a great deal of retrolenticular touch, lensectomy/ vitrectomy and membrane peeling would be recommended. It appears that the “window” for lens-sparing vitrectomy may be rather brief. In one series, the postconceptual age of the lens-sparing vitrectomized eyes was 42.6 weeks, as opposed to 46.9 weeks for eyes that needed lensectomy/vitrectomy and membrane peeling. This small time difference in the postconceptual age shows the often rapid evolution of this detachment from one in which the lens is salvageable to one in which the lens is unsalvageable. This highlights the need for timely screening of eyes, identification of eyes with progressive disease, and rapid intervention.25

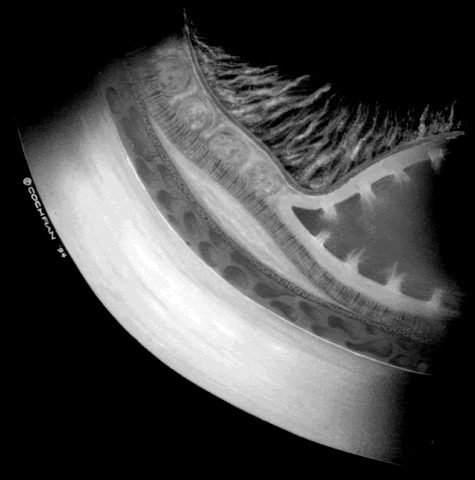

The techniques of vitreous surgery in children require an understanding of the anatomy of the pars plicata. A premature child does not have a well-defined pars plana, and therefore pars plicata entry is the only entry possible to avoid the lens upon entering the vitreous cavity. A term infant who is 8 months post term has a 2 mm pars plana.12 Infants who are premature at the time of vitreous surgery require entry immediately posterior to the iris root to avoid damage to the neurosensory retina and crystalline lens. After vitreous surgery, particularly one that is lens-sparing, the final visual result depends on the child's central nervous system, refractive status, and competition with the fellow eye. With lens-sparing vitrectomy techniques, however, visual acuities can be made as good as 20/60, even in ROP cases.26,27 The child who has lensectomy/vitrectomy as well as membrane peeling with appropriate refractive correction can have a visual acuity as good as 20/200 to 20/400.28 The child's initial aphakic status can greatly affect his or her final visual outcome. This is why we believe strongly that prompt screening in order to time surgical intervention appropriately as well as reacting quickly to the child's surgical need are important means of optimizing final visual outcome. A child's refractive status is always difficult to deal with, especially if the child is aphakic or the red reflex is compromised. In children, we should not forget the need to assess near vision and the use of low vision aids. A child's retinal detachments progress at variable rates; thus the rate of detachment must be assessed on an individual basis. In children with RUSH disease, the eye has a very immature retina with much of the vascularized/avascular retinal juncture in zone 1. These eyes tend to progress to retinal detachment very quickly, often within 1 to 2 weeks. We have described another uncommon entity called very posterior zone 1 retinopathy of prematurity.29 In this disease, the macula is disorganized and not clearly visible. The posterior pole presents a syncytium of vessels all in zone 1. All of these eyes that we followed have gone on to have tractional retinal detachment. If there is to be any hope of vision in these patients, management requires a very rapid and broad peripheral ablative treatment followed by early vitreous surgery intervention. The care of ROP patients requires a careful and rapidly performed screening examination, rapid intervention with peripheral ablation, scleral buckling, lens-sparing vitrectomy, or lensectomy/ vitrectomy and membrane peeling. Given a prompt intervention, we have come to believe that ROP can be managed with results comparable to those for patients with diabetes or proliferative vitreoretinopathy. To date, Droste and Trese30 are the only investigators to have reported on a consecutive series managed in that fashion, and this series showed improved visual results. Historically, visual results in ROP have been poor if retinal detachment intervention was delayed. With the advent of appropriate screening and rapid surgical intervention, however, improved visual results are possible. |
FAMILIAL EXUDATIVE VITREORETINOPATHY |
Familial exudative vitreoretinopathy (FEVR) is a forme fruste of ROP, occurring in a larger and often term infant. It has a variety of genetic inheritance patterns: autosomal-dominant FEVR was the first to be described; more recently X-linked FEVR has been described.31–33 Shastry and Trese34 recently described a point mutation that seems to be associated with X-linked FEVR. Like retinitis pigmentosa, this may represent only one of many mutations that can cause this phenotype. The management of FEVR is similar to that for ROP: in the early stages, peripheral ablation is used to reduce subretinal and intraretinal exudation.35 However, FEVR has a more chronic progression than ROP, showing continued subretinal exudation throughout several decades of life. |
RETINAL DYSPLASIA |
A child with retinal dysplasia accompanied by tractional or hemorrhagic retinal detachment, as is seen in Norrie's disease, can maintain light perception or minimally better vision if retinal reattachment is accomplished. A child with significant retinal dysplasia may not merit surgical intervention; however, maintenance of eye size should be a consideration, and visual function of even the smallest amount may be helpful in some children. |
CONGENITAL RETINOSCHISIS | ||
Congenital retinoschisis is an inherited retinal disease characterized
by abnormal Müller's cell pillars that allow schisis cavities
to form. These schisis cavities are often described as being present 100% of
the time in the foveal area and 50% of the time in the far periphery. They
often result in decreased visual acuity by the third decade
of life. They certainly can result in reduced visual acuity much sooner
than that and may be present either at birth or during the first
decade of life. We believe that congenital retinoschisis is aggravated by vitreoretinal traction and have suggested that surgical therapy may be indicated for congenital retinoschisis under certain specific clinical settings:
The suggested treatment is scleral buckling or vitreous surgery, including removal of the inner wall of the schisis cavity with extensive panretinal photocoagulation to protect against rhegmatogenous retinal detachment.36–38 The hallmark of this tractional detachment is visual field changes that are larger than expected relative to the schisis cavity.36 Previously, demarcation lines resulting from full-thickness retinal detachment have been reported posterior to the schisis cavity.39 Others have considered this finding to represent an undetected rhegmatogenous retinal detachment, but based on observations during surgery, we believe that this detachment can be reversible and is tractional in origin (Fig. 6).36
COATS' DISEASE Coats' disease is an example of a vitreoretinal congenital vascular disease in which vitreous traction often plays a role leading to both preretinal and subretinal hemorrhage with resultant retinal detachment. Children with Coats' disease have been managed with vitreous surgery, scleral buckling, trans-scleral diathermy, cryotherapy, laser therapy alone, and laser therapy accompanied by injectable dyes (Fig. 7).40–42 Many different techniques have been employed because frequently neither the vessel abnormalities nor the vitreous traction can be resolved completely. With the possible advent of enzymatic surgery, such as use of plasmin or chondroitinase, it is hoped that a cleaner and more complete reduction of vitreoretinal traction will help advance the involution of these abnormal vessels without concurrent vitreous or subretinal hemorrhage.43
|
OTHER INDICATIONS FOR VITREOUS SURGERY |
Children who have particularly unilateral premacular hemorrhage persisting
for several months and who are less than 1 year old may be susceptible
to dense amblyopia. These eyes can be managed with lens-sparing vitreous surgery. This type
of eye is often prone to membrane formation beneath the blood. If premacular
blood is removed, care should be taken at this time to remove
any epiretinal membrane beneath the blood.44 Unfortunately, pediatric retinal surgeons must also deal with the issue of shaken baby syndrome. This syndrome is characterized by blood in the posterior pole and macular area. This blood can be preretinal, intraretinal, or subretinal45; a significantly large component of intraretinal blood may be in the macular area. The differential diagnosis of vitreous hemorrhage in children is quite lengthy, ranging from trauma, to vascular malformations, to congenital retinoschisis, to other forms of retinal tear and detachment. Care should be taken to try to distinguish among these diagnoses in order to identify a potential victim of trauma versus a patient with inherited retinal disease. Pediatric vitreoretinal surgery strongly requires a team approach among the pediatrician, neonatologist, anesthesiologist, and vitreoretinal surgeon. All aspects of the child's care must be considered before even the most minor surgical examination or intervention can be undertaken. As our knowledge of vitreoretinal surgery increases, the possibility of using a combination of mechanical and enzymatic surgery (e.g., plasmin and chondroitinase) may become particularly helpful in children in whom a vitreoretinal adhesion is exceptionally strong. It is hoped that enzymatic surgery will allow increased safety for the relief of vitreoretinal traction, which may be very helpful in the management of entities such as ROP, FEVR, Coats' disease, and congenital retinoschisis. |
