Chapter 35 Pharmacology of Local Anesthetics JOEL S. MINDEL Table Of Contents |
HISTORY STRUCTURE MECHANISM OF ACTION AND EFFICACY TERMINATION OF ACTIVITY ANESTHESIA OF THE EYE AND ORBIT SIDE EFFECTS, TOXICITIES, AND ALLERGIES REFERENCES |
HISTORY | ||
Local anesthesia became a reality with the introduction of cocaine. Cocaine
is an alkaloid found in coca bush leaves and first isolated in 1862. A
Viennese ophthalmologist, Karl Koller (1854-1944) discovered the
anesthetic effect of cocaine in 1884. He had been encouraged by Sigmund
Freud to study the effect of cocaine on muscle strength. Koller noticed
that cocaine numbed his tongue and, realizing that this might make
it a topical anesthetic, he placed the drug on the eye. Koller could
not afford to travel so he asked Josef Brettner, who was visiting the
Vienna Eye Clinic on his way to the Heidelberg Ophthalmologic Congress, to
announce his discovery at that meeting on September 15, 1884.1 Subsequently, Koller submitted his paper to Vienna's Physician Guild
on October 17, 1884. He later reported the removal of corneal foreign
bodies and the performance of iridectomies and cataract surgery using
topical cocaine anesthesia. The 1884 Archives of Ophthalmology contained this evaluation by Knapp: “No modern remedy has been received
with such general enthusiasm, none has been as rapidly popular, and
scarcely any has shown so extensive a field of useful application
as cocaine, the local anesthetic introduced by Karl Koller of Vienna.” Koller
emigrated to the United States in 1888 and settled in
New York, where he became the first Chief of Ophthalmology at The Mount
Sinai Hospital in 1901. He was the first recipient of the Howe Medal

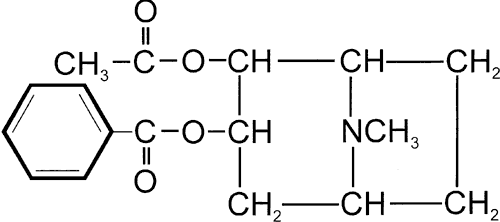

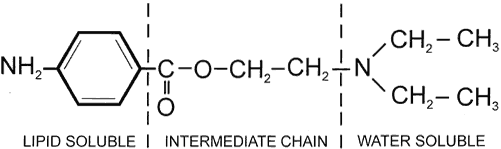

of the American Ophthalmological Society in 1922. It quickly became apparent that cocaine was not the ideal local anesthetic. It had a low therapeutic ratio, which could result in convulsions and deathwhen it was injected for regional anesthesia. It was relatively unstable when stored as a solution, and it was addicting. By the time cocaine was successfully synthesized in 1924, superior local anesthetics had already been developed based on the evolving knowledge of the structure of cocaine (Fig. 1). Cocaine was found to contain an essential ester bond. This was shown by the inactivation of its anesthetic effect when this bond was hydrolyzed. Cocaine deesterification liberated benzoic acid. In 1905 procaine (novocaine) was synthesized; procaine is a benzoic acid derivative with an ester bond (Fig. 2), that is, a paraminobenzoic acid ester of diethylaminoethanol. Other frequently used agents that followed were tetracaine (1930), lidocaine (1946), mepivacaine (1956), and bupivacaine (1963). |
STRUCTURE | |
Local anesthetics act by blocking the conduction of impulses along the
neuronal membrane. Many types of chemical structures do so to some degree, including
ethanol and barbiturates. However, those agents that are
clinically useful as local anesthetics are more potent in this regard
and are less toxic. Structurally, their syntheses require a secondary (-NH) or
tertiary (-NH2) amino group in the hydrophilic portion of the molecule. With few exceptions, they
also contain a lipid-soluble group (e.g., benzoic acid), separated
from the water-soluble group (containing the amide) by an intermediate
chain. The intermediate chain contains an oxygen, nitrogen, or

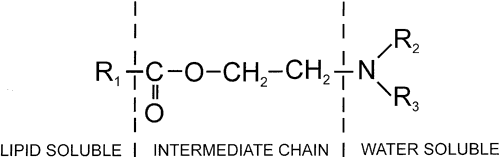

sulfur atom. This general structure has been called the anesthesiophore
group (Fig. 3). It is important that the amino group in the hydrophilic portion of the
molecule be a proton receptor and thus be basic, allowing it to become
positively charged (e.g., a tertiary amide, -NH2, becomes quarternized, -NH3+ , and thereby ionized) at physiologic
pH (7.3–7.4). |
MECHANISM OF ACTION AND EFFICACY |
Local anesthetics block the formation or conduction of action potentials. They
stabilize the neuronal membrane and prevent the generation of
impulses; the standing potential remains intact. The action potential begins with extracellular sodium flowing into the neuron, followed by intracellular potassium flowing out of the neuron. At low concentrations, local anesthetics primarily affect sodium conductance. At higher concentrations, potassium conductance may also be affected. The clinically used local anesthetics act primarily by reversibly blocking the sodium ion channel at its internal pore. If a nerve is perfused in a local anesthetic solution at a low pH, causing all the anesthetic molecules to be ionized (quarternized), there is no effect. However, as the pH of the solution is raised toward physiologic levels, the number of ionized molecules is reduced, and a conduction block develops. The explanation is that ionized molecules cannot readily penetrate the sodium pore or the neuronal membrane. The anesthetic agent must be acting on the internal side of the sodium pore or neuronal membrane, not externally. If the nerve is anesthetized with local anesthetic at pH 7.3 and the pH is markedly raised (e.g., to more than 9.5), the blockade will be reversed. At a high pH, the anesthetic molecules inside and outside the neurons are in the nonionized state. Lowering the pH to 7.3 will restore the conduction blockade. This is consistent with the concept that the active form of the anesthetic molecule must be ionized and positively charged if it is to block the sodium pore or neuronal membrane. Exceptions exist; benzocaine is a local anesthetic, but it is not ionized at physiologic pH.2 There are several other generalizations about the molecular structure and anesthetic activity relationship that seem to hold up fairly well. The larger the alkyl substitutions on the nitrogen atom of the hydrophilic group, the greater the anesthetic activity; lengthening the intermediate chain increases activity and toxicity; the most effective substitutions that increase or decrease local anesthetic action are those on the lipid-soluble group; and local anesthet-ics with an amide nitrogen in the intermediate chain of the anesthesiophore group tend to be more stable and to have a longer duration of action than those with an ester oxygen. Neuronal factors that affect local anesthetic activity are axon diameter, myelinization, and rate of firing. The greater the diameter of the axon, the more internal membrane surface area and number of sodium channels there are to block and therefore, the lower the intensity and duration of anesthetic action.3 The greater the amount of myelin, the less readily the anesthetic penetrates the axon. Frequency dependency describes the observed phenomenon that the more rapidly a neuron discharges, the more rapidly the anesthetic enters the axon. Anesthetic agents whose molecules alternate between positively charged and neutral form at physiologic pH are most likely to show frequency dependency. Benzocaine, which is uncharged at physiologic pH, does not show frequency dependency. The principal manufacturing factors that affect activity are drug concentration, pH of the solution, and the presence of a vasoconstrictor. Cocaine contains intrinsic vasoconstrictor properties. It blocks the reuptake of norepinephrine released by sympathetic nerve endings. All other local anesthetics block sympathetic neuron release of norepinephrine, resulting in vasodilation. The addition of a vasoconstrictor reduces drug absorption by the vasculature, thereby increasing the local effect of the anesthetic, reducing in theory its systemic toxicity, and reducing surgical bleeding. Norepinephrine is less stable than epinephrine, the vasoconstrictor that is usually added. Concentrations of epinephrine of approximately 1/200,000 (i.e., 0.0005%) are maximally effective. There are many techniques for evaluating the intrinsic activity of a local anesthetic. One that was developed early on used the corneal surface of animals. In 1894 Von Frey reported using the tip of a single hair from a horse's tail. Onset of anesthesia was defined as beginning with the loss of the blink reflex, and the duration of anesthesia ended with its return. Depth of anesthesia was determined by multiple rapid stimuli. For example, failure for a blink to occur during four stimulations at a rate of two per second might be considered complete anesthesia. |
TERMINATION OF ACTIVITY |
Most anesthetic molecules reaching the systemic circulation are metabolized to inactive forms before elimination from the body. Hydrolysis of the ester and amine groups and oxidation and dealkylation of amino groups can occur.4 For the amide anesthetic, lidocaine, dealkylation is the major, but not only, metabolic pathway.5 However, the role of local (e.g., orbital) tissue enzymes in terminating the anesthetic effect is limited.6 Passive diffusion of an anesthetic away from its site of action seems much more important in terminating action. Because motor axons tend to be of larger diameter than sensory axons, the former require a larger quantity of drug to maintain anesthesia. Therefore, as the tissue level decreases, motor activity recovers before sensory.7 |
ANESTHESIA OF THE EYE AND ORBIT |
Topical, corneal, and injected orbital anesthesia are relatively safe ways
to perform surgery. In 195 patients with known previous myocardial
infarctions who underwent 288 ophthalmologic procedures under local anesthesia, there
were no postoperative myocardial infarctions or deaths
during, or in the week after, surgery. In 255 patients with previous
angina pectoris but no documented myocardial infarctions who underwent 373 ophthalmologic
procedures under local anesthesia, four patients
had myocardial infarctions, two of whom died. In 9,617ophthalmologic procedures
performed on patients with a history of neither myocardial infarction
nor angina, there was one myocardial infarction.8 TOPICAL ANESTHESIA The cornea and conjunctiva can be anesthetized by drops of any of the local anesthetics. Bupivacaine, for example, is effective as an eyedrop.9 It is perplexing to see the surgeon stand over the patient with a syringe full of local anesthetic and call impatiently for a vial of topical anesthetic. Generally, those agents chosen to be topical anesthetics differ only in penetrating the sensory nerve endings more rapidly, thereby having a faster onset of action and a shorter period of producing ocular irritation. The sympathetic β-receptor antagonist, propranolol, stabilizes neuronal membranes and produces anesthesia. For this reason, it is not used topically as an ocular hypotensive agent although it can effectively lower pressure. Propranolol is not a typical local anesthetic because it does not contain an anesthesiophore group; the aromatic hydrophobic group is not joined to the hydrophilic tertiary amine by an ester or amide group. The local anesthetic potency of propranolol is approximately equal to that of lidocaine. Several other β-blockers also have local anesthetic properties. For example, oxprenolol, acebutolol, and alprenolol have approximately half the anesthetic potency of propranolol. Timolol has no significant anesthetic properties.10 The depth and duration of topical anesthesia are dose-dependent.11,12 Return to full recovery after one drop of proparacaine 0.5% may take more than 1 hour and the maximal effect may last 5 to 20 minutes. Pathologic tissues (e.g., the hypesthetic corneas associated with previous herpes simplex or herpes zoster infections) may take longer to recover.13 In general, the ester topical agents, because of their relatively rapid tissue penetration, have a lower margin of safety and are often not marketed in an injectable form. Tetracaine is such an example. Procaine is an exception; it is an ester-containing local anesthetic available as an injectable agent. When used as a topical agent, procaine has the dual advantages of a rapid onset and a shorter duration of action. Specific Uses SKIN SURGERY. Topical anesthesia of the eyelid skin, sufficient to perform surgery, has been achieved with creams and patches containing lidocaine, applied 60 to 90 minutes before the first incision.14 DIAGNOSTIC TESTS. Topical anesthetics are routinely used when performing applanation tonometry. However, small but statistically significant reductions in intraocular pressure have been reported, lasting for 1 to at least 15 minutes, after their application. In healthy patients measured 1, 5, 10, and 15 minutes after one drop of 0.4% benoxinate, the intraocular pressure decreased from a baseline of 14.80 ± 3.28 mm Hg to 14.01 ± 3.33 mm Hg, 13.56 ± 3.12 mm Hg, 13.17 ± 1.12 mm Hg, and 13.98 ± 3.45 mm Hg, respectively.15 One drop of tetracaine 2% produced a small but significant reduction in intraocular pressure from baseline at 10 minutes (10.67 ± 2.55 mm Hg to 9.94 ± 2.17 mm Hg).16 The mechanism of this reduction may be an increased aqueous humor flow rate leaving the eye, but the evidence is not strong.17 Topical anesthesia has been used when trying to differentiate reflex from nonreflex tear production. The anesthetic drop is given before the test to prevent reflex tearing from corneal or conjunctival irritation during tear collection (e.g., by a paper strip [Schirmer test] or by a pipette). However, it was found that tearing remained nonlinear, with an initial rapid phase of tear secretion, long after the anesthetic drop was administered.18 Reflex tearing was not completely inhibited even by two drops of proparacaine 0.5% applied 5 minutes before the insertion of paper strips. OCULAR SURGERY. Topical anesthesia for adult cataract surgery has seen a rebirth. Regional retrobulbar injections of local anesthetics had replaced the topical cocaine introduced by Koller. The reintroduction of topical anesthesia began with its use in patients with coagulopathies in whom the threat of needle-induced retrobulbar hemorrhages existed.19 Topical anesthesia has subsequently had widespread use and is only slightly less effective than intracameral, sub-Tenon's, peribulbar, or retrobulbar injections in preventing intraoperative pain.20–26 In general, the effectiveness of topical anesthesia appears uninfluenced by the use or absence of systemic analgesics preoperatively or intraoperatively. POST-OPERATIVE ANALGESIA. Post-operative pain after strabismus surgery performed on children, 1 to 12 years old, was found to be reduced for up to 8 hours by applying one drop of a topical anesthe-tic after intubation and a second drop immediatelybefore tubation.27 Those receiving placebo dropsrequired more analgesic drugs during the post-operative period. The pain after laser (photorefractive) keratectomy was reduced during the first 24 hours after surgery by using local anesthetic drops every 30 minutes; there was no impairment of corneal epithelial healing or visual acuity as measured 1, 3, and 6 months after the procedure.28 THERAPEUTIC USE. Most ophthalmologists reject the thought of using long-term topical corneal anesthetic drops because of their potential side effects and toxicities. However, as treatment for trigeminal neuralgia, a small amount of literature indicates that topical anesthetics are efficacious and advocates their use.29,30 Topical lidocaine gel 5% has been applied to the face without occlusion, for 8 hours to relieve pain from herpes zoster infection.31 Significant pain relief begins by 30 minutes and lasts 24 hours. Blood levels are less than 0.3 μg/mL blood, well below the minimum of 0.6 μg/mL blood needed for any cardiac effect and the minimum of 2 μg/mL blood needed for a therapeutic antiarrhythmic effect. Long-term use for more than 2 months does not produce any systemic or topical ill effects other than some minor skin redness and irritation. A commercial preparation of lidocaine 5% is available as a patch. Toxicity Topical anesthetic agents can cause a decrease in corneal epithelial cell glycolysis, respiration, and healing. Microscopically, reduction in the numbers of corneal epithelial microvilli, disruption of the intercellular spaces, damage to the cell membranes and cytoplasm, and desquamation can be identified. Penetration of other topically applied agents, simultaneously or subsequently applied, is enhanced. The intraocular penetration of topical fluorescein is increased, aiding fluorophotometry. Mydriasis and cycloplegia are more rapid and profound when a topical anesthetic precedes the parasympatholytic eyedrop. However, at least one study has found evidence that the preservatives chlorhexidine and especially benzalkonium chloride, which are usedin commercial preparations of local anesthetics, are primarily the cause of this increased corneal epithelial permeability.32 It is, therefore, difficult to evaluate the role of the anesthetic agent itself when commercial preparations are reported to produce increased corneal thickness33 or epithelial permeability.34 Topical anesthetics retard healing of corneal abrasions by interfering with epithelial cell mitosis and migration.35 However, it is accepted practice for the physician to administer a topical anesthetic to assess the acutely traumatized eye. The pain, blepharospasm, photophobia, and epiphora after a corneal abrasion can prevent an accurate assessment of visual acuity and the structural integrity of the anterior segment. A drop or two of topical anesthetic will produce a dramatic, if only temporary, improvement in these symptoms. Prolonged administration of topical anesthetics can produce a toxic keratopathy consisting of corneal epithelial defects, stromal edema and opacification, and anterior chamber inflammation. Corneal scarring and endothelial damage may require a penetrating keratopathy for visual rehabilitation.36 A sterile corneal ring infiltrate may mimic an infectious process, such as Acanthamoeba keratitis.37 The relative proportions of the keratopathy attributable to the anesthetic agent and the preservative are not clear. Healthcare workers, especially physicians,38 and the psychiatrically disturbed are the two groups most likely to abuse corneal anesthetics. If the cause of the keratopathy is not recognized, corticosteroid and antibiotic eyedrops may be given, increasing the chances of secondary fungal superinfections and resistant bacterial infections (e.g., Candida species, staphylococci, streptococci, and Proteus species).39 Topical anesthetics are routinely used when obtaining scrapings from a presumably infected cornea. A portion of the scrapings can be used to culture the causative microorganism. However, the anesthetic preparation may be toxic to the organism and impair its growth. It would seem unlikely that, in the clinical situation, a drop or two of an anesthetic agent applied to the cornea would have any significant antibacterial effect. However, when a 50-μL drop of a commercial topical anesthetic preparation was placed on an infected mouse cornea, there was a reduction in the number of microorganisms recovered; this reduction correlated with the presence, type, and concentration of preservative.40 The preservative chlorobutanol 0.2% or 0.4% was much less effective than benzalkonium 0.01% or chlorhexidine 0.001% in inhibiting growth; benzalkonium 0.004% had little inhibitory effect, as did unpreserved anesthetic agents. The earliest in vitro studies showing microorganism growth inhibition added the local anesthetic directly to the incubation medium, exposing the organisms to it continuously. Under these conditions, the anesthetic agent can retard microbiological growth even if the preservative is not present.41 The local anesthetics tetracaine, benoxinate, and cocaine and the preservatives chlorobutanol and butyl parahydroxybenzoate could each alone inhibit growth. This effect depended on the drug concentration and the organism. Unpreserved proparacaine in concentrations of up to 0.5% did not show significant growth inhibition of the strains of staphylococci, Pseudomonas and Candida that were tested. Whereas suppression of organism growth is detrimental if the goal is to obtain a culture, this same suppression is of value if the goal is to prevent contamination of a reusable anesthetic preparation. Three commercial fluorescein 0.25%-anesthetic combinations were evaluated for their ability to regain sterility after contamination with Pseudomonas or staphylococci.42 The preparation containing the anesthetic agent benoxinate hydrochloride 0.4% with chlorobutanol 1% as preservative was more effective in regaining sterility than were the two different commercial preparations containing proparacaine hydrochloride 0.5% with thiomerosol 0.01%. INJECTION ANESTHESIA Subcutaneous injections of local anesthetics numb the skin of the lids, brows, and temporal areas served by the distal branches of the trigeminal nerve. Facial nerve motor fibers to the muscles in these structures run more deeply than the sensory fibers and are more variably affected by subcutaneous injections. In 1914 Auguste Van Lint43 described a technique for deliberately blocking motor conduction to the lids by injecting the anesthetic solution deeply, along the bones of the outer margins of the lateral and inferior orbital rim. By paralyzing the orbicularis muscle, lid closure during cataract surgery was prevented. Intraorbital anesthetic injections include subconjunctival,44 sub-Tenon's,45 epibulbar or peribulbar,46 and retrobulbar techniques. Not only is the ophthalmic branch of the trigeminal nerve anesthetized by injections into the posterior orbit, but so is the maxillary branch, which is exposed after it enters the orbit through the inferior orbital fissure. Because the needle tip cannot be visualized and the limits of anesthetic diffusion cannot be determined, there may be considerable overlap in the structures affected by these seemingly different techniques. Tracking of anesthetic solution along the needle pathway may also alter the tissues affected. When local anesthetic containing contrast material was injected behind the eye, either inside or outside the muscle cone, computerized tomography showed that the dye had diffused to both sides of the muscle cone within 3 minutes.47 The optic nerve is relatively protected from diffusion by being surrounded by an extension of the dural sheath. Retrobulbar injections usually reduce optic nerve function, but in a highly variable manner.48 Amaurosis and reduced cortical visual evoked potentials have been reported after peribulbar and retrobulbar anesthesia. The incidence of no light perception after peribulbar anesthesia is in the range of 20% to 25%.49,50 The oculomotor, trochlear, and abducens nerve branches within the orbit can be blocked by intraorbital injections. In addition, there is also an effect directly on the extraocular muscle fibers themselves; local anesthetics can prevent the depolarization of muscle fiber membranes as well as neuronal membranes. Such a combined mechanism may explain why peribulbar blocks also produce an effective eyelid akinesia. That is, the orbicularis oculi muscle fibers and facial nerve motor fibers are exposed to the anesthetic. Retrobulbar blocks alone, without a deliberate facial nerve block, produced total lid akinesia in more than 90% of patients by 5 minutes after the injection.51,52 Retrobulbar injection of anesthetics has been used to prevent eye movements during intraorbital and intraocular surgery. It has also been administered just before magnetic resonance imaging when a motionless eye is needed for better resolution of the orbital structures.53 A similar need for akinesia may result in retrobulbar injections for intraocular laser procedures and corneal refractive surgery. Intraocular injection of unpreserved local anesthetic, into the anterior chamber, has been given after the application of topical anesthesia. This has been effectively used in phacoemulsification. Retinal function, as measured by the electroretinogram, is not affected during surgery, nor are corneal endothelial cell counts reduced after surgery.54,55 However, routine use of intracameral local anesthesia seems to add little to the prevention of pain afforded by topical anesthetics alone; therefore, injection into the anterior chamber is best reserved for longer cases or when topical anesthesia fails.56,57 Factors Affecting Efficacy In 1996 the U.S. Pharmacopeia reported that injectable lidocaine hydrochloride was tied for fourth in the number of Drug Product Problem Reports received for the period May 27, 1993 through June 20, 1995. Of the 15 drugs for which there were 24 or more complaints, only lidocaine and insulin were mentioned exclusively for lack of therapeutic effect.58 SPEED AND VOLUME OF INJECTION. When four groups of 35 patients received peribulbar anesthesia of different volumes and different rates, the group receiving the highest volume (13.5 mL) at the fastest rate (12 mL per minute) had significantly better akinesia of the extraocular muscles without any increased injection pain.59 However, this larger volume was associated with a larger transient increase in intra-ocular pressure. TEMPERATURE. When three solutions, lidocaine, mepivacaine, and bupivacaine, were tested, the solubility of the anesthetic agent in each decreased as the temperature was increased from 14.5°C to 37.0°C.60 This was unexpected because solubilities are usually assumed to increase as the temperature increases. When peribulbar and retrobulbar injections were given to patients using local anesthetics at 20°C or 37°C, two of three studies found that warming the solutions reduced the injection discomfort.61,62 One study that found no comfort benefit to warming also found that increasing the temperature provided no improvement in extraocular muscle akinesia.63 HYALURONIDASE. Hyaluronidase depolymerizes hyaluronic acid, a component of connective tissue. In theory, addition of hyaluronidase should help the spread of the anesthetic through the tissues, increasing the rate of onset of action and the volume of tissue affected but having the disadvantage of shortening the duration of action because the anesthetic molecules diffuse away more rapidly. The addition of hyaluronidase 7.5 IU/mL to mepivacaine 2% significantly shortened the induction time of facial nerve blocks (1.3 ± 0.4 minutes with versus 2.9 ± 1.8 minutes without) and of retrobulbar blocks (3 minutes with versus 10 minutes without), but the use of hyaluronidase did not increase the success rate of retrobulbar blocks.64 Two concentrations of hyaluronidase (3.75 or 7.5 IU/mL) were equally effective when administered peribulbarly or retrobulbarly in 6 to 8 mL of anesthetic solution. Both were superior 10 minutes after injection to the anesthetic solution alone in achieving akinesias of the extraocular muscles, levator muscle, and orbicularis oculus muscle and in reducing the need for a supplementary block.65 Increasing the concentration of hyaluronidase to 15 IU/mL did not confer an advantage.66 When a larger anesthetic volume, 9 mL, was used along with a compressive device to lower intraocular pressure, addition of hyaluronidase 50 IU/mL was not superior compared with the anesthetic solution without hyaluronidase.67 The use of the compression device plus the large volume might have increased the anesthetic's diffusion, obviating any beneficial effect of hyaluronidase. When low volume sub-Tenon's injections of 0.5 mL with or without hyaluronidase 30 IU/mL were delivered at the equator of the globe and an intraocular pressure-reducing device was applied, the hyaluronidase-containing solution provided superior extraocular muscle and lid akinesia 10 minutes after the injection; however, there was no advantage or disadvantage to using hyaluro. Only thirtythree cadets graduated from Kelly Field in the fall. Many of those were seeking jobs with the airlines due to the restriction of funds for 2nd lieutenant pay for active duty. A few cadets volunteered to stay on for a year. Those going with the airlines would probably be lost for good, and those returning home would probably forget most of their training. It was a bleak picture. There was a recommendation to cut 15 percent of all pay, and the President had been given authority to cut flight payies that used solutions containing epinephrine showed no advantage to adding hyaluronidase.69 Hyaluronidase, after injection for facial nerve and retrobulbar blocks, has been reported to cause an allergic reaction consisting of periorbital edema and pruritis.70 Subsequent skin testing provided a positive response. Because the commercial preparation of hyaluronidase contained thiomerosol, it was tested separately; it produced no reaction. pH. Anesthetic solutions usually are commercially formulated to be in a pH range of 5.0 to 6.0. This favors formation of the ionic form of the molecule, which is more stable and increases the shelf-life of the product. When the pH of an anesthetic solution is increased, it is usually done so immediately before use. However, many anesthetic molecules remain stable for relatively long periods at physiologic pH. When the levels of bupivacaine and lidocaine were measured 24 hours after bicarbonate was added, sufficient to raise the pH to 7.4, there were no reductions in drug concentrations.71 Anesthetic blocks have been given with solutions after their pH has been increased. Increasing the pH increases the amount of nonionic drug molecules. The uncharged molecules are better able to penetrate cell membranes. When an anesthetic solution with a pH of 5.4 was compared with bicarbonate-adjusted solutions with a pH between 6.7 and 6.9, the peribulbar blocks using the higher pH solutions had a more rapid onset of action but no shorter time to complete akinesia.72 Furthermore, the higher pH solutions required more supplemental injections for an effective block. Other studies have confirmed a faster onset of action using higher pH solutions but found a shorter time to complete akinesia.73 In one of these, solutions of pH 3.9, 5.1, and 6.7 were compared; the last had the most rapid onset and frequency of complete akinesia.74 Another theoretical justification for increasing the pH has been patient comfort. Lower pH solutions may be more irritating to tissues. Subcutaneous eyelid injections of buffered anesthetic solutions at pH 7.4 were less painful to receive than those at pH 4.6.75 However, subcutaneously injected procaine at pH 4.3 produced less pain than lidocaine, pH 6.376 When the pain caused by the peribulbar injection of combination bupivacaine-lidocaine solutions at pH 4.87 or pH 7.44 were compared, there was no significant difference77. These findings tend to undermine any theories attributing tissue irritation to lower pH or comfort to increasing pH. VASOCONSTRICTIORS. The addition of a vasoconstrictor, usually epinephrine, at concentrations of 0.0005% to 0.001%, results in an anesthetic solution that retards its own absorption into the circulation. This prolongs the effect of the shorter-acting anesthetics (e.g., lidocaine) but may provide little or no benefit for the longer-acting ones (e.g., bupivacaine).78–80 The elevations in serum epinephrine caused by commercial preparations of local anesthetics containing epinephrine are probably no more than those caused by stress-induced adrenal gland release. In one study, facial nerve and retrobulbar blocks were performed with a total of 10 to 12 mL of lidocaine 2% containing 0.0005% epinephrine. The baseline mean ± standard error of the mean plasma epinephrine level was 116 ± 8 pg/mL.81 Seven minutes after the injections, this epinephrine level had risen to 429 ± 25 pg/mL, 270% more than baseline. However, this increase was not markedly different from that caused by the stress of public speaking. The baseline mean epinephrine level was 117 pg/mL plasma, and during speaking, the epinephrine level was 336 pg/mL plasma.82 PERMANENT ANESTHESIA Anesthetic agents act transiently (i.e., minutes to hours). Sometimes a more permanent hypalgesia or anesthesia is needed. This occurs when dealing with the chronically or intermittently painful blind eyes produced by neovascular glaucoma and phthisis bulbi. Ethanol injections, if not given in too high a volume and concentration, will destroy the poorly myelinated sensory fibers while having only a temporary effect on the more heavily myelinated motor fibers. The optic nerve, surrounded by its dural sheath, is usually well protected from the effects of the alcohol, unless the needle tip penetrates this covering. Ethanol has been injected into orbits containing seeing eyes to reduce the ocular pain of children who have had corneal transplants, thereby permitting postoperative examinations.83 Generally, however, the drug is reserved for eyes with littleor no visual potential. Although a single retrobul-bar injection of 1 mL 95% or absolute ethanol or2 mL of 50% ethanol might be sufficient to produce permanent comfort, often two or more injections are needed. The injection itself produces so much acute discomfort that it is recommended that the alcohol be preceded by an injection of anesthetic solution. This will confirm that the needle tip is within the muscle cone and prevent the subsequent pain from the ethanol. The needle is not removed after the anesthetic is injected; the syringe containing the ethanol is exchanged for that which contains the anesthetic. Up to several weeks of chemosis, ptosis, and extraocular muscle movement impairment may result. In seeing eyes with corneal transplants, concentrations of 20% to 95% ethanol have been used in volumes of up to 3 mL for the former and 1 mL for the latter. Of 25 eyes so treated, none had evidence of optic nerve damage, corneal graft failure (attributable to the injection), permanent muscle palsy, or permanent corneal anesthesia. However, there have been at least two case reports of loss of vision after retrobulbar alcohol injections. One was associated with an immediate loss of vision and subsequent optic atrophy; presumably the injection was into the optic nerve.84 In the second case, a patient with acute glaucoma had a central retinal artery occlusion after retrobulbar injection of 80% ethanol; the role played by the glaucomatous elevation of intraocular pressure is unclear.85 Alternatives to ethanol have been suggested, such as retrobulbar injections of 0.5% quinine urea hydrochloride in 2.5% benzocaine or of 25 mg of chlorpromazine.86–88 |
SIDE EFFECTS, TOXICITIES, AND ALLERGIES |
ORBITAL Bupivacaine Bupivacaine has a special role among local anesthetics because it is much more myotoxic to the skeletal muscle of experimental animals than other anesthetics are. The mechanism involved may be reduced protein synthesis and may require the presence of extracellular calcium.89–91 Extraocular muscle fibers of primates are relatively more resistant to developing this toxicity than are those of lower mammals.92,93 Multiple clinical papers have theorized that the postoperative diplopia, especially vertical diplopia, and ptosis being reported were caused by myotoxicity from retrobulbar and peribulbar bupivacaine.94–97 Bupivacaine is a racemic mixture of levo- and dextobupivacaine. The former enantiomer exhibits less myocardial toxicity in animal studies.98 Levobupivacaine 0.75% appears as effective as the racemic bupivacaine 0.75% in producing akinesia and anesthesia after peribulbar injections.99 Another commercially available alternative to bupivacaine is ropivacaine. It is a long-acting anesthetic that, as a 1% solution, has been given as a peribulbar block and compared with combination solutions with final concentrations of lidocaine 1% and bupivacaine 0.375%.100,101 Although there were no differences in anesthetic effect and extraocular muscle akinesia by 8 minutes after the injection, some discrepancies exist in the literature as to whether the ropivacaine solution lagged early on in producing extraocular muscle paresis and whether it was superior in producing lid akinesia.102 Increased Intraocular Pressure It is usually an advantage to have a low intraocular pressure when an eye is lacerated by trauma or when a penetrating surgical incision is to be made. However, immediately after a retrobulbar or peribulbar injection, the intraocular pressure is increased, presumably because of the mass effect of the solution. By 5 minutes after the injection, the intraocular pressure tends to have returned to baseline and by 8 to 10 minutes after the injection, the intraocular pressure has decreased significantly. This sequence has long been known.103,104 The presence or absence of epinephrine in the anesthetic solution has little or no influence on the sequence.105 The explanations for the reduction in intraocular pressure have varied (e.g., paralysis of the extraocular muscles, a reduced ciliary body secretion, and an indirect ischemic effect caused by compression of the blood vessels). In one study, the mean elevation in intraocular pressure was 5.8 mm Hg 1 minute after the injection, with one eye having an increase of 25 mm Hg;106 patients with glaucoma tended to have greater increases than those without. Retrobulbar local anesthetic, 4.5 mL, has been reported to cause a 50% reduction in the ophthalmic artery pulse pressure when measured 10 minutes after injection.107 The mechanisms causing the rare central retinal artery or vein obstructions found postoperatively are not clear, but the injection of a retrobulbar or peribulbar solution may play a role.108,109 CENTRAL NERVOUS SYSTEM Direct injection of the anesthetic solution into the cerebrospinal fluid surrounding the optic nerve has been blamed for producing central nervous system toxicity after retrobulbar blocks. An alternative explanation has been that direct injection into an ophthalmic artery branch results in retrograde flow, back to the internal carotid artery, and then antigrade flow to the brain.110 In a retrospective study of 6,000 retrobulbar blocks, the incidence of central nervous system signs and symptoms was 0.27%.111 Extraorbital cranial nerve pareses, amaurosis, grand mal seizures, and respiratory arrest have occurred.112–114 It is unlikely that these events were the result of absorption from the orbital tissue producing toxic blood levels. To put this possibility in perspective, lidocaine is usually administered for the treatment of ventricular tachycardias by using an intravenous bolus injection of 50 to 100 mg, followed by a continuous drip of 2 to 4 mg per minute.115 Five milliliters of lidocaine 2% anesthetic solution contains only 100 mg of lidocaine. Intravenous lidocaine, 2 mg/kg, before intubation has been recommended to reduce the incidence of postoperative vomiting, from more than 50% to less than 20%, in children undergoing strabismus surgery.116 Intravenous lidocaine, 1.5 mg/kg in children and 2 mg/kg in adults, has been advocated for prevention of the intraocular pressure increase that occurs during intubation for general anesthesia.117 Serum lidocaine and bupivacaine levels of seven patients who had respiratory arrests after retrobulbar anesthesia were not significantly increased compared with a control group.118 The therapeutic range for lidocaine treatment of cardiac arrhythmias is 2 to 4 μg/mL plasma. After injection of 5 mL lidocaine 1%, the mean peak plasma levels of lidocaine were mandibular seventh nerve block, 0.3 (range, 0.25–0.67) μg/mL and eyelid seventh nerve block, 0.4 (range, 0.16–0.99) μG/Ml.119 When peribulbar blocks were given with no more than 10 mL of a solution containing final concentrations of 1% lidocaine and 0.375% bupivacaine, the peak mean drug concentrations were found 10 to 20 minutes after injection: 0.7 μg lidocaine/mL and 0.35 μg bupivacaine/mL.120 The addition of epinephrine significantly reduces the peak plasma levels and total amount of drug absorbed into the cir-culation for the 5 hours after peribulbar injectionsof lidocaine and bupivacaine.121 The presence of0.005% epinephrine reduces the mean peak plasma concentrations of lidocaine and bupivacaine to 57% and 61%, respectively, of those obtained using solutions without epinephrine. The addition of hyaluronidase does not cause increased peak drug levels or total drug absorption. An important factor in determining whether a given plasma level of local anesthetic may be toxic is the quantity of α-1 acid glycoprotein. This protein binds basic drugs, such as lidocaine. Neonates and cirrhotic patients have lower levels of α-1 acid glycoprotein, and patients with acute inflammatory responses have higher levels.122,123 METHEMOGLOBULINEMIA This condition can be caused by the inability of NADH-dependent methemoglobin reductase to reduce the hemoglobin iron atom from Fe+ 3 to Fe+ 2. Local anesthetics are a potential cause of surgery-related methemoglobulinemia, and prilocaine is the most potent in this regard.124 Combination retrobulbar blocks and facial nerve blocks, with a total of 8 mL prilocaine 1%, produced a mean peak serum blood level of 0.85 μg/mL, 3 to 7 minutes after the injection;125 the range was from 0.54 to 1.10 μg of prilocaine. Because prilocaine has less central nervous system and cardiovascular toxicity than lidocaine, complications other than a clinically insignificant methemoglobulinemia are rare. However, a peribulbar injection of prilocaine has been implicated as a contributory factor in the development of acute methemoglobinemia with respiratory distress. Improvement occurred rapidly with the injection of the antidote, methylene blue, 1.5 mg/kg.126 ALLERGIES The most commonly reported anesthetic allergies are contact allergies from topically administered drugs. Anaphylaxis is rare, and if it were to occur, it would most likely be from a sensitivity to an additive in the solution rather than to the anesthetic agent itself.127 However, at least one death has been reported from a rechallenge to a local anesthetic after instilling a drop in the conjunctival sac.128 In a study of 71 patients suspected of an allergy to a local anesthetic, only 8% had a history of urticaria or wheezing. Forty-two percent had histories most compatible with toxicities or vasovagal responses.129 Skin testing was positive in only 5 of 59 patients rechallenged and at no greater incidence in those with histories most compatible with allergy than those without. Allergic reactions can be to metabolic products, so negative skin testing does not rule out an allergy.
|
