Chapter 57 X-Linked Ophthalmic Disorders KAMMI B. GUNTON, IRFAN ANSARI and LEONARD B. NELSON Table Of Contents |
The approach to hereditary ocular disease is undergoing a profound transition
with the information provided by modern molecular genetics. The
Human Genome Project has begun to provide the human deoxyribonucleic
acid (DNA) code for an increasing number of specific diseases, and
the application of this data to human disease is still ongoing.1,2 Every aspect of disease management may eventually be affected by decoding
its genetic basis. Prenatal diagnosis and carrier state detection
should allow early diagnosis so that treatment can be directed at prevention
with targeted protein treatments or gene therapy prior to the manifestation
of the disease.3,4 A clear understanding of genetic principles begins to allow the applications
of molecular genetics to identify genes associated with disease, to
clone or isolate those genes, to identify the gene product and the

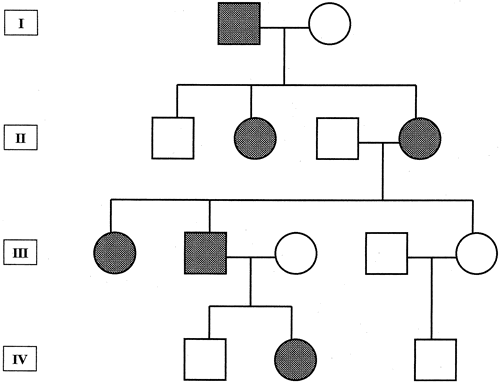

key pathologic events, and finally to design treatment strategies.5 The human genome consists of 22 paired chromosomes and one pair of sex chromosomes, X and Y. Females have two copies of the X chromosome, whereas males exhibit an XY genotype. The Y chromosome carries information that determines secondary male characteristics. Since males have only one X chromosome, recessive genes on the X chromosome in males are expressed phenotypically. Females with one normal allele and one disease allele are called carriers.6 The Lyon hypothesis predicts that one of the X chromosomes in a female is randomly inactivated in somatic cells early in embryogenesis.7 This inactivation may allow the display of some signs of the disease in carrier females. Diseases carried on the X chromosome are, therefore, genetically linked to the sex of the patient. The X chromosome also has a disproportionately large number of genes coding for ocular traits8 (Table 1, Fig. 1). Given the linkage to the sex of the patient, pedigree analysis may identify some diseases carried on the X chromosome. In X-linked recessive diseases, pedigree analysis will reveal that more males are affected than females, and affected fathers pass the carrier state to 100% of their female offspring and none of their male offspring. Furthermore, both male and female offspring of a carrier female have a 50% possibility of inheriting the affected allele. Carrier females are unaffected, but may show variable signs of the disease9–11 (Fig. 2). X-linked dominant disease is rare, but identifiable by pedigree analysis. Females are affected. There are approximately twice as many affected females as males because females carry a larger percentage of all X chromosomes. The male genotype is often lethal, but if it is viable, affected males transmit the trait to all of their female offspring and to none of their male offspring. Affected females have a 50% probability of passing the disease allele to both their male and female offspring9–11 (Fig. 3). These inheritance patterns may allow the localization of the disease gene to the X chromosome and are important for genetic counseling. Isolation of a specific gene may employ several of the tools of molecular genetics, including restriction endonucleases and gel electrophoresis.3

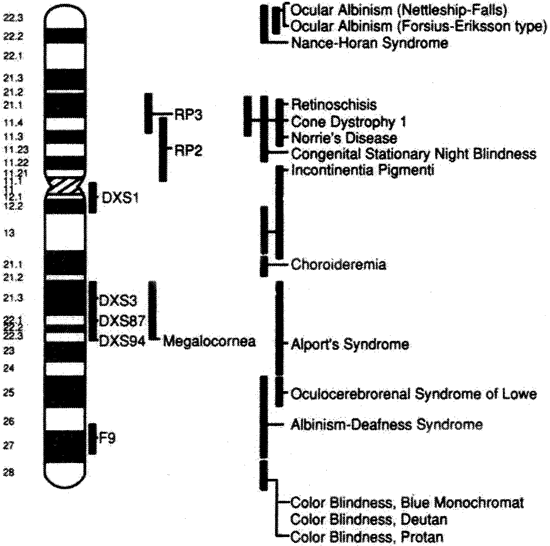

Table 1. X-linked Diseases With Ocular Manifestations Aicardi syndrome
A specific restriction endonuclease enzyme will cleave DNA at a particular recognition site for that enzyme, cutting the DNA into manageable fragments in a predictable and reproducible manner.12 Because mutations in genes may be caused by base pair changes, deletions, or rearrangements of the genetic material, the genetic sequence in a mutation will be modified. If the modification occurs within a recognition site for a restriction endonuclease or includes an insertion or deletion of genetic material adjacent to a recognition site, the fragment lengths produced by the restriction endonuclease will differ from the nonmutated DNA. Restriction endonucleases, therefore, may be used to identify these mutations. The different-size fragments are referred to as restriction fragment length polymorphisms (RFLPs). Gel electrophoresis of the fragments allows the separation of biological molecules based on their size or secondary and tertiary structure. The technique can be tailored to exploit the characteristic of interest by manipulating the components of the gel. Restriction endonucleases and gel electrophoresis are combined in Southern blot analysis. The total human genome is digested with a particular restriction endonuclease. The fragments are then separated by gel electrophoreses and transferred to a paper medium from the gel. A DNA probe, which is a unique sequence of DNA of interest labeled with either a radioactive or other type of marker, is hybridized with the paper to look for a specific sequence of DNA. Southern blot analysis has many applications, including the search for gene deletions and rearrangements in a pedigree. These molecular genetic techniques are also employed in determining the location of a gene within the X chromosome. The location of a gene of interest can be estimated by using linkage analysis. Linkage analysis employs specific markers whose position on the chromosome is known relative to each other. These markers must exhibit many different alleles in the population to allow a specific allele to be traced through the pedigree. By comparing the inheritance of these markers to the inheritance of the disease of interest in a pedigree, linkage can be ascertained. Linkage implies that the disease gene is present near the same chromosomal locus as the marker. The closer together two genes are on a chromosome, the less likely they are to recombine during meiosis. Thus, if the disease gene and the marker are close together, they are not likely to separate and will be inherited together. This linkage can be detected with Southern blot analysis. For example, a RFLP is a type of linkage marker. If an endonuclease cleavage site is near a gene of interest, then RFLPs are inherited along with the disease. When screened, patients with the disease will also inherit the same RFLP pattern.13,14 Another type of linkage marker is a variable number of tandem repeats (VNTRs). VNTR polymorphisms are regions of DNA where a particular short sequence of DNA is repeated. The number of repeats is highly variable and can be detected in genetic analysis. A third possible marker is a dinucleotide repeat or “CA” repeat.13 If these sequences are located close to a gene of interest, then both the gene of interest and the number of repeats will be inherited together. This pattern can be detected in offspring. Testing for these linkage markers can be used in prenatal diagnosis and carrier state detection. Linkage analysis suggests the approximate location of the disease gene on a chromosome. Identification of the specific gene may be by the candidate gene approach or the positional cloning of all the genes in the region until the disease gene is isolated. A candidate gene must either be expressed in the disease tissue or have a known or suspected function in the diseased tissue. In the positional cloning method, there are no assumptions made about the nature of the gene product or its function, but this approach is labor intensive and time consuming. On the other hand, identification of a new gene product may lead to insights into the physiology of diseases. Upon identifying a gene, the functional coding regions of the gene, or exons, are separated from the noncoding introns. Mutations are alterations in the genetic code. Mutations can be classified in the following categories: missense mutations, nonsense mutations, frame shift mutations, and splice site mutations. Missense mutations change a single amino acid in the protein product due to substitution of a nucleotide in the coding sequence. Nonsense mutations result in a stop codon that leads to a truncated protein. Frame shift mutations are caused by nucleotide deletions or insertions that completely alter the protein product. Splice site mutations affect the transcription of DNA to RNA by altering the exon-intron boundaries of the gene. Base pair mutations may be designated either by the nucleic acid substitutions followed by the numeric position within the gene product, such as GGC-to-GAC base 164, or by the amino acid substitution at the numeric position in the gene product, such as C203R. Focus on identifying a gene product may lead to a greater understanding of the pathogenesis of the disease in question. Antibody labeled to the gene product can then be used to isolate the location of the protein in the ocular tissue. The localization may help determine the function of the protein. In the future, gene product identification may also allow specific target protein treatment. The X chromosome carries many genes for ocular diseases as well as for systemic diseases that have ocular manifestations. The systemic diseases are discussed elsewhere in this book. This chapter focuses on the more frequent and severe ophthalmic diseases, including choroideremia, color vision deficits, megalocornea, Norrie's disease, ocular albinism, retinitis pigmentosa, X-linked cataracts, and X-linked juvenile retinoschisis. Discussion focuses on the influence of molecular genetics on diagnosis and treatment. |
CHOROIDEREMIA |
Choroideremia is a bilateral progressive dystrophy of the retinal pigment
epithelium (RPE), photoreceptors and choroid that results
in progressive loss of peripheral vision with sparing of central vision
until late in the disease.15 Initially described by Mauthner in 1872,16 the disease was thought to be a result of a congenital absence of the
choroid. However, it is now apparent that absence of the choroid is a
late feature in the disease process and is not congenital. The prevalence
varies with the population studied but has been estimated to be 1:100,000.10,17 Most affected males with choroideremia present with symptoms of nyctalopia in the first decade of life.18 Progressive peripheral visual loss ensues. By the third to fourth decade, there is severe constriction of the visual field with anular scotomas or tunnel vision on visual field testing.19,20 Central visual acuity is typically reduced to 20/200 or worse by age 50. Progressive myopia and disorders of color vision have also been reported. Choroideremia is generally isolated to the ocular structures, but sensorineuronal hearing loss has been reported in some affected individuals.17 Choroideremia displays wide variability in disease severity and rate of progression. Clinically, funduscopic changes are initially apparent in the mid-peripheral fundus, with progression toward the macula and the far-periphery (Fig. 4A). These changes include RPE stippling and atrophy, with focal loss of choriocapillaris and prominence of the underlying choroidal vessels surrounding the optic disc (Fig. 4B). Early in the disease process, areas of skip lesions are clearly evident on fluorescein angiography. Additionally, scattered intraretinal pigment clumps at the equator and midperiphery may be noted. At this early stage, abnormal light and dark adaptation can be detected, and the electroretinogram (ERG) reveals reduced rod responses. Patches of chorioretinal degeneration occur near the equator and eventually advance, with loss of the normal choroidal pattern and diffuse RPE and choroidal atrophy except in the macular region. However, no intraretinal pigment migration occurs, as in retinitis pigmentosa.21 The macular area is the last to be affected and is usually the only area of normal tissue left in the late stages of the disease. In the final stages of choroideremia, the scotopic ERG is unrecordable.16,18 Female carriers rarely may manifest a milder version of the disease but typically are asymptomatic, although they may exhibit some of the fundoscopic changes in the retina. The typical appearance involves a mottled mosaic fundus with linear retinal pigmentation and punctate areas of pigment epithelial atrophy.16 Histopathologically, loss of the choroid, RPE, and outer retinal layers are evident in eyes of patients with advanced choroideremia.22 In histological samples with intact retinal photoreceptors, the RPE and its basement membrane are duplicated and thickened. One copy is pigmented and the other nonpigmented.23 Female carriers have also shown diffuse abnormalities of the RPE on histopathologic examination. These abnormalities include patchy depigmentation of the RPE, coarse pigment granularity, and peripheral clumps of pigment. Scanning electron microscopy reveals pleomorphic RPE cells with loss of polygonal structure and villi. There is preservation of the underlying choriocapillaris and Bruch's membrane.24 These observations support the hypothesis that the abnormal RPE cell is the primary feature in choroideremia, with secondary effects on the retina and the choroid.24–26 However, controversy exists as to the actual site of pathogenesis, because several other reports have hypothesized an abnormality in the choriocapillaris.27–29 In addition, rod photoreceptors have recently been identified as a possible primary site of degeneration in this disease.30 Choroideremia is inherited in an X-linked recessive pattern.31 The genetic focus for choroideremia, now known as the choroideremia (CHM) gene, has been identified by linkage analysis and cloning to Xq21.2.21,32–34 The CHM gene consists of 15 exons and encodes a ubiquitously expressed protein, the Rab escort protein-1 (REP-1) of geranylgeranyl (GG) transferase.35,36 This enzyme facilitates isoprenylation of cysteine residues in Rab proteins, a family of guanosine triphosphate (GTP)–binding proteins that regulate vesicular traffic. REP-1 is one of the two components of Rab GG transferase. REP-1 binds to Rab proteins and allows the second catalytic component of Rab GG transferase to transfer the GG moiety to the Rab protein. As a consequence of this chemical reaction, the Rab protein becomes more hydrophobic and integrates itself into the cell membrane where it is activated to a GTP-bound state. The Rab protein is then able to perform vesicular transport and membrane regulatory functions.24,37 A marked deficiency in the functional activity of Rab GG transferase was found in lymphoblasts of choroideremia patients. Residual enzyme activity has been detected in patients with choroideremia. This may be due to partial compensation by another gene—choroideremia-like (CHML)/REP-2—located on chromosome 1. It is hypothesized that CHML/REP-2 cannot fully compensate for deficiency of REP-1. The ocular structures, in particular, may be more sensitive to the presence of REP-1 for adequate activity of Rab GG transferase, explaining why the clinical features of choroideremia are confined to the eye.17 The exact site of pathogenesis has not yet been identified. Mutations that alter the CHM gene and result in the truncation or absence of the CHM/REP-1 protein have been implicated in choroideremia. These mutations include nonsense, frameshift, and splice-site mutations. Missense mutations have generally not been identified, with one possible exception.38 Most mutations eventually lead to the introduction of a premature stop codon which results in a truncated or absent gene product.39–41 No specific exon in the CHM gene is more susceptible than others to mutations.42 Interestingly, the mutations described in European, Canadian and American families vary significantly from those reported in Japanese families. This implies an independent origin for these separate mutations.42 Prenatal diagnosis of choroideremia is performed during the 12th week of prenancy with indirect linkage analysis using a linked polymorphic DNA marker to analyze chorionic villi.43,44 The protein truncation test is another useful diagnostictool. It can be used to detect the alteration causing chorioderemeia n in unrelated patients by detecting truncated protein products.45 Choroideremia can also be confirmed by immunoblot analysis utilizing anti-REP-1 antibody. The absence of the REP-1 protein in peripheral blood samples is diagnostic of choroideremia.46 Despite better understanding of the molecular components of choroideremia, the exact pathogenesis of the disease is unknown and no treatment currently exists. Duncan and coworkers evaluated the effect of lutein supplementation in patients with choroideremia over a 6-month period. Supplementation led to an increase in serum lutein and macular pigment levels; however, no change in central vision was noted.48 |
COLOR VISION DEFECTS |
Three classes of cone photoreceptors encode normal color vision. Red, green, and
blue cone opsin pigments are sensitive to long (562 nm), middle (530 nm) and short (420 nm) wavelengths, respectively.48 The absorbance spectrum of these pigments is maximum at the wavelength
specified above but is broad enough to cover the entire spectrum of visible
light. Each photoreceptor cone contains only one pigment opsin
in its outer segment. A color is detected by the mixture of signals from
these pigment opsins, allowing the perception of the normal array of
colors. Since the system of color detection is a three-pigment system, normal color vision is trichromatic. If one of the pigments is absent, the person is known as a dichromat. A further descriptor is added to denote the specific opsin absent. For example, a protanopic dichromat lacks the red pigment, whereas a deuteranopic dichromat lacks the green pigment. A tritanopic dichromat, lacking the blue pigment, is rare. Approximately, 8% of Caucasian males and 0.5% of Caucasian females exhibit some abnormality of red/green color detection.49 Color deficits are equal in each eye and nonprogressive. The majority of persons with red/green deficiencies have abnormally functioning pigment rather than complete absence of pigment. The abnormal pigment has an altered absorption spectrum. Deuteranomalous trichromats have abnormal green pigment and are five times more common than protanomalous trichromats with abnormal red pigment. If both red and green pigments are missing, the individual has blue-cone monochromacy and essentially lives in a monochrome world. There are several different methods for testing color vision. These tests reveal the axis of color deficiency, and the severity of the abnormality. The most common test is the Ishihara pseudoisochromatic plates assay. The 38-plate edition of the Ishihara diagnostic plates correctly classified 98.7% of patients.50 The Rayleigh color match test with an anomaloscope is commonly used for research purposes and can detect not only the axis of color deficiency but also abnormalities in maximum absorption spectrum. The anomaloscope projects a yellow light onto half of a screen. Patients are asked to adjust the ratio of a mixture of red and green light projected on the other half of the screen until both halves of the screen match. Persons with normal color vision use a highly reproducible ratio of red to green light. Dichromats match the yellow standard with any ratio of red and green light, including red or green light alone. Anomalous trichromats require a higher proportion of either red or green light to make the match. Other tests include the Farnsworth D-15 and the Farnsworth-Munsell 100-hue tests. In all test methods, sufficient illumination must be maintained for proper testing. The understanding of color vision deficits was revolutionized by the cloning of the three visual pigments.51 These pigments are transmembrane proteins that confer color sensitivity to the cone photoreceptors. Color pigments are composed of 348 to 364 amino acids.51 Each pigment has seven hydrophobic sections arranged in seven helices that span the photoreceptor membrane.52 These transmembrane segments are linked by extracellular hydrophilic loops. The helices create a pocket for the binding of retinal. Retinal becomes activated by a photon of light and changes from 11-cis retinal to the all-trans retinal, causing activation of the photoreceptor. The maximum activation depends upon the wavelength sensitivity determined by the particular pigment protein to which the retinal is bound. The red and green opsin pigments differ at only 15 amino acid sites.52 These differences are located within the membrane helices and in close proximity to the retinal binding site. The electronic milieu surrounding the retinal is important in determining the ease of transformation of the retinal.53 This milieu is determined by the charges of the amino acids of the visual pigment. Amino acid substitutions that alter the net charge may promote ease of transformation, which changes the maximum wavelength of activation of the photoreceptor. The three classes of pigments vary in length, but the helices and the extracellular loop structures are highly conserved. Two cysteine residues within the first and second extracellular loops form a disulfide bridge essential for the proper folding of the protein. These cysteines are highly conserved.52 Alterations in critical amino acid sequences can cause mutations that render a pigment inactive or change the maximum absorbance spectrum of the pigment. The blue pigment gene is located on chromosome 7, and the red and green pigment genes are located on the X chromosome, Xq22-q28. The red and green pigment genes are arranged in a head-to-tail tandem array. Each gene consists of six exons separated by long noncoding introns. The red gene is approximately 15.1 kilobases (kb) in length and the green gene is 13.2 kb. The primary codons involved in the spectral tuning of these two pigments are located in exon 3 (site 180) and exon 5 (sites 277 and 285).51,54 A single, red pigment gene is located at the 5' position of the pigment array, followed by one or more green pigment genes.55 A locus control region is located upstream of the red pigment gene. This region is essential for the expression of the particular pigment in the cone outer segment. Individuals with multiple green pigments have only one green pigment expressed.56 In one study, photoreceptors of 92% of individuals expressed the first two pigments arranged in the color gene array.57 Although it is generally accepted that the green gene expressed is usually the most proximal one in the gene array,58 other studies present data that conflict with this hypothesis.59 The red and green pigment genes are susceptible to mispairing during meiosis owing to the similarity in sequencing and their close proximity on the X chromosome. This leads to unequal crossing over, with deletion of a gene from one chromosome and its addition to the other. If the crossover occurs within one of the pigment genes, a hybrid gene is formed. These hybrid genes are responsible for anomalous color vision.52 Since sites 277 and 285 are important in the determination of wavelength maximum absorbance and are in close proximity, they are likely to remain together in hybrids. Exon 5, therefore, largely determines the maximum absorption spectrum of the visual pigment.60 Hybrids with the red codons in exon 5 but the green codons in other exons can have a maximum absorption shifted from the 562 nm expected of red pigment opsins to between 545 and 557 nm.61 Protan defects have been associated with red-green hybrid genes, and deutan defects with either green pigment gene deletion or a green-red hybrid gene.62–64 Several point mutations in the pigment genes have been well described. Mutations substituting critical amino acids result in pigments with no absorbance of light or an altered absorbance spectrum.65,66 One mutation, C203R, changes the cysteine required for the disulfide bridge. This destabilizes protein folding and renders the mutated protein unable to function.65 If both the red and green pigment genes are nonfunctional, blue cone monochromacy results.67 Because of the X-linked recessive nature of color blindness, females do not exhibit the color deficiency phenotype, but carrier females can be detected by genetic analysis.68 These female carriers do show some reduced color purity discrimination when tested with more extensive methods69 and may express more than three pigments owing to random inactivation of one X chromosome.70 Despite the better understanding of the specifics of the visual pigment genes, it remains difficult to predict a person's phenotype for color vision. Normal individuals often possess green-red hybrid genes,62 and individuals with color deficits can possess normal pigment genes. Lack of correlation of the genotype with the phenotype found on testing may be due to selective gene expression in the red/green array.58,62,71 The locus control region determines which gene is expressed in each photoreceptor. The exact gene expressed may also depend on the degree of folding or looping of the X chromosome that brings the locus control region into contact with a single promoter region.62 ERG has been proposed to detect the spectral sensitivity of the photoreceptors to more accurately determine which genes are expressed.72 Nevertheless, other factors, such as limitations in testing methods, may influence color detection. Local ocular factors may also influence maximum spectral absorbance, such as preretinal absorbance of light, variation in photopigment optical density, and other optical effects within the photoreceptor.64 At present, although it is not possible to predict an individual's maximum absorbance spectrum for each pigment based on the genotype,56 in general, the principles governing color detection are understood. |
MEGALOCORNEA | |
Megalocornea is a rare congenital condition characterized by bilateral
symmetric corneal enlargement, with the horizontal diameter greater than 13 mm
by 2 years of age. Although there are both autosomal dominant
and autosomal recessive variants of megalocornea, the most common hereditary
pattern is X-linked recessive, which was first described
in 1914 in a kindred of 17 affected males.73 The differential diagnosis of megalocornea includes congenital glaucoma, ectopia
lentis et pupillae,74 congenital miosis,75 and Reiger's anomaly.76 The clinical characteristics of X-linked megalocornea include a cornea with normal central topography and with corneal enlargement occurring at the limbus.77 The corneal horizontal diameter ranges between 13 and 16.5 mm (Fig. 5). The corneal endothelial cell count, density, and morphologic features are normal. The cornea has normal thickness and translucency. Importantly, megalocornea occurs in absence of elevated intraocular pressure. The visual acuity is usually preserved. The other clinical characteristics include enlarged anterior chamber depth, prominent iris processes, increased pigmentation in the anterior chamber angle, Kruckenberg's spindle, iris stromal hypoplasia, iridoensis, miosis,78 posterior subcapsular cataracts, and minimal myopia with less than 2 diopters (D) of with-the-rule astigmatism.79,80 Megalocornea is generally nonprogressive, although in one pedigree the onset of arcus lipoides and mosaic corneal dystrophy occurred in early adulthood.81 The arcus lipoides occurs in the absence of hypercholesterolemia. Female carriers of megalocornea may exhibit a slight increase in corneal diameter,82 although the majority of carriers show no signs of megalocornea.81 Megalocornea is generally an ocular isolated finding. Associations with other genetic syndromes do not occur with this X-linked disease. Various other disorders that exhibit megalocornea include Marfan syndrome,83 Sotos syndrome (cerebral gigantism),84 X-linked ocular albinism,85 ichthyosis,86 nonketotic hyperglycinemia,87 and Rieger-type syndrome.88 Megalocornea is typically diagnosed by its clinical features and pedigree analysis. However, in infants examination under anesthesia maybe required to differentiate megalocornea from congenital glaucoma. Biometric data may be obtained to confirm the large corneas, identify the short radius of the cornea, and measure the anterior chamber and vitreous depth. The anterior chamber depth in megalocornea is greater than the mean plus two standard deviations, and the vitreous depth is short.89 The short corneal radii give a globular shape to the cornea, which is pathognomonic for megalocornea if the cornea is less than 15 mm in diameter. Intraocular pressure is normal and specular microscopy reveals normal endothelial cell density, in contrast to the diminished densities in congenital glaucoma. The gene locus for X-linked megalocornea (XLM) has been linked to the X chromosome markers DXS87 and DXS94.90 Linkage analysis has isolated the gene locus to the region of Xq21-Xq22.80 XLM has not yet been isolated, nor has its gene product been identified. The etiology of megalocornea has been proposed to be an abnormal growth rate of the ectoderm of the optic cup embryologically, resulting in enlargement of the ciliary ring.91 This enlargement leads to enlargement of the entire anterior segment of the eye and shortening of the posterior segment, which is seen in megalocornea. The gene product of XLM is, therefore, hypothesized to control the growth of the ectoderm into the optic cup. Further studies are needed to isolate the gene and gene product. Since the disease is proposed to occur in early embryogenesis, carrier state detection and genetic counseling would be the aim of molecular diagnosis. |
NORRIE'S DISEASE | ||
Norrie's disease (ND) is a bilateral retinal dysplasia with
degenerative and proliferative changes in the retina and vitreous
that result in retinal detachment and progressive atrophy of the eyes. It
was first described in 1927 in affected males who subsequently developed
complete retinal detachments.92 The following ocular manifestations have also been reported: falciform-fold
formation in the retina, retinal pigment epithelium proliferation, persistent
hyperplastic primary vitreous, vitreous hemorrhage, iris
synechiae, glaucoma, and within the first few months of life, the
formation of cataracts and corneal opacities.93–95 The ophthalmic manifestations vary, and intrafamilial phenotype variability
is high.96 The systemic manifestations of ND include mild to severe mental retardation in one third of cases.93 Another third exhibit a progressive decline in cognitive function, often with psychotic features. The majority of affected infants have normal cognitive development until 2 years of age, and then gradually begin losing skills through adulthood. The remaining third of children are cognitively normal. Warburg reported sensorineuronal hearing loss in one third of all children that began in the third decade of life.93 Although ND has also been reported to have characteristic facies including fine features, narrow nasal bridge, hypotelorism, flattened malar region, thin upper lip, large ears,97 and other features such as microcephaly, cryptorchidism and limb anomalies,98,99 other series of patients with ND have not exhibited these systemic features.100 The differential diagnosis of ND includes all causes of leukocoria in infancy including retinoblastoma, persistent primary hyperplastic vitreous, familial exudative vitreoretinopathy, and Coat's disease. The diagnosis of ND can be confirmed with genetic testing for the ND gene. Newborn males often present with a vascularized retrolental mass consisting of hemorrhagic vascular and glial tissue (Fig. 6). Arrest in embryonic retinal development during the third to fourth month of gestation has been proposed as a cause of ND.101 Supporting this hypothesis, histopathologic studies revealed neuroblastic inner and outer layers containing rod and cone precursors but complete absence of retinal blood vessels in ND102 (Fig. 7). The vascular nature of the retrolental mass has led others to hypothesize that a primary defect in vascular proliferation causes ND.103 The initial avascular retina could lead to neovascularization that results in the retrolental mass.
ND is transmitted in an X-linked recessive pattern. Males are affected, and carrier females either show no retinal or electrophysiologic abnormalities or some degree of the ocular manifestations of ND due to unfavorable X-inactivation.95 The ND gene has been sequenced to Xp11.3.104,105 The ND gene is 28 kb in length and consists of three exons with two polyadenylated signals, a poly A tail, and a 5' region rich in pyrimide sequences that may regulate expression of the gene.106 The ND gene has a promoter region 90 bp upstream. The ND gene encodes a 133 amino-acid protein called norrin. It is expressed in many human tissues, including the fetal eye, brain, lung, kidney, and cochlea and the adult brain and muscle.107 A signal peptide at the N-terminus of norrin suggests that this protein is secreted. The exact function of norrin is yet unknown. Norrin has a three-dimensional (3D)structure similar to that of transforming growth factor-β.108 The receptor interaction site of norrin is proposed to be in position 58 to 63. Subsequently, mutations in this region have all been reported in ND.96,108 There is a highly conserved “cysteine knot motif.” This motif consists of a series of cysteine amino acids that provide the 3D stability of the norrin protein.109 This region shows homology to proteins with growth factor–like activity. Multiple mutations have been reported in the “cysteine knot motif” region as well.96,110 Other mutations resulting in ND involve the first exon of the ND gene, which is normally not translated.110 Nevertheless, the first exon is hypothesized to alter the splicing of the gene or influence the stability of transcription or translation efficiency. Mutations in the first exon, therefore, would be expected to result in ND. Mutations have been described in more than 90 patients with ND. Missense mutations are most common (50%), followed by deletions (15–20%), and nonsense mutations (13%). Although many mutations in the ND gene have been identified, there is currently no direct correlation between the genotype and phenotype of ND,96 except that mutations at position 121 of the gene are proposed to give rise to a less severe phenotype.107 Mutations in the ND gene are implicated not only in Norrie's disease, but also in X-linked familial exudative vitreoretinopathy (FEVR),111 retinopathy of prematurity, and Coat's disease.107 FEVR is characterized by abnormal neovascularization of the peripheral retina, which can progress to an exudative process with macular traction or retinal detachments. FEVR is bilateral and symmetric but has variable expressivity, similar to ND. FEVR is typically transmitted in an autosomal dominant pattern, but X-linked cases have been reported.112 The X-linked FEVR gene was shown by linkage analysis to be close to the ND gene.113 Retinopathy of prematurity occurs in premature infants due to abnormal development of the retinal vasculature postnatally. Coat's disease is also characterized by abnormal development of the retinal vasculature, although this disease occurs unilaterally. Further understanding of the exact role of norrin may help elucidate the biological pathways of all of these associated diseases. Norrin may have an important function in vascularization of the inner retina.Through its role as a growth factor, it may stimulate migration of vascular mesoderm cells, leading to normal retinal vascular development.107 In the absence of norrin, ganglion cells in the retina may degenerate, leading to massive gliosis, as is seen in ND. Alternatively, norrin may be involved in the differentiation or maintenance of ganglion cells. Additional information about the function of norrin may result from ongoing experiments identifying the additional components of the molecular pathway involving the norrin gene. |
OCULAR ALBINISM | |||
Albinism refers to a heterogeneous group of disorders characterized by
hypopigmentation. Two general forms of albinism are recognized: oculocutaneous
and ocula. In oculocutaneous albinism, the eye, skin, and hair
manifest the phenotypic abnormalities; in ocular albinism, only the
eye manifests the phenotype. Four types of ocular albinism have been described.82 Three of these are X-linked and are discussed here: ocular albinism
type 1 (Nettleship-Falls), ocular albinism with
late-onset sensorineural deafness , and ocular albinism type 2 (Aland
Island eye disease). OCULAR ALBINISM TYPE 1 (NETTLESHIP-FALLS TYPE) The most common type of ocular albinism is type 1 (OA1), with an incidence of 1:50,000 to 1:150,000 live births.82 Individuals with OA1 exhibit reduced visual acuity (typically 20/100 to 20/200), nystagmus, photophobia, strabismus, and reduced stereoacuity.114 Ophthalmic signs of the disease include hypopigmentation of the retina, foveal hypoplasia, and iris transillumination (Figs. 8, 9, and 10). It is estimated that the cone density of the central retina is reduced, with cones spaced three or four times further apart than in the normal fovea. Cutaneous changes are minimal in OA1, with only mild hypopigmentation of the skin in rare cases. Visually evoked potential (VEP) testing exhibits a nonsymmetric pattern consistent with the misrouting of the optic fibers at the optic chiasm. Temporal retinal fibers, which would normally be routed ipsilaterally through the chiasm, cross in the chiasm to synapse in the contralateral geniculate nucleus. In patients with albinism, approximately 90% of all optic nerve fibers desiccate in the chiasm. This results in a loss of stereoscopic depth perception and the development of alternating suppression scotomas. Amblyopia does not develop in most cases because of the alternating quality of the scotomas. The ERG in OA1 is typically normal, although a supranormal wave pattern may appear owing to the additional transcleral illumination due to lack of pigmentation. OA1 is a X-linked recessive disease, and therefore affected males show the complete phenotype. Carrier females may show minor signs of OA1, such as a mosaic pattern of depigmentation in the fundus and iris transillumination without other signs or symptoms of the disease. This mosaic pattern suggests the presence of X-inactivation in the female. The diagnosis of OA1 is made on the basis of classic findings on the ocular examination and a nonsymmetric pattern on VEP testing.115
Ocular melanocytes are relatively dormant, with low rates of melanogenesis after fetal development. Normal melanocytes contain several melanosomes with small pigment granules. In contrast, skin biopsy of patients with OA1 may reveal melanocytes with macromelanosomes. A macromelanosome is a large organelle of a melanocyte that contains giant pigment granules. RPE cell melanocytes are also affected. The presence of macromelanosomes is not specific to ocular albinism116 but does help distinguish between OA1 and other types of ocular albinism.117 Macromelanosomes may represent abnormal growth of a single melanosome or the fusion of many normal melanosomes.118,119 In one histologic sample, each RPE melanocyte contained only one macromelanosome,118 implying that each macromelanosome was formed at the expense of normal melanosomes.120 Other studies have found a decreased number of normal melanosomes in the epidermis and RPE, supporting this theory.121 Although several hypotheses exist, the definitive etiology of macromelanosome formation is unknown. The OA1 gene has been isolated on the X chromosome at position Xp22.3 through linkage122 and mapping.123–125 The gene consists of 9 exons that transcribe a protein that is 404 amino acids in length, with several transmembrane domains.126 OA1 is an integral membrane glycoprotein that is melanocyte specific and, within the melanocyte, localizes to the late endolysosomal compartment that is destined for melanosome formation.127,128 The OA1 protein is hypothesized to be a member of the G protein–coupled receptors because of weak similarities to this class of proteins.127 OA1 is exclusively localized in intracellular organelles, perhaps transducing a lumen-to-cytosolic signal with a yet unidentified ligand.110 Its exact function in the melanosome and in the formation of a melanosome is yet unknown.129 There are two different hypotheses explaining the function of OA1. One theory stipulates that OA1 plays a pivotal role in melanosome sorting or trafficking.129 Proteins destined for melanosomes are thought to exit the endoplasmic reticulum, undergo further modification in the trans-Golgi network, and proceed to a melanosome via an endosomal compartment.130 Both melanosomal and lysosomal proteins share this preliminary pathway until the branch point to their respective organelles,131–133 and OA1 is hypothesized to control the branch point to the melanosome. RPE cells have more lysosomal activity than skin cells because they constantly degrade the shedded tips of the photoreceptor outer segments. Therefore, this model may explain why the eyes are more severely affected than the skin in OA1. The second hypothesis for the function of OA1 is that of a sensor of melanin or melanosomal maturity. Mutations in OA1 would, therefore, explain the formation of macromelanosomes. Unsensed melanin may also inhibit RPE cell growth,134,135 which may in turn alter retinal maturation. This would not explain the optic nerve misrouting, because developmental models have shown that macromelanosomes have not developed when the first retinal axons enter the chiasm, suggesting that macromelanosomes have no effect on the neural pathway of retinal axons through the chiasm.129 Future studies must determine the downstream effector function of OA1 and the identity of a ligand for OA1 if applicable. Several mutations of OA1 have been identified.117, 136–143 These mutations include large deletions and missense substitutions that are located in the central coding region or infrequently in the region corresponding to the N-terminus of the OA1 protein. The mutations have been divided into three main classes.120 Class I mutations have gene product retained in the endoplasmic reticulum and include the missense mutations of the N-terminus, G35D, and L39R.13 Class II mutations include D78V, G84R, C116R, G118E, A173D, and W292G.140 These gene products are retained in late endosomes in addition to the endoplasmic reticulum. Finally, class III mutations, W133R, A138V, S152N, T232K, and E235K, localize to the late endosome/lysosome compartment similar to the nonmutated OA1 gene product.139 As yet, no clear correlation between genotype and phenotype has emerged.143 Further study of these mutations may begin to providegreater understanding of OA1 function and may provide data for therapeutic options following prenatal diagnosis. ALBINISM WITH LATE-ONSET SENSORINEURAL DEAFNESS Another type of ocular albinism is ocular albinism with late-onset sensorineural deafness. This entity has been described in a large African kindred.144 The ocular features are similar to those of OA1, with hypopigmentation of the fundus. Skin biopsy reveals macromelanosomes in affected patients and carriers. There is abnormal misrouting of the optic nerve fibers similar to OA1. Deafness is moderately severe by mid-adulthood. The disease is linked to Xp22.3.145 This entity has been proposed to be an allelic variant of OA1. ALAND ISLAND EYE DISEASE (OCULAR ALBINISM TYPE 2) Another entity that has been classified as X-linked ocular albinism is ocular albinism type 2 or Aland Island eye disease (AIED), also known as Forsius-Erikkson-Miyake syndrome. AIED is characterized by reduced visual acuity, nystagmus, protanomalous color blindness, axial myopia, reduced dark adaptation, hypoplasia of the fovea, and variable hypopigmentation of the fundus.146 The condition may be mildly progressive until early adulthood. Unlike OA1, in AIED, ERG testing characteristically reveals a preserved A wave and a strongly reduced B wave in scotopic conditions. This is referred to as a negative ERG. There is no demonstrable misrouting of the visual pathways on VEP testing and no macromelanosomes are seen on skin biopsy. In fact, the classification of AIED as a type of ocular albinism is in question.147,148 Many of the its features are shared with incomplete congenital stationary night blindness (CSNB), and AIED has been suggested to be a variant of CSNB.147 CSNB is a group of disorders characterized by reduced visual acuity, impaired dark adaptation, nystagmus, and various degrees of rod dysfunction. CSNB also exhibits a negative ERG. AIED has been localized to Xp11.3-p11.22 through linkage analysis.147,148 No candidate gene has been isolated. One form of CSNB also maps to a location inclusive of the AIED region. Identification of the gene responsible for AIED may clarify the relationship between AIED and CSNB. SUMMARY The diagnosis and appropriate classification of ocular albinism requires careful characterization of the ocular findings, ERG analysis, VEP testing, and possible skin biopsy. In the future, genetic screening tests may clarify the diagnosis as well. |
RETINITIS PIGMENTOSA | ||
Retinitis pigmentosa (RP) is a neurodegenerative disease of the
retina. It is a relatively common retinal disorder with an incidence
of 1 in 3500.149 Patients present with symptoms of night blindness, then progressive mid-peripheral
visual field loss, and finally decreased central visual
acuity that can lead to blindness. Clinically, RP is characterized
by retinal pigment granules in perivascular clusters called bone-spicules (Fig. 11). The majority of the fundus is depigmented. Accompanying signs include
attenuation of the retinal vessels and optic nerve head pallor150 (Fig. 12). The ERG, which reveals reduction or complete loss of patterns, can
identify patients before any signs or symptoms of the disease occur. No
patient with a normal ERG at age 6 has been reported to subsequently
develop RP.151 ERG can also be used to identify female carriers. Typical rod-cone
degeneration underlies this disorder, although a small number of families
exhibit cone-rod dystrophy.152 Apoptotic cell death of the photoreceptors is the final common pathway
of RP.153
RP can be inherited in autosomal dominant, autosomal recessive, mitochondrial, and X-linked patterns. Over 30 different loci for RP have been mapped or cloned. X-linked RP accounts for 6% to 17% of familial cases154 and is clinically more severe than other types of RP, with earlier onset and rapid progression. Often, severe visual impairment occurs by age 30 to 40.155 X-linked RP is generally nonsyndromic, with rod-cone degeneration, but a few cases have been reported with associated deafness, cone-rod dystrophy, and abnormalities in the respiratory cilia. X-linked RP was initially identified by linkage studies to X chromosome markers DXS7156 and OTC.157 Subsequent linkage analysis revealed two different loci for X-linked RP: RP2 and RP3.158–160 Recently, three additional loci for X-linked RP have been identified: RP6,161 RP23 on Xp22,162 and RP24 on Xq26-27.163 RP3 has been estimated to account for 56% to 90% of X-linked RP, and RP2 for 10 to 25%. RP2 was cloned to Xp11.23.164 The RP2 gene is composed of 5 exons encoding a ubiquitously expressed protein 350 amino acids in length. The N-terminus of the protein is homologous to tubulin-specific chaperone cofactor C, which is is involved in beta-tubulin folding. Most of the mutations in RP2 are in the cofactor C–like domain and result in a truncated protein.164,165 The exact function of RP2 is unknown. The remaining residues of the RP2 protein show similarities to a microtubule-associated protein and the nucleoside dephosphate kinase family.166 The protein is localized to the plasma membrane of photoreceptors, suggesting that it is a membrane- or tubulin-associated signaling protein.167 RP3 was mapped to Xp21.1 in a gene called the retinitis pigmentosa guanosine triphosphatase (GTPase) regulator, RPGR.168–170 RPGR consists of 19 exons. Thirty-nine different polymorphisms exist in the gene that do not result in RP. Transcriptional studies have revealed extensive alternative splicing of RPGR, further complicating analysis.171,172 It appears that exons 1-14 and alternative 3'-terminal exon ORF15 are essential for function of RPGR in the retina. The gene product is 815 amino acids in length and contains a domain homologous to RCC1, a guanine nucleotide exchange factor for the GTPase Ran. This RCC1-like portion is coded by exons 1-10. The function of RPGR is unknown. RCC1 domains may have guanine nucleotide exchange factor activity for small GTPases.173,174 Therefore, RPGR may be an exchange factor for an unknown GTPase.175 Two proteins have been identified that may interact with RPGR, phodiesterase delta subunit,176,177 and a new protein called RPGRIP1.177–179 In one study, RPGR was localized to rod, but not cone, outer segments as well as to the cilia of the retina.179 Another study found that RPGR was localized to rod and cone photoreceptor cilia, but not to the outer segments. RPGRIP1 also localizes to the cilia of rod and cone outer segments. It may anchor RPGR to the cilia.177 The photoreceptor outer segments connect with the inner segment via a cilium, which contains nine pairs of microtubules and a basal body. RPGR may be vital to the function of the cilium. Ciliary abnormalities may explain the associated finding in RP, including hearing loss due to kinociliary abnormalities in the cochlea.180 RPGR has been shown to have relatively ubiquitous expression. Because most X-linked RP has manifestations confined only to the retina, the possibility of a retina-specific transcript exists.171 Exon ORF-15 appears to be preferentially expressed in the retina. Alternative splicing could lead to mutated RPGR expressed only in the retina. Interestingly, RPGR or its associated proteins may also affect other retinal disorders such as Leber's congenital amaurosis and X-linked cone dystrophy.181,182 Seventy-seven different mutations have been identified in RPGR.183 The vast majority of mutations have been found in single families, suggesting a high rate of new mutation.184 Thirty-five percent of the mutations are single amino acid substitutions that result in missense or nonsense mutations. Deletions or insertions that result in frameshift mutations account for 43% of the mutations reported, and the remaining mutations are splice site mutations.175 The exon ORF-15 is often implicated in mutations.185,186 No mutations have been reported in exons 16 through 19. There is no distinct correlation between genotype and clinical severity of RP in RP3 or RP2. One study did reveal that patients with specific RPGR mutations in RP3 have smaller visual fields and more severely reduced ERG amplitudes,187 but other studies find no significant difference.188,189 An animal model for RP3 was created that is RPGR deficient.190 The animals display the clinical characteristics of RP. This model may allow clarification of the extent of RP loci on the X-chromosome and the role of RPGR. No animal model for RP2 exists as yet. Currently, the high rate of novel mutations in RPGR complicates the use of molecular genetics for diagnostic screening. Future studies are needed to fully identify the function and interactions of RPGR as well as RP2. The identification of new loci on the X chromosome involved in X-linked RP should help to explain the intricacies of this disease. |
X-LINKED CATARACTS |
Congenital cataracts are one of the major causes of childhood blindness.1 The etiology of congenital cataract formation includes metabolic disorders, environmental
influences, infectious causes, and hereditary disorders.191 Hereditary congenital cataracts can present as an isolated anomaly, as
part of a generalized ocular development disorder, or as a component
of a multisystem syndrome. As an isolated entity, congenital cataracts most commonly present as a bilaterally disorder with an autosomal dominant inheritance pattern.192 Isolated X-linked recessive cataracts have also been described.82,193,194 In a recent series, X-linked cataracts accounted for 10% of the pedigrees encountered in an Australian hospital.195 X-linked cataracts begin with opacification of the posterior Y suture of the lens. The opacification may progress through the lamellar region of the lens, leading to total lens opacity causing visual impairment.196 X-linked cataracts may also be associated with microcornea and microphthalmos.197 Female carriers may reveal nonvisually significant opacities within the Y suture of the lens. The gene associated with this isolated X-linked cataract has not yet been identified, although linkage studies indicate that a cataract locus may exist within the region Xp22.3-p21.1.198 Fifteen genes involved in cataract formation have been isolated.198 These genes reside on numerous chromosomes and encode for proteins involved in alpha, beta, and gamma crystalline protein formation (major constituents of the lens), membrane proteins (such as gap-junctions), cytoskeletal proteins, proteins involved in coordinating gene activity within cells (PAX6), and others.192 The genes isolated on the X-chromosome are associated with two X-linked recessive syndromes in which cataracts are a prominent feature, the oculocerebrorenal syndrome of Lowe (OCRL) and Nance-Horan syndrome (NHS). OCRL is characterized by bilateral congenital cataracts, mental retardation, and renal dysfunction and failure.199 OCRL is also associated with aminoaciduria, Vitamin D–resistant rickets, muscular hypotonia, dwarfism, and congenital glaucoma.200 Opacification of a small lens that lacks differentiation into cortex and nuclear components results in cataracts. Carrier females may have punctate posterior cortical opacities. The gene responsible for OCRL, (OCRL1), is located at Xq25-26 and contains 24 exons.201 OCRL1 encodes an inositol polyphosphate 5-phosphatase that hydrolyzes water-soluble and lipid inositol polyphosphate substrates. Two domains, involved in substrate binding and catalysis, characterize the inositol 5-phosphatases.202 The exact mechanism by which the OCRL1 protein results in cataract formation is unknown. Fifty-eight mutations of OCRL1 have been described in the literature.203 The majority of these mutations lead to a truncated protein product. Almost 70% of reported mutations include splice-site mutations, deletions, and insertions that result in frameshift, leading to a premature stop codon. Twenty-eight percent of mutations are missense mutations, and the remainder are in-frame deletions. The mutations are not uniformly distributed in the gene. Base pair mutations occur in the 3' portion of the gene, and deletions occur n the 5' portion within exons 1-8. Twenty percent of families with OCRL have a mutation in exon 15, which influences screening strategies to identify mutations. Sporadic cases with new mutations are frequently observed.204 Sporadic mutations must therefore be taken into account regarding genetic counseling of families.203 Another X-linked recessive syndrome associated with cataracts is the Nance-Horan syndrome (NHS). NHS is characterized by severe congenital cataracts, crown-shaped anomalies of the permanent teeth, wide spacing of the teeth, evocative facial features, and mental impairment.205,206 The cataracts involve the fetal nucleus, posterior Y suture of the lens, and zonular extensions into the posterior cortex.207 Microcornea or microphthalmia may also be associated. Carrier females may have thin posterior Y suture opacities. Through linkage analysis, the gene for NHS has been localized to the Xp22.31-p22.13 region.208–211 This is the same region as the isolated X-linked cataract loci, and this implies that the two are synonymous or closely related. Several diseases with similar features have been mapped to the region that coincides with NHS, including oral-facial-digital syndrome and X-linked mental retardation, suggesting that these disease entities may be allelic with NHS. No candidate gene for NHS has yet been identified. However, a mouse model for NHS, Xcat, has revealed possible candidate genes.212,213 The order of genes in the Xp22.31-p22.13 region in humans and the equivalent region in the mouse is relatively conserved. In the mouse model, the candidate genes for Xcat includes a connexin gap-junction protein and a gastrin-releasing peptide receptor. The latter is a neurotransmitter and growth factor receptor. The genetic recombination data supports the hypothesis that NHS results from various molecular defects in a single gene. Cataracts are described in multiple other X-linked disorders, indicative of the complex collection of proteins and signals involved in normal lens development. The exact number of genes involved in congenital cataract development is unknown. Further research should continue to reveal information to better understand this process. Current treatments remain based on early surgical extraction of visually significant cataracts, with treatment of amblyopia as applicable. |
X-LINKED JUVENILE RETINOSCHISIS | |
X-Linked juvenile retinoschisis (XLJRS) is a bilateral
vitreoretinal degeneration characterized by splitting of the retina at
the level of the nerve fiber layer. The incidence of XLJRS varies between 1:5000 to 1:30,000.214,215 The disease presents with decreased visual acuity of 20/40 to 20/60 in
young boys between 4 and 8 years of age. Progressive visual loss continues
for the first two decades of life. The visual acuity stabilizes
until the fifth to sixth decade, when it is again reduced with the onset
of macular degeneration-like changes.216 Final visual acuity is typically reduced to 20/100, although reports range
from 20/25 to light perception. The diagnosis of XLJRS is made by
a combination of factors, including the clinical appearance, ERG patterns, and
more recently genetic analysis.217 Spoke-like cystic lesions in the macula representing foveal schisis are the classic initial retinal manifestation (Fig. 13). Fifty percent of affected patients also have peripheral schisis cavities.215 Patients with XLJRS may also manifest the following posterior pole findings: a golden-white fundus reflex,218 RPE hypertrophy, vitreous veils, and congenital vascular veils. Hyperopic astigmatism, posterior subcapsular cataracts, and strabismus may also be associated findings.219 Retinal detachments and vitreous hemorrhages are rare complications of peripheral schisis cavities and unsupported retinal vessels in the inner schisis layer.215 Although cases with the classic spoke-like cystic lesions are easily diagnosed, those lacking this feature present clinical difficulties, especially in the absence of a familial X-linked recessive hereditary pattern. Carrier females have no specific retinal abnormalities, further complicating identification of hereditary patterns.
The ERG is a useful tool in diagnosis. The classic dark-adapted ERG demonstrates a reduction in the B-wave amplitude with a preserved A-wave amplitude. The B-/A-wave ratio is reduced to less than 1.0. In severe XLJRS, the A wave may also be reduced. In some cases, the 30 Hz–flicker ERG may reveal a prolonged implicit time as well.220 Fluorescein angiography initially shows a normal vascular pattern without evidence of leakage from the spoke-like cystic changes in the macular region.221 In later life, the fluorescein angiogram reveals hyperfluorescence in the areas of RPE defects through the macula.222 The gene causing XLJRS has been identified on the X chromosome Xp22.2.223 The gene, XLRS1 (also referred to as RS1), has six exons, which range in size from 26 to 196 base pairs. Because the degree of heterogeneity in the clinical appearance can lead to difficulties with diagnosis, and the XLRS1 gene is small in size, direct sequencing of the gene can aid in the diagnosis.217 The XLJRS1 gene encodes a 224-amino acid protein called retinoschisin expressed exclusively in the retina.223 Retinoschisin has a discoidin domain that is found in the family of cell-cell adhesion proteins. The discoidin domain is encoded in exons 4-6. Retinoschisin also has a leader sequence that labels it for secretion from the cell. It is hypothesized to play a key role during retinal development.224 Retinoschisin is thought to be expressed and assembled in photoreceptors and bipolar cells as a disulfide-linked oligomeric protein complex.225 As yet, the exact role of retinoschisin in the pathogenesis of XLJRS is unknown. Several theories have been proposed regarding the pathogenesis of XLJRS. Prior to the discovery of the gene for XLJRS, histologic and electrophysiolog analysis suggested a defect in the Müller cells.226–228 Histologic samples revealed marked splitting of the inner nuclear layer of the retina, overall disorganization of the retinal cell layers with irregular displacement of cells, and late degeneration of the photoreceptors.226 Müller cells are the principal glial cell of the retina and play an important role in the structural integrity of the macula. Müller cells, along with bipolar cells, are important in the generation of the B wave. Müller cells also regulate the extracellular potassium concentration in the retina. Excessive potassium in the retina may cause the golden-white fundus reflex. With the discovery of XLRS1, theories of the pathogenesis of XLJRS havefocused on the cell-cell adhesion properties of retinoschisin. Patients with XLJRS lack normal functioning retinoschisin. In the absence of this adhesion property, schisis cavities are predicted to form.229 Residual radial septa in the macula would account for the spoke-like cystic cavities in the initial stages of the disease. With time, the septa break down, resulting in a schisis cavity in the macula. RPE changes beneath the cystic cavity result in the macular degeneration–like changes seen later in life. The exact location of retinoschisin in the retina is controversial. All in vitro evidence suggests that retinoschisin is only expressed in photoreceptors and bipolar cells.225,230 It is unclear, however, if the retinoschisin remains on the surface of photoreceptor and bipolar cells or if it is transported directly by Müller cells.225,231,232 The location on the surface of photoreceptors and bipolar cells could stabilize the association of the extracellular matrix and these cells.225 The expression in the bipolar cells could also account for the ERG findings.225 On the other hand, other in vitro evidence indicates that retinoschisin is taken up and transported in a direction-specific manner by Müller cells, implying that Müller cells are important in the pathogenesis.232 Finally, retinoschisin is found in high concentration at photoreceptor synapses Failure to maintain synaptic connections could also lead to photoreceptor death.233 Further studies should continue to elucidate the role of retinoschisin and identify the key retinal cell involved. One hundred and twenty-five independent mutations have been identified in XLRS1.233 Mutations occur in all six exons, but the majority occur in exons 4, 5, and 6. These exons encode the discoidin domain important for cell-cell adhesion properties. The most common type of mutations includes missense and nonsense mutations, followed by frameshift mutations involving insertions or deletions of genetic codes. Nine splice site nucleotide substitution mutations have also been identified. As yet, no clear link has been established between disease severity and mutation type or location.234 Even within families with the same mutation, fundus variation and disease severity vary markedly. Currently, the genetic information about XLJRS is used for diagnosis of clinically equivocal cases as well as for carrier state detection. Pretest counseling is recommended to weigh the impact of carrier state detection or diagnosis in asymptomatic individuals on the emotional health of the patient and family. Furthermore, the impact of this information on issues of health care insurance or employability needs to be addressed prior to molecular diagnosis. Further studies are needed to identify the key pathologic events that lead to XLJRS before treatment strategies can be designed. |
FUTURE DIRECTIONS |
Molecular genetics has furthered the understanding of several X-linked ocular diseases. Carrier recognition and prenatal diagnosis are already possible for several diseases. Nevertheless, lack of correlation between genotype and phenotype and limitations in the application of understanding the gene product remain areas of active research. Phenotype may be affected by other genetic factors not yet identified or by environmental influences. Gene therapy in ocular disease is still theoretical. Perhaps the further identification of genes involved in ocular diseases and characterization of gene products may provide new insights on treatment strategies, with the possibility of preventing visual loss in the future. |
